Запчасти Case 1450 (306[1]) - R40053 3 SPOOL VALVE LOADER WITH RIPPER OR 4-IN-1 BUCKET (08) - HYDRAULICS

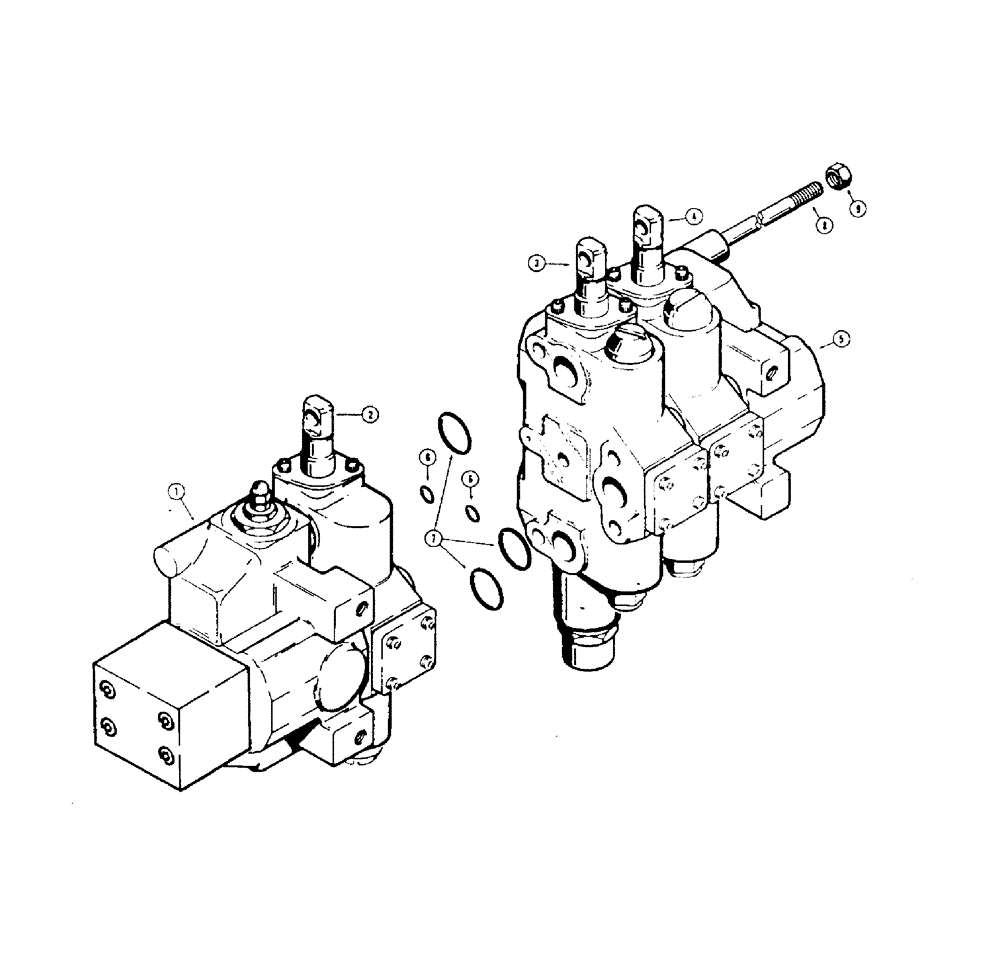

Схема запчастей Case 1450 - (306[1]) - R40053 3 SPOOL VALVE LOADER WITH RIPPER OR 4-IN-1 BUCKET (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

R40053

VALVE

VALVE - Cross no. 6LR 003-250127

1шт.

1

D80330

NO LONGER SERVICED

INLET AND OUTLET SECTION - parts list Figure 312

1шт.

2

D80331

VALVE

TILT SECTION - parts list Figure 322

1шт.

3

D80332

VALVE

LIFT SECTION - parts list Figure 326

1шт.

4

R40790

SEGMENT

RIPPER, CLAM OR AUXILIARY SECTION - parts list Figure 320

1шт.

5

R40789

PLATE

COVER

1шт.

6

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

O-RING - small

5шт.

7

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

O-RING - large

15шт.

8

R40791

TIE-ROD

ROD - 7/16" - 14 NC x 10-1/2"

4шт.

9

25-117

NUT,7/16"-20, G5

NUT - hex, 7/16" - 14 NC

4шт.

Выбрано товаров: 10
