Запчасти Case 1450 (302) - R38200 2 SPOOL VALVE, STANDARD LOADER MODELS (08) - HYDRAULICS

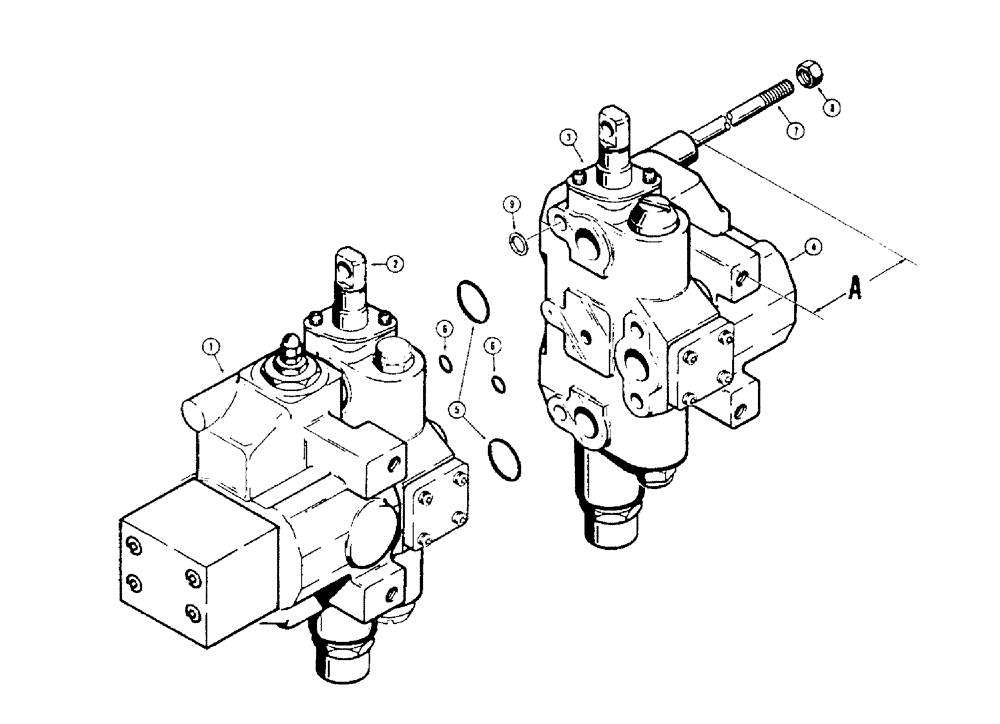

Схема запчастей Case 1450 - (302) - R38200 2 SPOOL VALVE, STANDARD LOADER MODELS (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

R38200

VALVE

- Cross no. 6LR 002-250102, Includes: Ref. 1 - 8

14шт.

Order R40052 for complete valve replacement. Also order R40578 tube, R40580 tube, R40581 tube and R40583 tube.

1шт.

1

D65198

NO LONGER SERVICED

INLET AND OUTLET SECTION - parts list Figure 312

1шт.

2

D75923

X

BUCKET SECTION - parts list Figure 322

1шт.

Service with D80331 section, R40580 and R40579 tubes.

1шт.

2

D80331

VALVE

BUCKET SECTION - parts list Figure 322

1шт.

3

D77549

ELEMENT

LIFT SECTION - parts list Figure 326

1шт.

Service with D80332 section, R40789 cover, (4) D80333 bolts, R40581 and R40583 tubes.

1шт.

3

D80332

VALVE

LIFT SECTION - parts list Figure 326

1шт.

4

R38536

PLATE ASSY.

COVER - 2-15/16" (75 mm) at A

1шт.

4

R40789

PLATE

COVER - 1-15/16" (49 mm) at A

1шт.

5

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- small

6шт.

6

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- large

9шт.

7

R30971

BOLT

ROD - 7/16" - 14 NC x 9-1/8", used with R38536 cover

4шт.

7

D80333

TIE-ROD

ROD - 7/16" - 14 NC x 8-1/8", used with R40789 cover

4шт.

8

25-117

NUT,7/16"-20, G5

- hex, 7/16" - 14 NC

4шт.

Выбрано товаров: 16
