Артикул
Название
Примечание
Количество
R28050

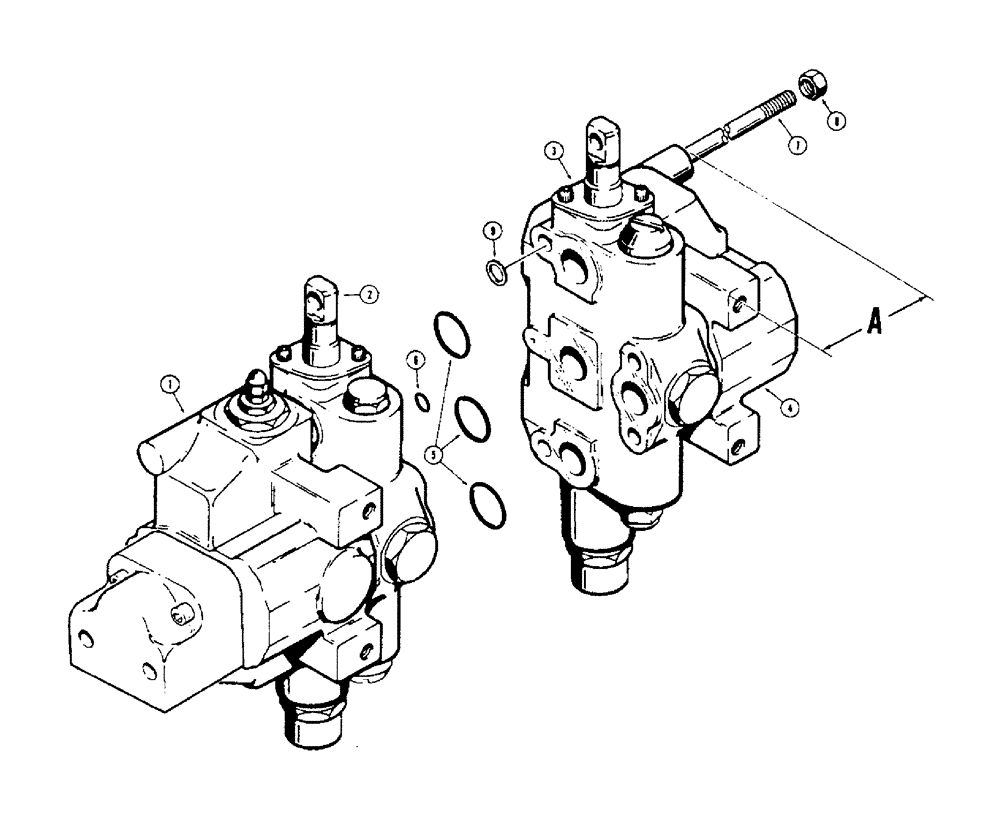

VALVE - Cross no. 6LR 002-250026, Includes: Ref. 1 - 9
1шт.
Order R40052 for complete valve replacement. Also order R40578 tube, R40580 tube, R40581 tube and R40583 tube.
1шт.
1
D65198
NO LONGER SERVICED
INLET AND OUTLET SECTION - parts list Figure 312
1шт.
2
D65199
VALVE BLOCK
BUCKET SECTION - parts list Figure 322
1шт.
Service with D80331 section, R40580 and R40578 tubes.
1шт.
2
D75923
X
BUCKET SECTION - parts list Figure 322
1шт.
Service with D80331 section, R40580 and R40578 tubes.
1шт.
2
D80331
VALVE
BUCKET SECTION - parts list Figure 322
1шт.
3
R31140
LIFT SECTION - parts list Figure 324
1шт.
Service with D80332 section, D31409 O-ring, R40789 cover, (4) D80333 bolts, R40581 and R40583 tubes.
1шт.
3
D77549
ELEMENT
LIFT SECTION - parts list Figure 326
1шт.
Service with D80332 section, D31409 O-ring, R40789 cover, (4) D80333 bolts, R40581 and R40583 tubes.
1шт.
3
D80332
VALVE
LIFT SECTION - parts list Figure 326
1шт.
4
R30841
PLATE
COVER - 2-15/16" (75 mm) at A, uses 1 small O-ring
1шт.
4
R38536
PLATE ASSY.
COVER - 2-15/16" (75 mm) at A, uses (2) small O-rings
1шт.
4
R40789
PLATE
COVER - 1-15/16" (49 mm) at A
1шт.
5
R30990
O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro
- large
12шт.
6
D31409
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
- small
3-6шт.
7
R30971
BOLT
ROD - 7/16" - 14 NC x 9-1/8", used with R30841 and R38536 covers
4шт.
7
D80333
TIE-ROD
ROD - 7/16" - 14 NC x 8-1/8", used with R40789 cover
4шт.
8
25-117
NUT,7/16"-20, G5
- hex, 7/16" - 14 NC
4шт.
9
R38250
SHIM,.002" Thk
4 per section (.0508 mm) .002" Thk
1шт.
Выбрано товаров: 22
