Запчасти Case 1450 (300[1]) - R34695 2 SPOOL STANDARD LOADER MODELS (08) - HYDRAULICS

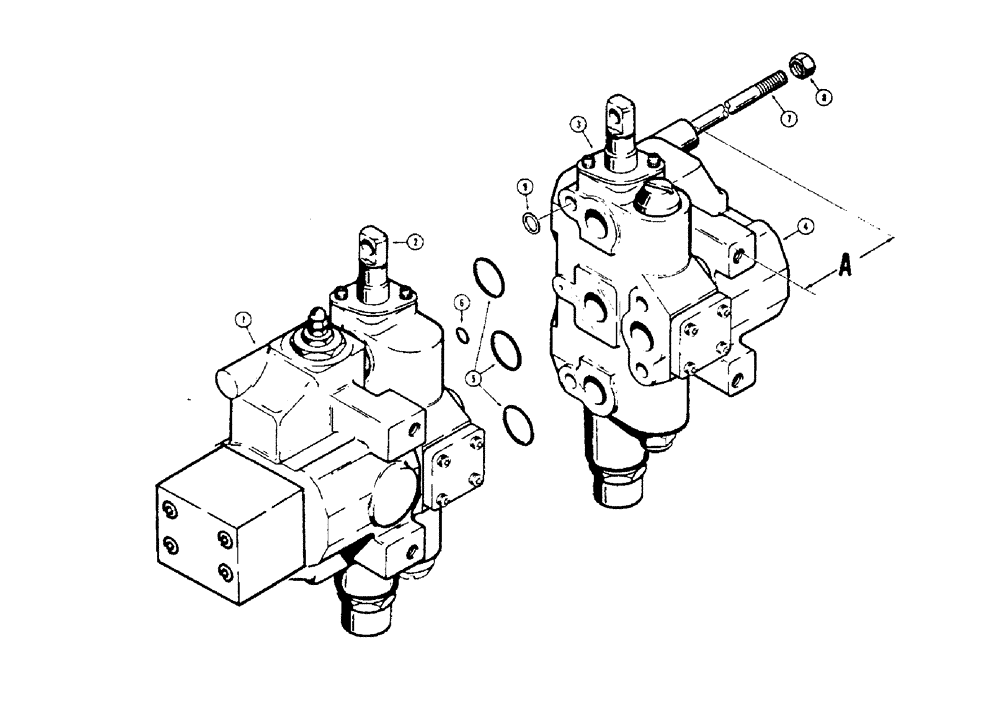

Схема запчастей Case 1450 - (300[1]) - R34695 2 SPOOL STANDARD LOADER MODELS (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

R34695

SPARE PART VALVE - Cross no. 6LR 002-25006, Includes: Ref. 1 - 9

1шт.

Order R40052 for complete valve replacement. Also order R40578 tube, R40580 tube, R40581 tube and R40583 tube.

1шт.

1

D65198

NO LONGER SERVICED

INLET AND OUTLET SECTION - parts list Figure 312

1шт.

2

D65199

VALVE BLOCK

BUCKET SECTION - parts list Figure 322

1шт.

Service with D80331 section, R40580 and R40578 tubes.

1шт.

2

D75923

X

BUCKET SECTION - parts list Figure 322

1шт.

Service with D80331 section, R40580 and R40578 tubes.

1шт.

2

D80331

VALVE

BUCKET SECTION - parts list Figure 322

1шт.

3

R31140

SPARE PART LIFT SECTION - parts list Figure 324

1шт.

Service with D80332 section, D31409 O-ring, R40789 cover, (4) D80333 bolts, R40581 and R40583 tubes.

1шт.

3

D77549

ELEMENT

LIFT SECTION - parts list Figure 326

1шт.

Service with D80332 section, D31409 O-ring, R40789 cover, (4) D80333 bolts, R40581 and R40583 tubes.

1шт.

3

D80332

VALVE

LIFT SECTION - parts list Figure 326

1шт.

4

R30841

PLATE

COVER - 2-15/16" (75 mm) at A, uses 1 small O-ring

1шт.

4

R38536

PLATE ASSY.

COVER - 2-15/16" (75 mm) at A, uses 2 small O-rings

1шт.

4

R40789

PLATE

COVER - 1-15/16" (49 mm) at A

1шт.

5

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

O-RING - large

12шт.

6

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

O-RING - small

3-6шт.

7

R30971

BOLT

ROD - 7/16" - 14 NC x 9-1/8", used with R30841 and R38536 covers

4шт.

7

D80333

TIE-ROD

TIE ROD ROD - 7/16" - 14 NC x 8-1/8", used with R40789 cover

4шт.

8

25-117

NUT,7/16"-20, G5

NUT - hex, 7/16" - 14 NC

4шт.

9

R38250

SHIM,.002" Thk

4 per section (.0508 mm)

1шт.

Выбрано товаров: 22
