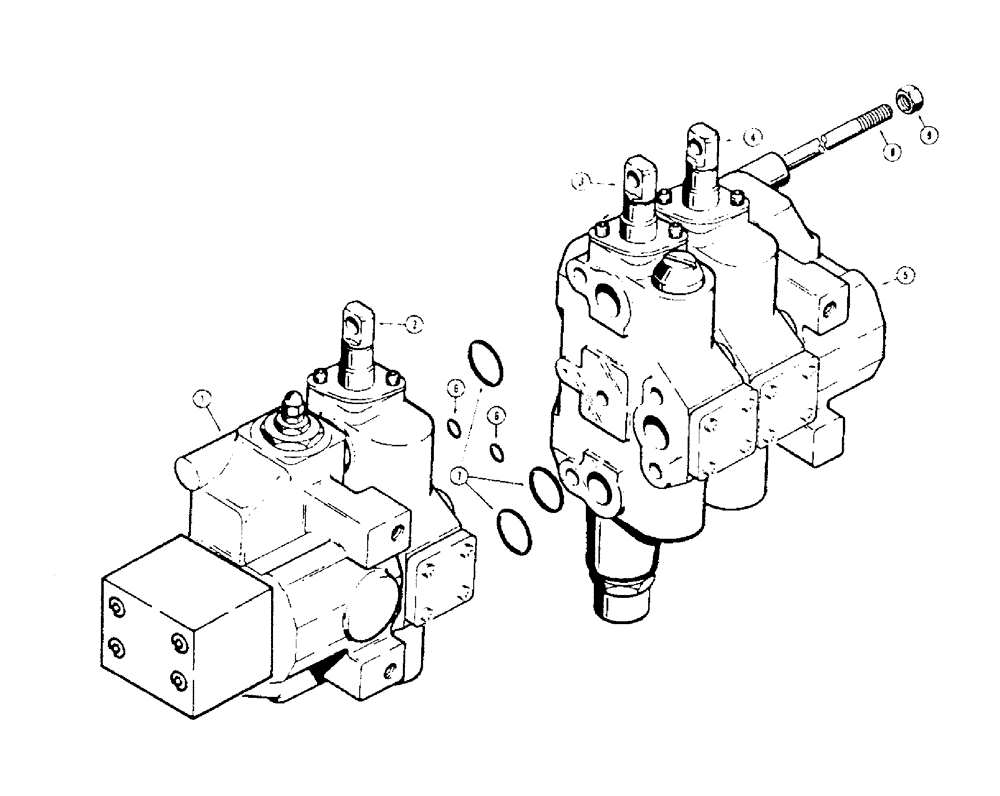

Запчасти Case 1450 (298) - R40462 3 SPOOL VALVE, ANGLE TILT PITCH DOZER (08) - HYDRAULICS

R40462

VALVE

- Cross no. 6LR 003-250136, Includes: Ref. 1 - 9

1шт.

1

D80366

VALVE

INLET AND OUTLET SECTION - parts list Figure 318

1шт.

2

D80365

VALVE

TILT SECTION - parts list Figure 318

1шт.

3

D80364

VALVE

LIFT SECTION - parts list Figure 316

1шт.

4

D80365

VALVE

PITCH AND ANGLE SECTION - parts list Figure 318

1шт.

5

R40789

PLATE

COVER

1шт.

6

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- small

8шт.

7

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- large

12шт.

8

R40791

TIE-ROD

ROD - 7/16" - 14 NC x 10-1/2"

4шт.

9

25-117

NUT,7/16"-20, G5

- hex, 7/16" - 14 NC

4шт.
