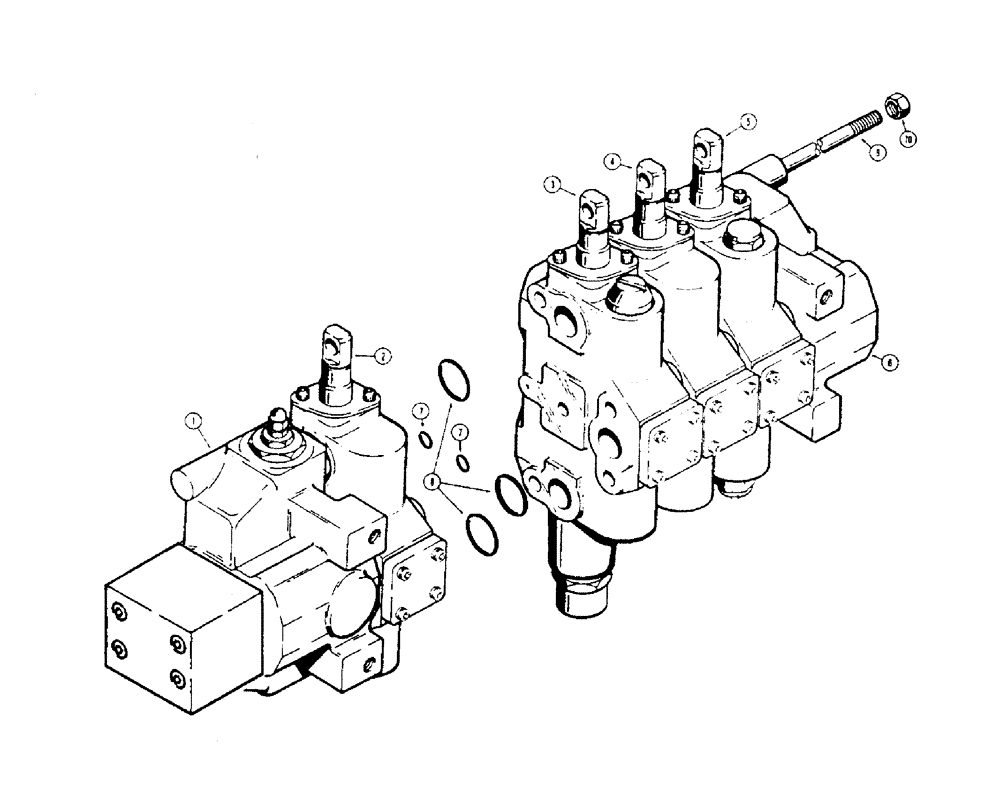

Запчасти Case 1450 (298[1]) - R40463 4 SPOOL VALVE ANGLE TILT PITCH DOZER WITH RIPPER (08) - HYDRAULICS

R40463

VALVE

VALVE - Cross no. 6LR 004-250137, Includes: Ref. 1 - 10

1шт.

1

D80366

VALVE

INLET AND OUTLET SECTION - parts list Figure 312

1шт.

2

D80365

VALVE

TILT SECTION - parts list Figure 318

1шт.

3

D80364

VALVE

LIFT SECTION - parts list Figure 316

1шт.

4

D80365

VALVE

SECTION - parts list Figure 318

1шт.

5

R40790

SEGMENT

AUXILIARY SECTION - parts list Figure 320

1шт.

6

R40789

PLATE

COVER

1шт.

7

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

O-RING - small

10шт.

8

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

O-RING - large

15шт.

9

R40792

TIE-ROD

ROD - 7/16" - 14 NC x 12-7/8"

4шт.

10

25-117

NUT,7/16"-20, G5

NUT - hex, 7/16" - 14 NC

4шт.
