Запчасти Case 1450 (288) - R38209 2 SPOOL VALVE TILT DOZERS (08) - HYDRAULICS

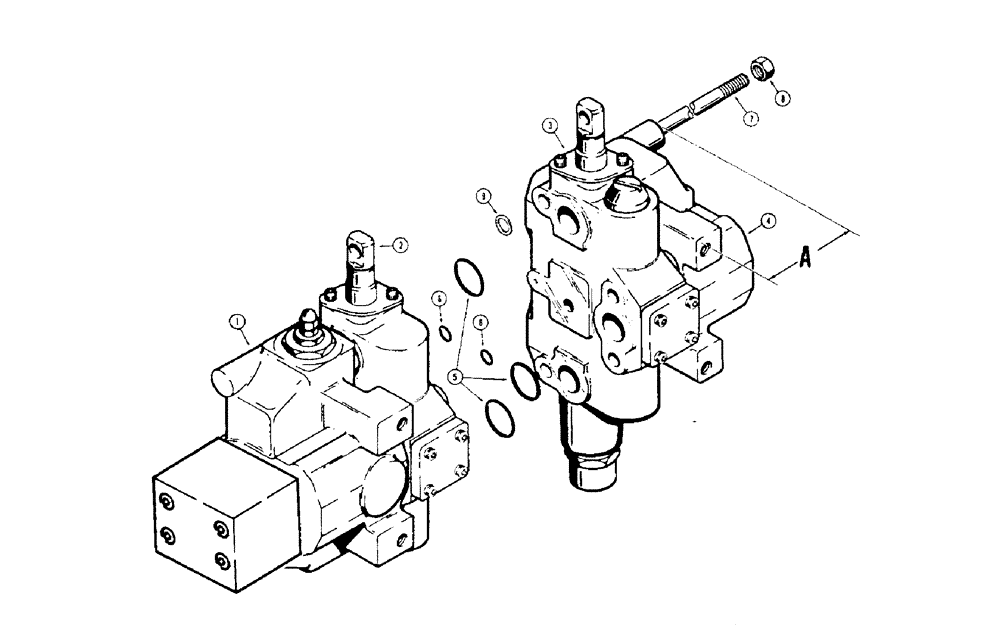

Схема запчастей Case 1450 - (288) - R38209 2 SPOOL VALVE TILT DOZERS (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

R38209

HYDRAULIC VALVE

VALVE - Cross no. 6LR 002-250105, Includes: Ref. 1 - 8

1шт.

Order R40274 for complete valve replacement. Also order R32185 tube, R32187 tube, R40320 tube and R40322 tube.

1шт.

1

D65195

X

INLET AND OUTLET SECTION - parts list Figure 312

1шт.

2

D75922

NO LONGER SERVICED

TILT SECTION - parts list Figure 318

1шт.

Service with D80365 section, R40326 tube and R40324 tube.

1шт.

2

D80365

VALVE

TILT SECTION - parts list Figure 318

1шт.

3

D75921

NO LONGER SERVICED

LIFT SECTION - parts list Figure 316

1шт.

Service with D80364 section, R31409 O-ring, R40789 cover, (4) D80333 bolts, R40322 tube and R40320 tube.

1шт.

3

D80364

VALVE

LIFT SECTION - parts list Figure 316

1шт.

4

R38536

PLATE ASSY.

COVER - 2-15/16" (75 mm) at A

1шт.

4

R40789

PLATE

COVER - 1-15/16" (49 mm) at A

1шт.

5

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- large

9шт.

6

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- small

6шт.

7

R30971

BOLT

ROD - 7/16" - 14 NC x 9-1/8", used with R38536 cover

3шт.

7

D80333

TIE-ROD

ROD - 7/16" - 14 NC x 8-1/8", used with R40789 cover

3шт.

8

25-1174

NUT - hex, 7/16" - 14 NC

3шт.

9

R38250

SHIM,.002" Thk

4 per section (.0508 mm) .002" Thk

1шт.

Выбрано товаров: 17
