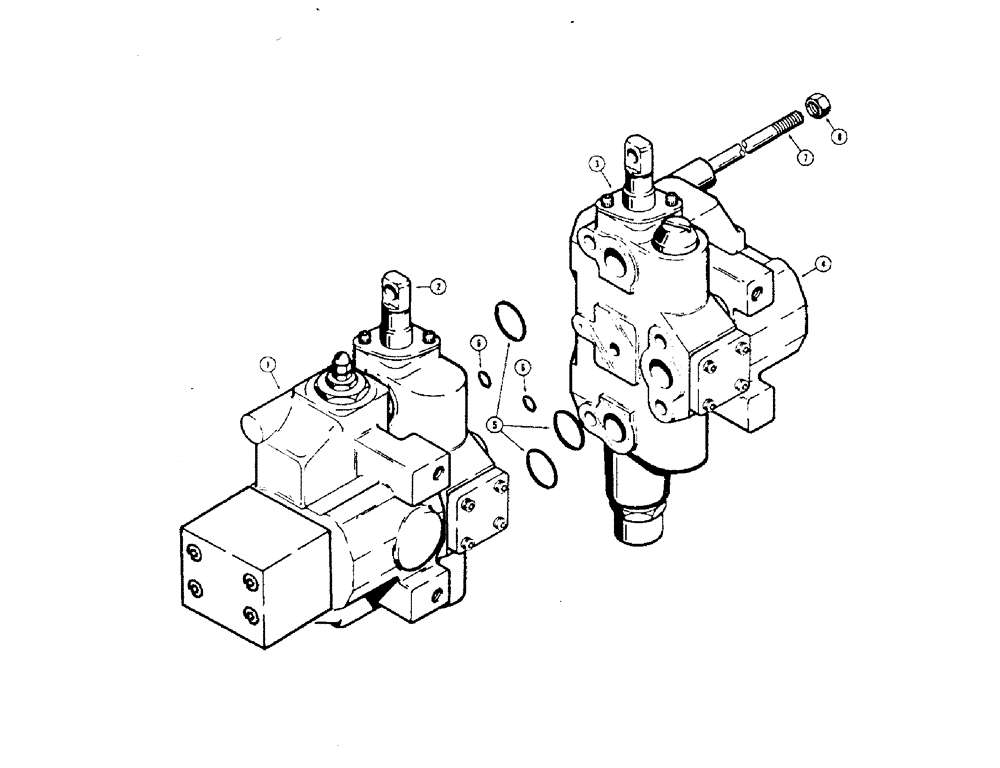

Запчасти Case 1450 (288[1]) - R40274 2 SPOOL VALVE TILT DOZERS (08) - HYDRAULICS

R40274

VALVE

VALVE - Cross no. 6LR 002-250133, Includes: Ref. 1 - 8

1шт.

1

D80366

VALVE

INLET AND OUTLET SECTION - parts list Figure 312

1шт.

2

D80365

VALVE

TILT SECTION - parts list Figure 318

1шт.

3

D80364

VALVE

LIFT SECTION - parts list Figure 318, R40274

1шт.

4

R40789

PLATE

COVER

1шт.

5

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

O-RING - large

9шт.

6

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

O-RING - small

6шт.

7

D80333

TIE-ROD

TIE ROD ROD - 7/16 - 14 NC x 8-1/8"

3шт.

8

25-1174

NUT - hex, 7/16" - 14 NC

3шт.
