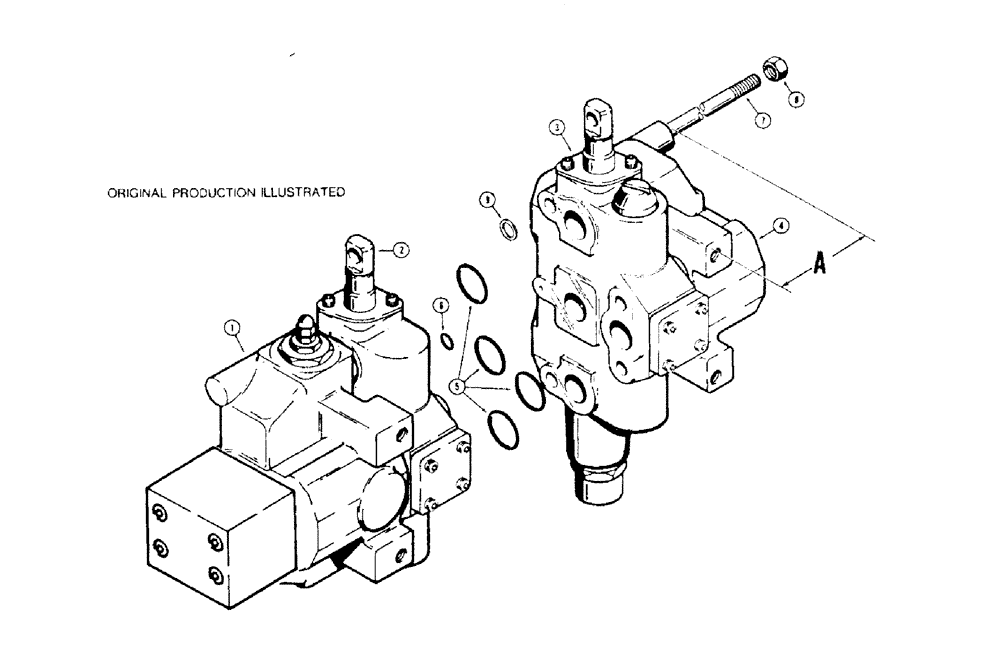

Запчасти Case 1450 (286[1]) - R34698 2 SPOOL VALVE TILT DOZER MODELS (08) - HYDRAULICS

R34698

SPARE PART VALVE - two spool, Cross no. 6LR 002-250016, Includes: Ref. 1 - 9

1шт.

Order R40274 for complete valve replacement. Also order R32185 tube, R32187 tube, R40320 tube and R40322 tube.

1шт.

1

D65195

X

INLET AND OUTLET SECTION - parts list Figure 312

1шт.

2

R30838

HYD VALVE SECTION

SECTION - parts list Figure 318

1шт.

Service with D80365 section, R40326 tube and R40324 tube.

1шт.

2

D75922

NO LONGER SERVICED

SECTION - parts list Figure 318

1шт.

Service with D80365 section, R40326 tube and R40324 tube.

1шт.

2

D80365

VALVE

SECTION - parts list Figure 318

1шт.

3

R30839

SPARE PART LIFT SECTION - parts list Figure 314

1шт.

Service with D80364 section, R31409 O-ring, R40789 cover, (4) D80333 bolts, R40322 tube and R40320 tube.

1шт.

3

D75921

NO LONGER SERVICED

LIFT SECTION - parts list Figure 316

1шт.

Service with D80364 section, R31409 O-ring, R40789 cover, (4) D80333 bolts, R40322 tube and R40320 tube.

1шт.

3

D80364

VALVE

LIFT SECTION - parts list Figure 316

1шт.

4

R30841

PLATE

COVER - 2-15/16" (75 mm) at A, uses 1 small O-ring

1шт.

4

R38536

PLATE ASSY.

COVER - 2-15/16" (75 mm) at A, uses 2 small O-rings

1шт.

4

R30789

HANDLE

COVER - 1-15/16" (49 mm) at A

1шт.

5

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

O-RING - large

12шт.

6

R31409

TUBE

O-RING - small

3-6шт.

7

R30971

BOLT

ROD - 7/16" - 14 NC x 9-1/8", used with R30841 and R38536 covers

3шт.

7

D80333

TIE-ROD

TIE ROD ROD - 7/16" - 14 NC x 8-1/8", used with R30789 cover

3шт.

8

25-1174

NUT - hex, 7/16" - 14 NC

3шт.

9

R38250

SHIM,.002" Thk

4 per section (.0508 mm)

1шт.
