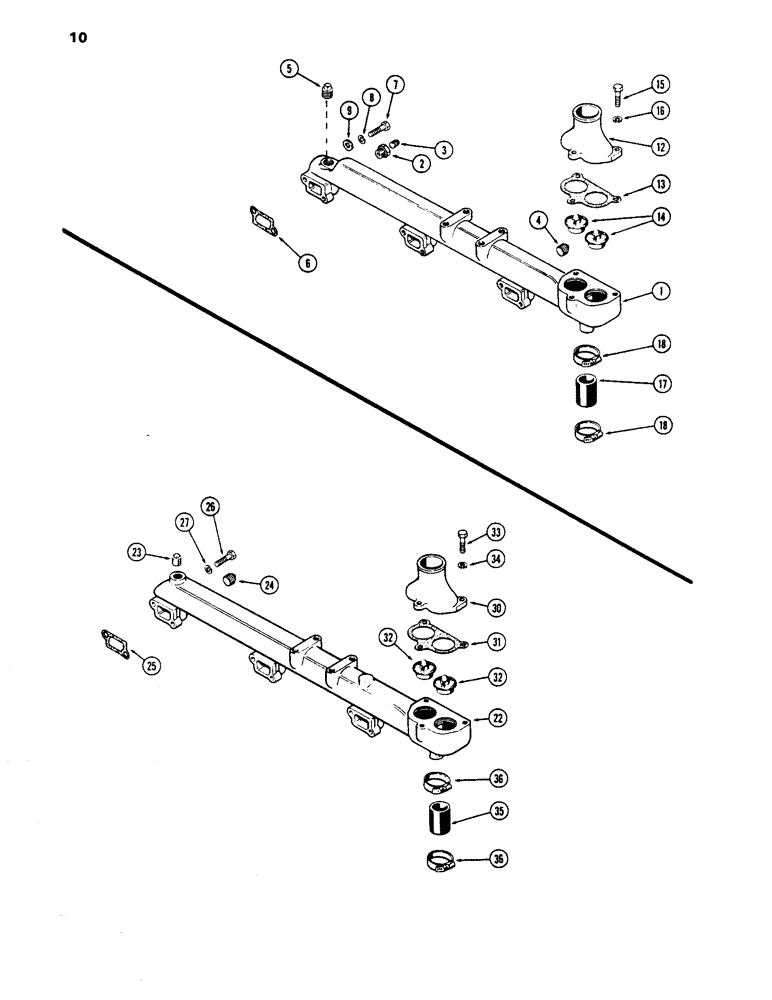

Запчасти Case 1450 (010) - WATER MANIFOLD AND THERMOSTAT, 504BDT DIESEL ENGINE (02) - ENGINE

A44088

MANIFOLD

ASSY. - water, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD

1шт.

2

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

BUSHING - reducing (3/4" P.T. to 3/8" P.T.)

1шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

- (3/8" P.T., hex. sckt. hd.)

1шт.

4

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - (3/4" P.T., hex. sckt. hd.)

1шт.

5

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - (1/2" P.T., sq. hd.)

1шт.

6

A58637

MANIFOLD GASKET

- manifold

3шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Manifold Hex, 3/8"-16 x 2", G5

6шт.

8

92-6

LOCK WASHER,3/8"

6шт.

9

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16"

6шт.

12

A58638

HOUSING

- thermostat

1шт.

13

A58639

GASKET

- thermostat housing

1шт.

14

A57641

THERMOSTAT

- (180deg.)

2шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Thermostat housing Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

16

92-6

LOCK WASHER,3/8"

3шт.

17

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- water by-pass (1-1/4" I.D. x 5-5/16")

1шт.

18

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4")

2шт.

22

A58909

MANIFOLD

- water (Order A44088), cast iron

1шт.

23

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - (1/2" P.T., sq. hd.), cast iron

1шт.

24

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - (3/4" P.T., hex. sckt. hd.), cast iron

2шт.

25

A58637

MANIFOLD GASKET

- manifold, cast iron

3шт.

26

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- manifold (3/8 x 1-1/2" N.C. hex.), cast iron

3шт.

26

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Manifold, Cast iron Hex, 3/8"-16 x 2", G5

3шт.

27

92-6

LOCK WASHER,3/8"

cast iron 3/8"

6шт.

30

A58638

HOUSING

- thermostat, cast iron

1шт.

31

A58639

GASKET

- thermostat housing, cast iron

1шт.

32

A57641

THERMOSTAT

- (180deg.), cast iron

2шт.

33

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Housing, Cast iron Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

34

92-6

LOCK WASHER,3/8"

cast iron 3/8"

3шт.

35

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- water by-pass (1-1/4" I.D. x 5-5/16"), cast iron

1шт.

36

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4"), cast iron

2шт.
