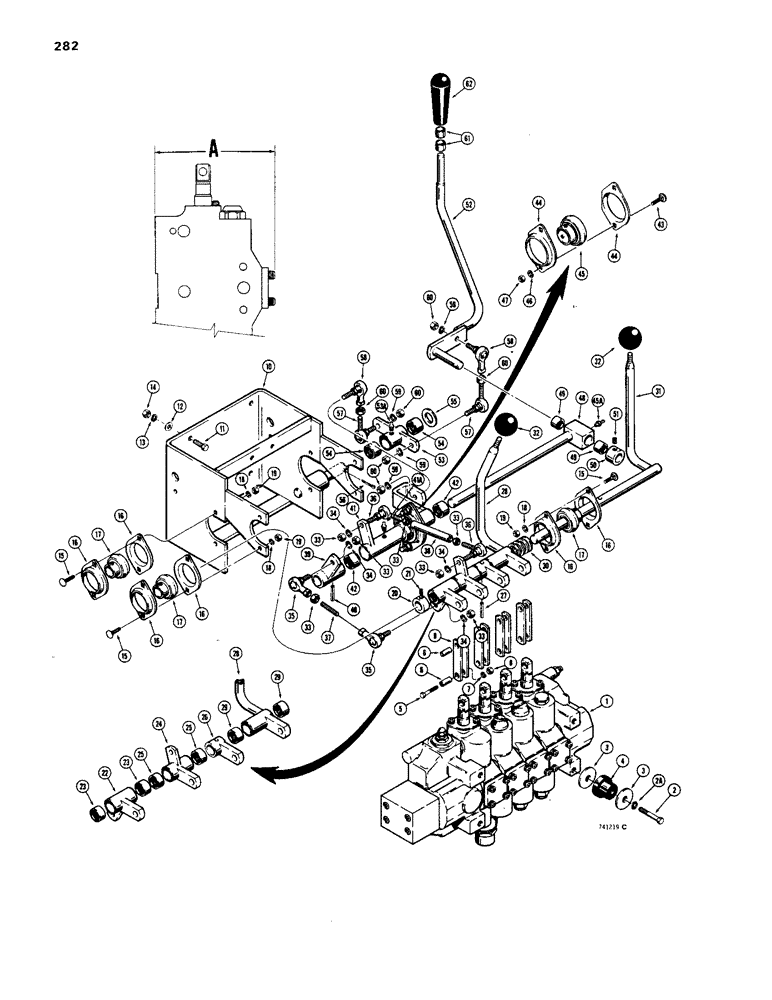

Запчасти Case 1450 (282) - EQUIPMENT CONTROL VALVE AND LEVERS, THREE LEVER - 4 SPOOL VALVES STAMPED W/CASE PN (08) - HYDRAULICS

1

R28049

VALVE - 6" (152 mm) sections at A, tilt dozer with dual pull behind, parts list Figure 294, see Note 1

1шт.

Order R40276 for complete valve replacement. Also order R32185 tube, R32187 tube, R40320 tube and R40322 tube.

1шт.

1

R34700

VALVE - 6" (152 mm) section at A, tilt dozer with daul pull behind, parts list Figure 295A, see Note 1

1шт.

Order R40276 for complete valve replacement. Also order R32185 tube, R32187 tube, R40320 tube and R40322 tube.

1шт.

1

R38211

VALVE

- 6 (152 mm) sections at A, tilt dozer with dual pull behind, parts list Figure 296, see Note 1

1шт.

Order R40276 for complete valve replacement. Also order R32185 tube, R32187 tube, R40320 tube and R40322 tube.

1шт.

1

R40276

VALVE

- 6-13/16" (173 mm) sections at A, tilt dozer with dual pull behind, parts list Figure 296

1шт.

1

R40463

VALVE

- angle tilt pitch dozer, parts list Figure 298

1шт.

1

R25619

VALVE - 6 (152 mm) sections at A, loader with dual pull behind or 4-in-1 bucket and ripper, parts list Figure 308, see Note 2

1шт.

Order R40054 for complete valve replacement. Also order R39973 tube, R39975 tube, R40578 tube and R40580 tube.

1шт.

1

R34697

VALVE

- 6" (152 mm) sections at A, loader with dual pull behind or 4-in-1 bucket and ripper, parts list Figure 309, see Note 2

1шт.

Order R40054 for complete valve replacement. Also order R39973 tube, R39975 tube, R40578 tube and R40580 tube.

1шт.

1

R38202

VALVE

- 6" (152 mm) sections at A, loader with dual pull behind or 4-in-1 bucket and ripper, parts list Figure 3100, see Note 2

1шт.

Order R40054 for complete valve replacement. Also order R39973 tube, R39975 tube, R40578 tube and R40580 tube.

1шт.

1

R40054

VALVE

- 6-13/16" (173 mm) sections at A, loader with dual pull behind or 4-in-1 bucket and ripper, parts list Figure 310

1шт.

2

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

3шт.

2a

92-8

LOCK WASHER,1/2"

3шт.

3

195-36

WASHER

- flat, 1/2"

6шт.

4

R29799

SHOCK ABSORBER

MOUNT - rubber, use R34521 spacer

3шт.

4

R34521

SPACER

- valve

3шт.

5

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

8шт.

6

R37017

SLEEVE

- spacer, links

8шт.

7

92-5

LOCK WASHER,5/16"

8шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

8шт.

9

R29064

LINK

- at valve

8шт.

10

R29024

BRACKET

- mounting, linkage

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

12

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

15

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

6шт.

16

F13360

FLANGE

- bearing

6шт.

17

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

BEARING - radial ball

3шт.

18

95-5

WASHER,3/8" x 7/8" x .083"

- lock, 5/16"

6шт.

19

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

6шт.

20

T10676

COLLAR

- locking

1шт.

21

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

SCREW - set, 5/16" - 18 NC x 3/4"

1шт.

22

R29053

LEVER

BELLCRANK - linkage, rear, Includes: Ref. 23

1шт.

23

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

BEARING - needle

2шт.

24

R29051

LEVER

BELLCRANK - linkage, center, Includes: Ref. 25

1шт.

25

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

BEARING - needle

2шт.

26

R29055

DIPPER

BELLCRANK - linkage, front

1шт.

27

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

28

R29060

LEVER

- control, Includes: Ref. 29

1шт.

29

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

BEARING - needle

2шт.

30

195-545

WASHER,3/4", SAE

- flat, 3/4"

1шт.

31

R29063

LEVER

SHAFT AND LEVER - control

1шт.

32

70213

KNOB

- lever

2шт.

33

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

7шт.

34

92-5

LOCK WASHER,5/16"

4шт.

35

R36626

BALL

JOINT - female

2шт.

36

R36625

BALL

JOINT - male

2шт.

37

R29067

STUD

- special

1шт.

38

R29066

DRAG LINK

LINK - adjustable

1шт.

39

REF

INSTRUCTION

BELLCRANK - link, models with height control and return-to-dig, parts list figure 270

1шт.

39

R29057

DIPPER

BELLCRANK - link, standard

1шт.

40

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

REF

INSTRUCTION

TUBE ASSEMBLY - cross, models with height control and return-to-dig, parts list figure 270, not shown, Includes: Ref. 41 - 47

1шт.

R29036

TUBE

ASSEMBLY - cross, standard, Includes: Ref. 41 - 47

1шт.

41

NSS

NOT SOLD SEPARAT

TUBE AND ARM

1шт.

41a

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

42

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

BEARING - needle

2шт.

43

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

44

NSS

NOT SOLD SEPARAT

FLANGE - bearing

2шт.

45

NSS

NOT SOLD SEPARAT

BEARING - radial ball

1шт.

46

92-6

LOCK WASHER,3/8"

2шт.

47

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

48

R29029

SHAFT

- lever, Includes: Ref. 48A and 49

1шт.

48a

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

49

R27370

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.562"

BEARING - needle

2шт.

50

D43620

COLLAR

- locking

1шт.

51

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

52

R29026

LEVER

- control, 1/2" (13 mm) ID for knob, use R38658 lever, R38654 knob and (2) R38655 ring

1шт.

52

R38658

LEVER

- control, 5/8" (15 mm) ID for knob

1шт.

53

R27646

ROCKER

ARM - rocker, Includes: Ref. 53A and 54

1шт.

53a

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16" NPT

1шт.

54

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

BEARING - needle

2шт.

55

195-545

WASHER,3/4", SAE

- flat, 3/4"

1шт.

56

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

57

R36625

BALL

JOINT - male

2шт.

58

R36626

BALL

JOINT - female

2шт.

59

92-5

LOCK WASHER,5/16"

4шт.

60

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

6шт.

61

D37550

KNOB

- R29026 lever (replaced D38662)

1шт.

61

R38654

KNOB

- R38658 lever

1шт.

62

D38662

RING

- 1/2" (13 mm) ID

2шт.

62

R38655

RING

- 5/8" (15 mm) ID (replaced R38654)

2шт.
