Запчасти Case 1450 (278) - EQUIPMENT CONTROL VALVE AND LEVERS, TWO LEVER - 3 SPOOL VALVES STAMPED W/CASE PART NO. (08) - HYDRAULICS

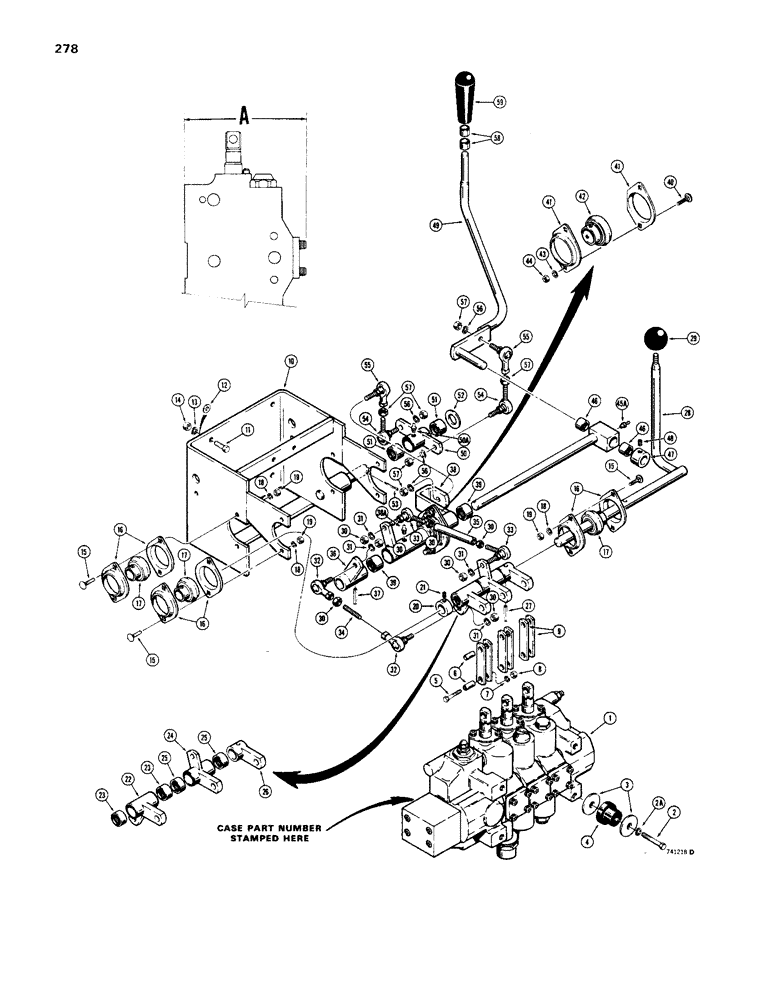

Схема запчастей Case 1450 - (278) - EQUIPMENT CONTROL VALVE AND LEVERS, TWO LEVER - 3 SPOOL VALVES STAMPED W/CASE PART NO. (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

R40462

VALVE

- angle tilt pitch dozer, parts list Figure 298

1шт.

1

R28048

VALVE - 6" (152 mm) sections at A, tilt dozer with ripper, parts list Figure 294

1шт.

Order R40275 for complete valve replacement. Also order R32185 tube, R32187 tube, R40320 tube and R40322 tube.

1шт.

1

R34699

VALVE - 6" (152 mm) sections at A, tilt dozer with ripper, parts list Figure 290

1шт.

Order R40275 for complete valve replacement. Also order R32185 tube, R32187 tube, R40320 tube and R40322 tube.

1шт.

1

R38210

LOCK VALVE

VALVE - 6" (152 mm) sections at A, dozer with ripper, parts list Figure 292

1шт.

Order R40275 for complete valve replacement. Also order R32185 tube, R32187 tube, R40320 tube and R40322 tube.

1шт.

1

R40275

VALVE

- 6-13/16" (173 mm) sections at A, tilt dozer with ripper, parts list Figure 292

1шт.

1

R25618

VALVE - 6" (152 mm) sections at A, loader with ripper or 4-in-1 bucket, parts list Figure 304

1шт.

Order R40053 for complete valve replacement. Also order R40578 tube, R40580 tube, R40581 tube and R40583 tube.

1шт.

1

R34696

VALVE - 6" (152 mm) sections at A, loader with ripper or 4-in-1 bucket, parts list Figure 305A

1шт.

Order R40053 for complete valve replacement. Also order R40578 tube, R40580 tube, R40581 tube and R40583 tube.

1шт.

1

R38201

VALVE

- 6" (152 mm) sections at A, loader with ripper or 4-in-1 bucket, parts list Figure 306

1шт.

Order R40053 for complete valve replacement. Also order R40578 tube, R40580 tube, R40581 tube and R40583 tube.

1шт.

1

R40053

VALVE

- 6-13/16" (173 mm) sections at A, loader with ripper or 4-in-1 buckets, parts list Figure 306

1шт.

2

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

3шт.

2a

92-8

LOCK WASHER,1/2"

3шт.

3

195-36

WASHER

- flat, 1/2"

6шт.

4

R29799

SHOCK ABSORBER

MOUNT - rubber, use R34521 spacer

3шт.

4

R34521

SPACER

- valve

3шт.

5

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

6шт.

6

R37017

SLEEVE

- spacer, links

6шт.

7

92-5

LOCK WASHER,5/16"

6шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

6шт.

9

R29064

LINK

- at valve

6шт.

10

R29024

BRACKET

- mounting, linkage

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

12

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

15

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

6шт.

16

F13360

FLANGE

- bearing

6шт.

17

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

BEARING - radial ball

3шт.

18

95-5

WASHER,3/8" x 7/8" x .083"

- lock, 5/16"

6шт.

19

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

6шт.

20

T10676

COLLAR

- locking

1шт.

21

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

22

R29053

LEVER

BELLCRANK - linkage, rear, Includes: Ref. 23

1шт.

23

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

BEARING - needle

2шт.

24

R29051

LEVER

BELLCRANK - linkage, center, Includes: Ref. 25

1шт.

25

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

BEARING - needle

2шт.

26

R29055

DIPPER

BELLCRANK - linkage, front

1шт.

27

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

28

R29063

LEVER

SHAFT AND LEVERS - control

1шт.

29

70213

KNOB

- lever

1шт.

30

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

7шт.

31

92-5

LOCK WASHER,5/16"

4шт.

32

R36626

BALL

JOINT - female

2шт.

33

R36625

BALL

JOINT - male

2шт.

34

R29067

STUD

- special

1шт.

35

R29066

DRAG LINK

LINK - adjustable

1шт.

36

REF

INSTRUCTION

BELLCRANK - link, models with return-to-dig and height control, parst list figure 270, not shown

1шт.

37

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

REF

INSTRUCTION

TUBE ASSEMBLY - cross, models with return-to-dig and height control, parts list figure 270, not shown, Includes: Ref. 38

1шт.

R29036

TUBE

ASSEMBLY - cross, standard, Includes: Ref. 38

1шт.

38

NSS

NOT SOLD SEPARAT

TUBE AND ARM

1шт.

38a

219-410

LUBE NIPPLE,3/16" NPTF

Incl. Ref. 39 - 44 3/16" x .47" lg, Drive

1шт.

39

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

BEARING - needle

2шт.

40

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

41

NSS

NOT SOLD SEPARAT

FLANGE - bearing

2шт.

42

NSS

NOT SOLD SEPARAT

BEARING - radial ball

1шт.

43

92-6

LOCK WASHER,3/8"

2шт.

44

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

45

R29029

SHAFT

- lever, Includes: Ref. 45A and 46

1шт.

45a

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

46

R27370

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.562"

BEARING - needle

2шт.

47

D43620

COLLAR

- locking

1шт.

48

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

49

R29026

LEVER

- control, 1/2" (13 mm) ID for knob, use R38658 lever, R38654 knob and (2) R38655 rings

1шт.

49

R38658

LEVER

- control, 5/8" (15 mm) ID for knob

1шт.

50

R27646

ROCKER

ARM - rocker, Includes: Ref. 50A and 51

1шт.

50a

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

51

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

BEARING - needle

2шт.

52

195-545

WASHER,3/4", SAE

- flat, 3/4"

1шт.

53

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

54

R36625

BALL

JOINT - male

2шт.

55

R36626

BALL

JOINT - female

2шт.

56

92-5

LOCK WASHER,5/16"

4шт.

57

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

6шт.

58

R38655

RING

- 1/2" (13 mm) ID (replaced D38662)

2шт.

58

R38654

KNOB

RING - 5/8" (15 mm) ID

2шт.

59

D37550

KNOB

- R29026 lever (replaced D38662)

1шт.

59

R38654

KNOB

- R83658 lever

1шт.

Выбрано товаров: 83
