Запчасти Case 1450 (268) - G101272 AND G101273 RIPPER CYLINDERS, TUBE OR GLAND IS STAMPED W/CYLINDER PN 4"(102MM) ID CYLINDER (08) - HYDRAULICS

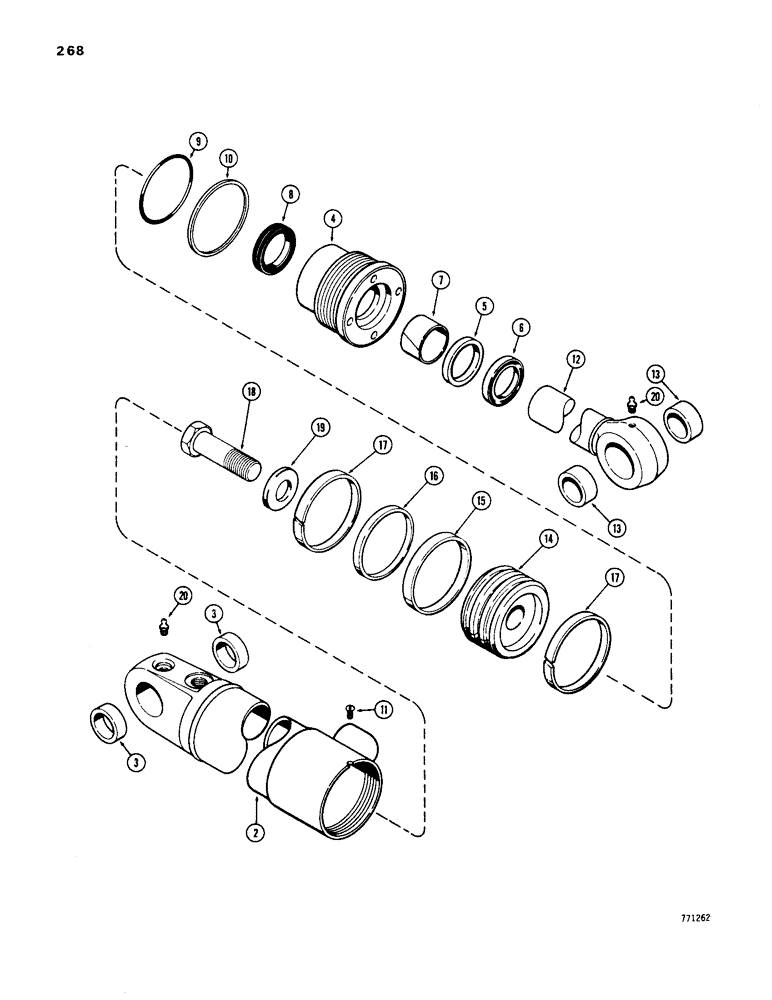

Схема запчастей Case 1450 - (268) - G101272 AND G101273 RIPPER CYLINDERS, TUBE OR GLAND IS STAMPED W/CYLINDER PN 4"(102MM) ID CYLINDER (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

G101272

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

CYLINDER - RH ripper, 4" (102 mm) dia x 10" (254 mm) stroke, Includes: Ref. 2 - 20

1шт.

G101273

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

CYLINDER - LH ripper, 4" (102 mm) dia x 10" (254 mm) stroke, Includes: Ref. 2 - 20

1шт.

2

G100284

TUBE,18.75" L

- G101272 cylinder, Includes: Ref. 3

1шт.

2

G100285

TUBE,18.75" L

- G101273 cylinder, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube

2шт.

G34331

GLAND

ASSEMBLY, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Part of seal kit P/N G102401

1шт.

7

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BEARING - center

1шт.

Part of seal kit P/N G102401

1шт.

8

D36971

RING

SEAL - piston rod

1шт.

Part of rod seal, service option, P/N G100778

1шт.

Part of seal kit P/N G102401

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G102401

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of seal kit P/N G102401

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

G100290

ROD

- piston, 2" (51 mm) dia, Includes: Ref. 13

1шт.

13

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

14

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

1шт.

15

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

1шт.

Part of seal kit P/N G102401

1шт.

16

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup

1шт.

Part of seal kit P/N G102401

1шт.

17

G100448

RING,101.6mm OD, Ext

- wear

2шт.

Part of seal kit P/N G102401

1шт.

18

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8

1шт.

19

G32351

WASHER

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

G102401

SEAL

KIT - seal Includes: Refs. 6 - 10, 15, 16 and 17

1шт.

G100778

SEAL

- rod, service option - extreme heat or cold, Includes: Ref. 8

1шт.

Выбрано товаров: 34
