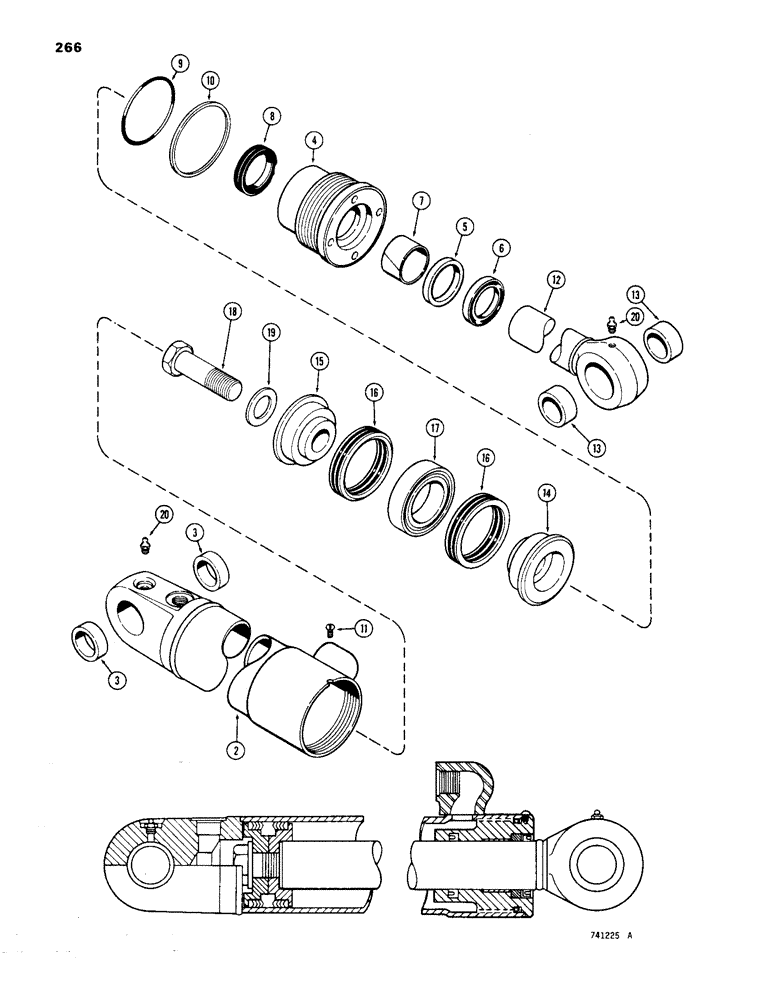

Запчасти Case 1450 (266) - G100272 AND G100273 RIPPER CYLINDERS, GLAND OR TUBE IS STAMPED W/CYLINDER PN, 4"(102MM) ID CYLINDER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
G100272
CYLINDER
- RH ripper, 4" dia (102 mm) x 10" (254 mm) stroke, Includes: Ref. 2 - 20
1шт.
1
G100273
TOOTH
CYLINDER - LH ripper, 4" (102 mm) dia x 10" (254 mm) stroke, Includes: Ref. 2 - 20
1шт.
2
G100284
TUBE,18.75" L
- G100272 cylinder, Includes: Ref. 3
1шт.
2
G100285
TUBE,18.75" L
- G100273 cylinder, Includes: Ref. 3
1шт.
3
30613
BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L
- tube
2шт.
G34331
GLAND
ASSEMBLY, Includes: Ref. 4 - 10
1шт.
4
NSS
NOT SOLD SEPARAT
GLAND
1шт.
5
NSS
NOT SOLD SEPARAT
RING - center bearing
1шт.
6
D95144
WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
Wiper - piston rod, outer
1шт.
Part of seal kit P/N G34647
1шт.
7
G101533
WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk
BEARING - center
1шт.
Part of seal kit P/N G34647
1шт.
9
A27507
O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro
1шт.
Part of seal kit P/N G34647
1шт.
10
G32176
BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk
1шт.
Part of seal kit P/N G34647
1шт.
11
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - self-tapping, no. 8 - 32 NC x 1/4"
1шт.
12
G100290
ROD
- piston, 2" (51 mm) dia
1шт.
13
D33047
BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L
- piston rod
2шт.
14
G33159
PISTON
- split, rod end
1шт.
15
D46930
PISTON
- split, bolt end
1шт.
G33239
PACKING
ASSEMBLY - piston, Includes: Ref. 16 and 17
1шт.
Part of seal kit P/N G34647
1шт.
16
NSS
NOT SOLD SEPARAT
PACKING ASSEMBLY - V-type
2шт.
17
NSS
NOT SOLD SEPARAT
RING - center bearing
1шт.
18
28-2040
BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8
- Hex, 1-1/4"-12 NF x 2-1/2", G8
1шт.
19
G32351
WASHER
- hardened
1шт.
20
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8 NPT
2шт.
G34647
SEAL
KIT - seal Includes: Refs. 6, 7, 9, 10 and P/N G33239
1шт.
G100778
SEAL
- rod, service option - extreme heat or cold
1шт.
Выбрано товаров: 30
