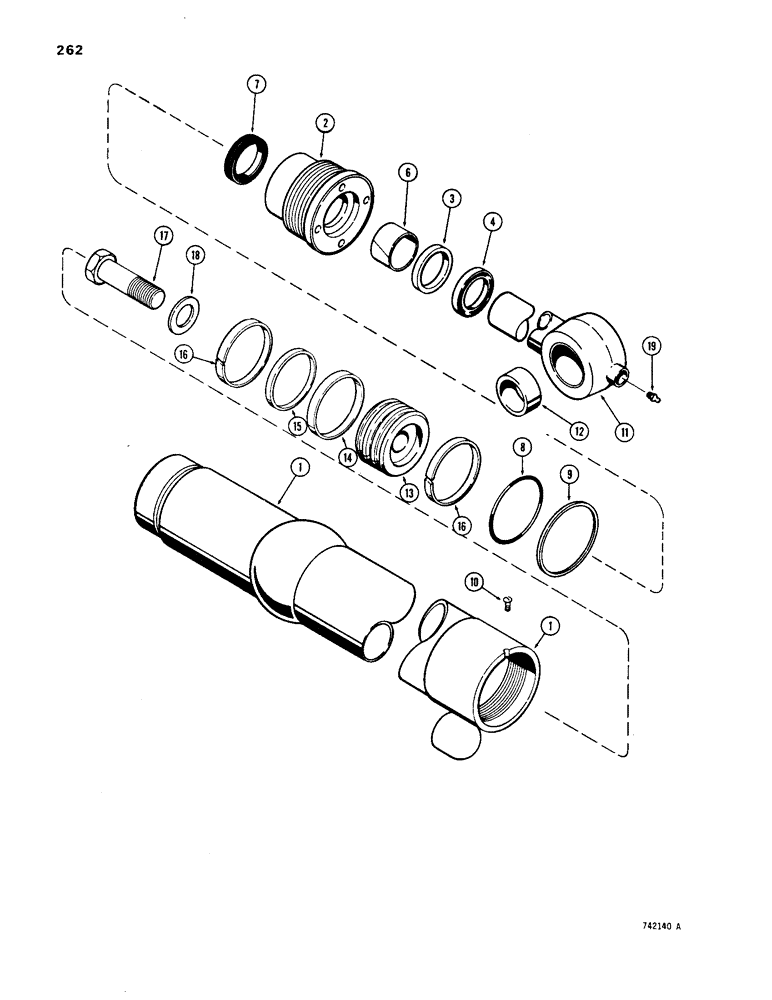

Запчасти Case 1450 (262) - G100970 DOZER ANGLE CYLINDER, TUBE IS STAMPED WITH CYLINDER PN (08) - HYDRAULICS

G100970

CYLINDER BLOCK

CYLINDER - 4" (102 mm) ID x 54-31/32" (1401 mm) long, Includes: Ref. 1 - 19

2шт.

1

G100971

JACK BODY

TUBE

1шт.

G34331

GLAND

ASSEMBLY, Includes: Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND

1шт.

3

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

4

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - rod

1шт.

Part of seal kit P/N G102401

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BEARING - center

1шт.

Part of seal kit P/N G102401

1шт.

7

D36971

RING

SEAL - rod

1шт.

Part of rod seal, service option, P/N G100778

1шт.

Part of seal kit P/N G102401

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G102401

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of seal kit P/N G102401

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1-1/4"

1шт.

11

G100979

ROD

- 2" (51 mm) dia, Includes: Ref. 12

1шт.

12

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

2шт.

13

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

1шт.

14

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

1шт.

Part of seal kit P/N G102401

1шт.

15

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup

1шт.

Part of seal kit P/N G102401

1шт.

16

G100448

RING,101.6mm OD, Ext

- wear

2шт.

Part of seal kit P/N G102401

1шт.

17

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

- 1/8" - NC x 3-1/2", grade 8

1шт.

18

G32351

WASHER

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G102401

SEAL

KIT - seal, Includes: Refs. 4, 6 - 9, 14, 15 and 16

1шт.

G100778

SEAL

- rod, service option - extreme heat or cold, Includes: Ref. 7

1шт.
