Запчасти Case 1450 (260) - G101023 AND G101022 TILT AND PITCH CYLINDERS, GLAND OR TUBE STAMPED W/CYLINDER PN (08) - HYDRAULICS

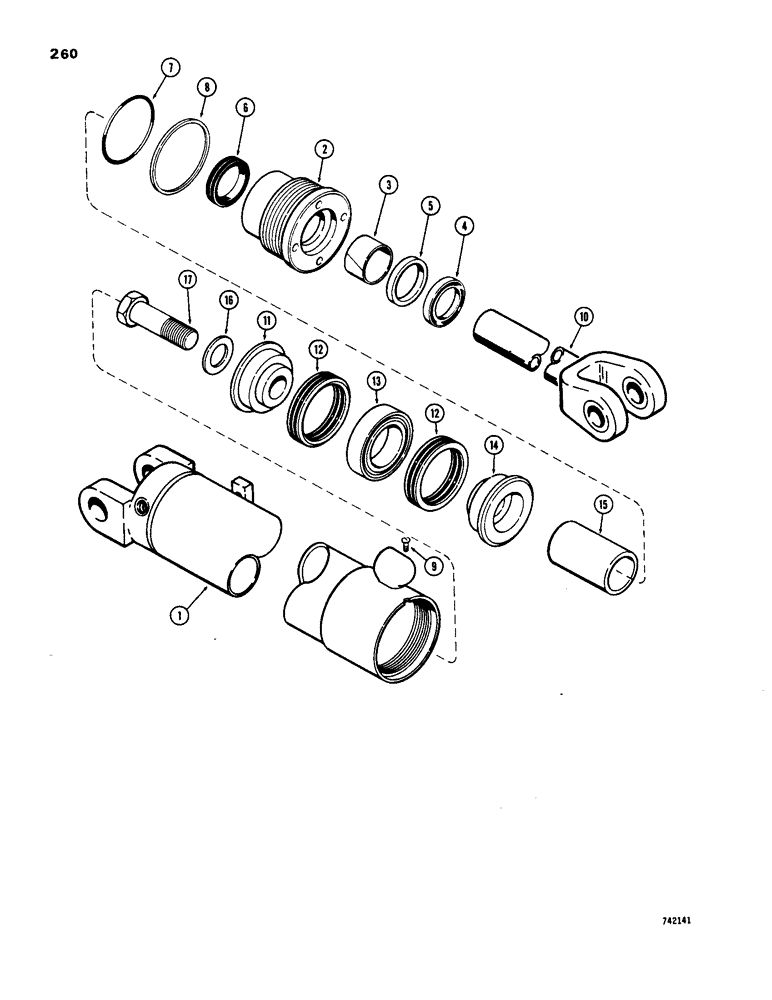

Схема запчастей Case 1450 - (260) - G101023 AND G101022 TILT AND PITCH CYLINDERS, GLAND OR TUBE STAMPED W/CYLINDER PN (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

G101023

CYLINDER

- LH, 5" (127 mm) ID x 4-1/2" (114 mm) stroke, Includes: Ref. 1 - 17

1шт.

G101022

CYLINDER

- RH, 5" (127 mm) ID x 4-1/2" (114 mm) stroke, Includes: Ref. 1 - 17

1шт.

1

G101030

TUBE

- G101022 cylinder

1шт.

1

G101031

TUBE

- G101023 cylinder

1шт.

G34751

SPARE PART

GLAND ASSEMBLY, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND

1шт.

3

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

4

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - rod

1шт.

Part of seal kit P/N G34537

1шт.

5

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

BEARING - center

1шт.

Part of seal kit P/N G34537

1шт.

6

D45571

ROD

SEAL - rod

1шт.

Part of seal kit P/N G34537

1шт.

Part of rod seal, service option, P/N G100778

1шт.

7

49393

O-RING,4.734" ID x 5.012" OD x 0.139"

1шт.

Part of seal kit P/N G34537

1шт.

8

S92639

RING

- backup

1шт.

Part of seal kit P/N G34537

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

10

G100967

ROD

- 2-1/2" (64 mm) dia

1шт.

11

D48562

PISTON,123.95mm Bore, 63.5mm Rod, 34.92mm W

- bolt half

1шт.

12

D47206

PACKING

- piston

2шт.

Part of seal kit P/N G34537

1шт.

13

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - wear

1шт.

14

G100530

PISTON,123.95mm Bore, 32.54mm Rod, 36.92mm W

- rod half

1шт.

15

G34573

SPACER

1шт.

16

NLS

NO LONGER SERVICED

- hardened

1шт.

17

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

HHCS - 1-1/2" - NF x 3-1/2"

1шт.

G34537

SEAL

KIT - seal, Includes: Refs. 4 - 8 and 12

1шт.

G100778

SEAL

- rod, service option - extreme heat or cold, Includes: Ref. 6

1шт.

Выбрано товаров: 30
