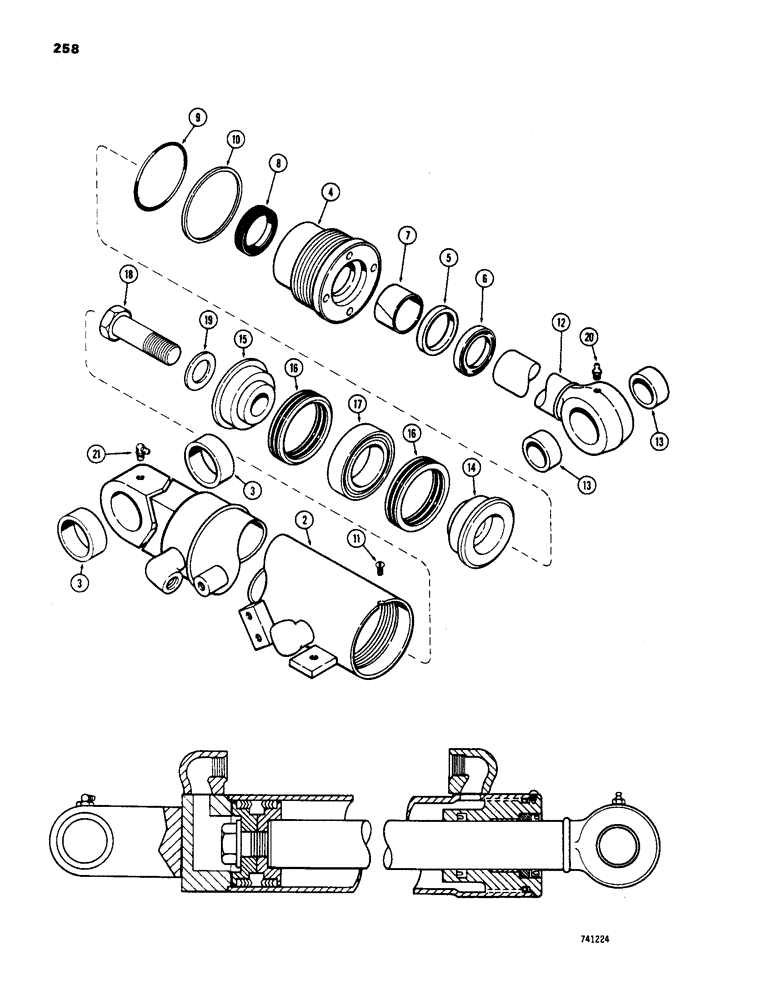

Запчасти Case 1450 (258) - G34550 DOZER TILT CYLINDER, TILT DOZER MODELS, GLAND IS STAMPED W/CYLINDER PN (08) - HYDRAULICS

G34550

CYLINDER

- tilt, 6" (152 mm) dia x 6-3/4 (171 mm) stroke, Includes: Ref. 2 - 21

2шт.

2

G34551

TUBE

- cylinder, Includes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

G34568

GLAND

ASSEMBLY, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING - center bearing retaining

1шт.

6

D95148

WIPER SEAL

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G34569

1шт.

7

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

BEARING - center

1шт.

Part of seal kit P/N G34569

1шт.

8

D45572

ROD

SEAL - piston rod

1шт.

Part of seal kit P/N G34569

1шт.

Part of piston rod seal, service option, P/N G100782

1шт.

9

A28239

O-RING,0.139" Thk x 5.984" ID, -258, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G34569

1шт.

10

G32649

WASHER

RING - backup

1шт.

Part of seal kit P/N G34569

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

G34562

ROD

- piston, 3" (76 mm) dia, Includes: Ref. 13

1шт.

13

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- piston rod

2шт.

14

G32651

PISTON

- split, rod end

1шт.

15

G32652

PISTON

- split, bolt end

1шт.

16

D49321

PACKING

- piston

2шт.

Part of seal kit P/N G34569

1шт.

17

D49320

RING

- center bearing

1шт.

18

28-3264

BOLT,Hex, 2" - 12 x 4", Gr 8

HHCS - 2" - NF x 4", grade 8

1шт.

19

G32653

WASHER

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight, grease, 1/8" NPT

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G34569

SEAL

KIT - seal, Includes: Refs. 6 - 10 and 16

1шт.

G100782

SEAL

- piston rod, service option - extreme heat or cold, Includes: Ref. 8

1шт.
