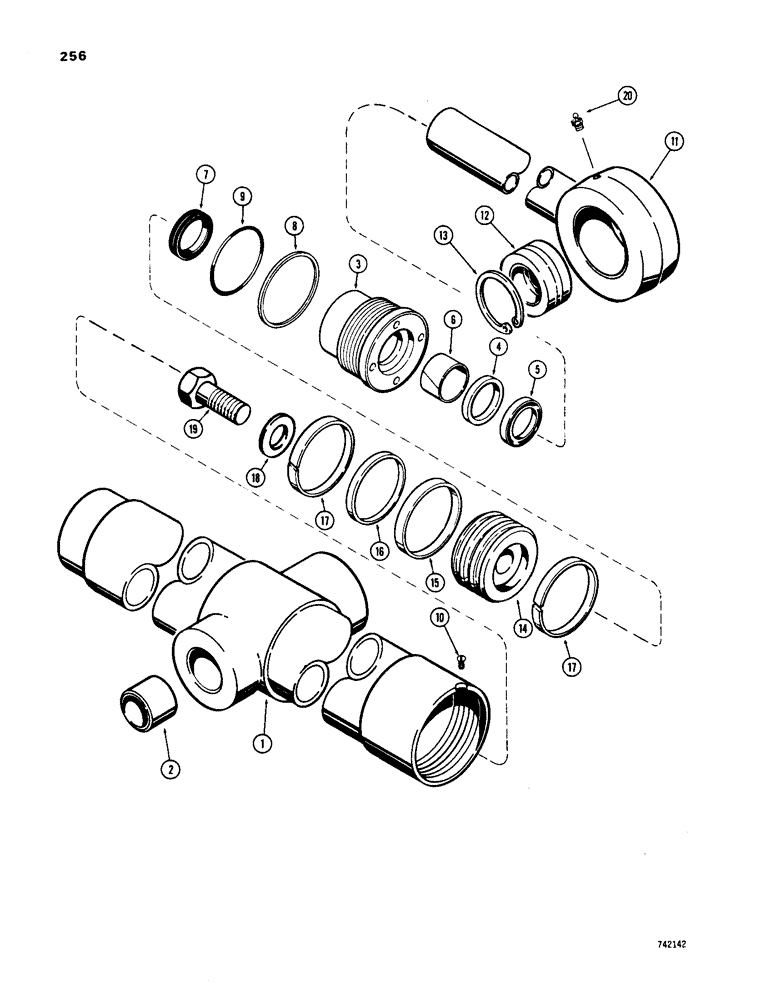

Запчасти Case 1450 (256) - G100947 & G100948 DOZER LIFT CYLINDER, ANGLE TILT PITCH DOZER MODEL GLAND/TUBE STAMPED W/CYLINDER PN (08) - HYDRAULICS

G100947

CYLINDER BLOCK

CYLINDER - LH, 4" (102 mm) ID x 35-19/32" (904 mm) stroke, Includes: Ref. 1 - 20

1шт.

G100948

CYLINDER BLOCK

CYLINDER - RH, 4" (102 mm) ID x 35-19/32" (904 mm) stroke, Includes: Ref. 1 - 20

1шт.

1

G100949

TUBE

- G100947 cylinder, Includes: Ref. 2

1шт.

2

G32393

BUSHING,51.03mm ID x 60.33mm OD x 38.1mm L

2шт.

1

G100950

TUBE

- G100948 cylinder, Includes: Ref. 2

1шт.

2

G32393

BUSHING,51.03mm ID x 60.33mm OD x 38.1mm L

1шт.

G34331

GLAND

ASSEMBLY, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - rod

1шт.

Part of seal kit P/N G102401

1шт.

5

NSS

NOT SOLD SEPARAT

RING - bearing

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BEARING

1шт.

Part of seal kit P/N G102401

1шт.

7

D36971

RING

SEAL - rod

1шт.

Part of seal kit P/N G102401

1шт.

Part of rod seal, service option, P/N G100779

1шт.

8

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of seal kit P/N G102401

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G102401

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

11

G100955

PISTON ROD

ROD - 2" (51 mm) OD, Includes: Ref. 12 and 13

1шт.

12

D23601

HOUSING

BEARING - self-aligning

1шт.

13

49477

RING, SNAP

3.156", Int, #315

1шт.

14

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

1шт.

15

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- rubber

1шт.

Part of seal kit P/N G102401

1шт.

16

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup

1шт.

Part of seal kit P/N G102401

1шт.

17

G100448

RING,101.6mm OD, Ext

- wear

2шт.

Part of seal kit P/N G102401

1шт.

18

G32351

WASHER

- hardened

1шт.

19

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G100779

SEAL

- rod, service option - extreme heat or cold, Includes: Ref. 7

1шт.

G102401

SEAL

KIT - seal, Includes: Refs. 4, 6 - 9, 15, 16 and 17

1шт.
