Запчасти Case 1450 (254) - G101590 & G101591 DOZER LIFT CYLINDERS, G103100 &G103101 DOZER LIFT CYLINDERS, TILT DOZER MODEL, TUB (08) - HYDRAULICS

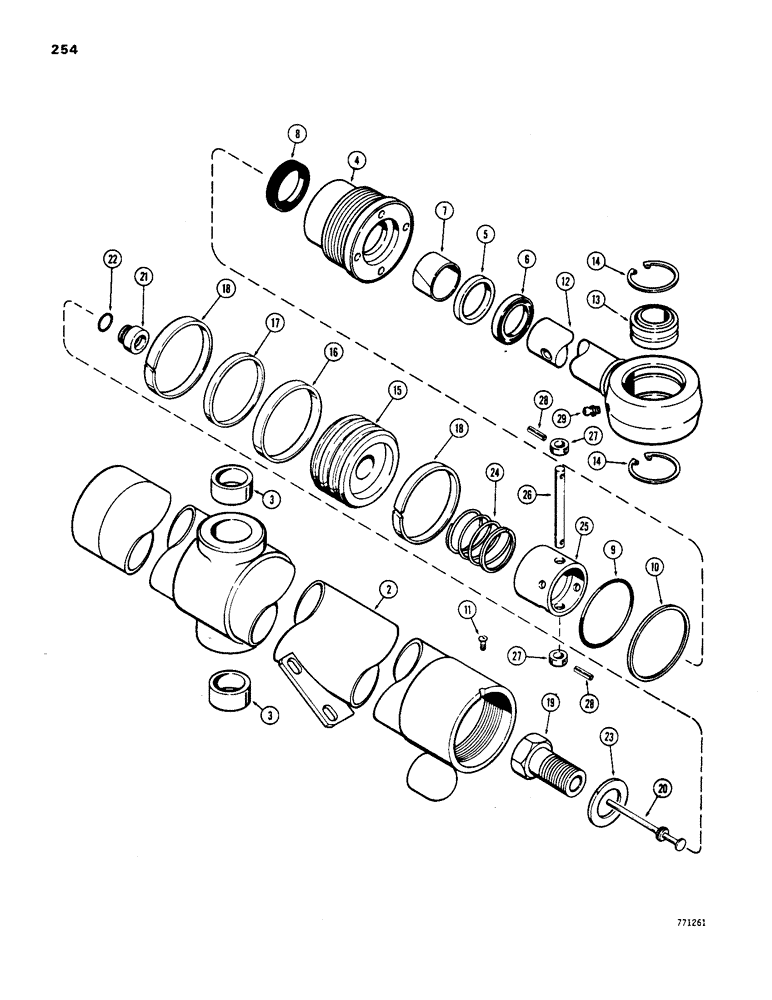

Схема запчастей Case 1450 - (254) - G101590 & G101591 DOZER LIFT CYLINDERS, G103100 &G103101 DOZER LIFT CYLINDERS, TILT DOZER MODEL, TUB (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

G101590

CYLINDER

- RH, 4" (102 mm) ID x 37" (940 mm) stroke, Includes: Ref. 2 - 29

1шт.

G101591

CYLINDER

- LH, 4" (102 mm) ID x 37" (940 mm) stroke, Includes: Ref. 2 - 29

1шт.

G103100

CYLINDER

- RH, 4" (102 mm) ID x 37" (940 mm) stroke, Includes: Ref. 2 - 29

1шт.

G103101

CYLINDER BLOCK

CYLINDER - LH, 4" (202 mm) ID x 37" (940 mm) stroke, Includes: Ref. 2 - 29

1шт.

2

G34482

TUBE

- G101590 and G103100 cylinder, Includes: Ref. 3

1шт.

2

G34483

TUBE

- G101591 and G103101 cylinder, Includes: Ref. 3

1шт.

3

G32393

BUSHING,51.03mm ID x 60.33mm OD x 38.1mm L

2шт.

G34331

GLAND

ASSEMBLY, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - rod

1шт.

Part of seal kit P/N G102401

1шт.

7

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BEARING - center

1шт.

Part of seal kit P/N G102401

1шт.

8

D36971

RING

SEAL - rod

1шт.

Part of rod seal, service option, P/N G100778

1шт.

Part of seal kit P/N G102401

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G102401

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of seal kit P/N G102401

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

G34487

ROD

- piston, 2" (51 mm) dia, Includes: Ref. 13 and 14

1шт.

13

D23601

HOUSING

BUSHING

1шт.

14

NLS

NO LONGER SERVICED

3.156", Int, #315

2шт.

15

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

1шт.

16

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- rubber

1шт.

Part of seal kit P/N G102401

1шт.

17

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup

1шт.

Part of seal kit P/N G102401

1шт.

18

G100448

RING,101.6mm OD, Ext

- wear

2шт.

Part of seal kit P/N G102401

1шт.

G103099

LOCK VALVE

VALVE ASSEMBLY, Includes: Ref. 19 - 22

1шт.

19

G32723

BOLT

- special

1шт.

20

G102827

SPOOL

STEM - poppet

1шт.

21

G32722

BUSHING

SEAT

1шт.

22

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

1шт.

23

G32351

WASHER

- hardened

1шт.

24

G101522

VALVE SPRING

SPRING

1шт.

25

G34974

BLOCK

- stop

1шт.

26

G34975

PIN

- bypass valve

1шт.

27

G34976

BUSHING

COLLAR

2шт.

28

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

2шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight, grease, 1/8" NPT

1шт.

G102401

SEAL

KIT - seal, Includes: Refs. 6 - 10, 16, 17 and 18

1шт.

G100778

SEAL

- rod, service option - extreme heat or cold, Includes: Ref. 8

1шт.

Выбрано товаров: 46
