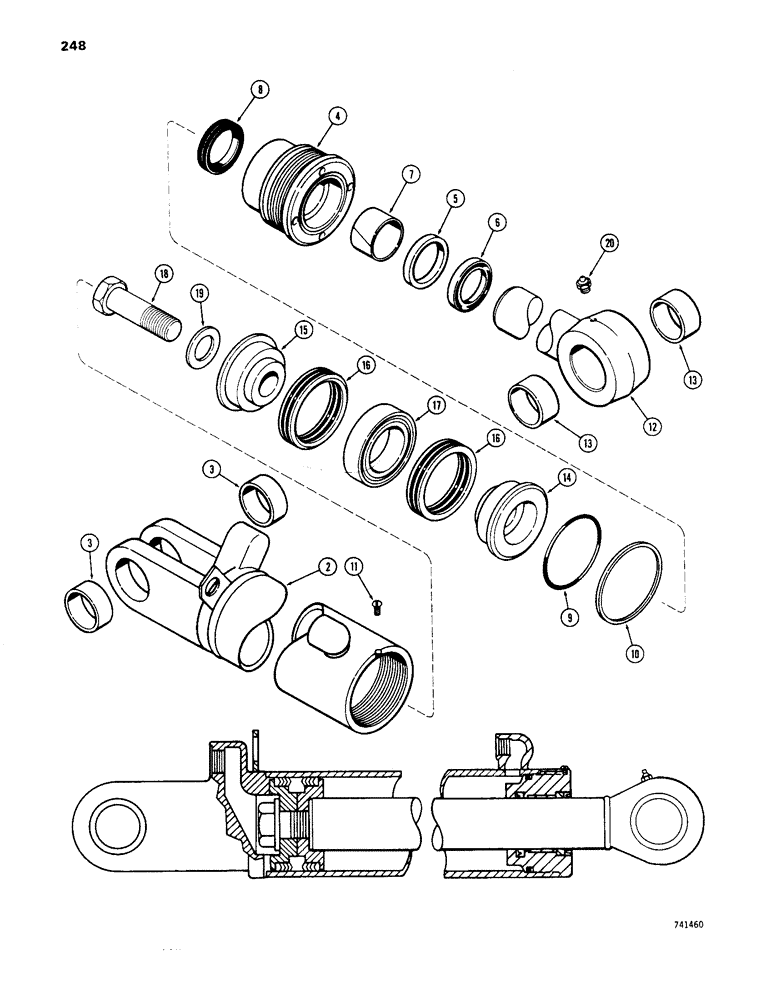

Запчасти Case 1450 (248) - G34520 BUCKET CYLINDER, GLAND IS STAMPED WITH CYLINDER PART NUMBER (08) - HYDRAULICS

G34520

CYLINDER

- dump, 5" (127 mm) dia x 35-3/4" (908 mm) stroke, Includes: Ref. 2 - 20

2шт.

2

G34517

TUBE

- cylinder body, Includes: Ref. 3

1шт.

3

G34984

BUSHING

- tube

2шт.

G34534

GLAND

ASSEMBLY, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

6

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G34537

1шт.

7

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

RING - center bearing

1шт.

Part of seal kit P/N G34537

1шт.

8

D45571

ROD

SEAL - piston rod

1шт.

Part of piston rod seal, service option, P/N G100780

1шт.

Part of seal kit P/N G34537

1шт.

9

NLS

NO LONGER SERVICED

1шт.

Part of seal kit P/N G34537

1шт.

10

S92639

RING

- backup

1шт.

Part of seal kit P/N G34537

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

G34676

ROD

- piston, 2-1/2" (64 mm) dia, Includes: Ref. 13

1шт.

13

D52579

BUSHING,57.38mm ID x 69.85mm OD x 28.57mm L

- piston rod

2шт.

14

S220006

PISTON

- split, rod end

1шт.

15

D49335

PISTON

- split, bolt end

1шт.

16

D47206

PACKING

- piston

2шт.

Part of seal kit P/N G34537

1шт.

17

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - center bearing

1шт.

18

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

HHCS - 1-1/2" - NF x 3-1/2", grade 8

1шт.

19

G32666

WASHER

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight, grease, 1/8" NPT

1шт.

G34537

SEAL

KIT - seal, Includes: Refs. 6 - 10 and 16

1шт.

G100780

SEAL

- piston rod, service option - extreme heat or cold, Includes: Ref. 8

1шт.
