Запчасти Case 1450 (246) - G34510 AND G34511 LOADER LIFT CYLINDERS, GLAND IS STAMPED W/ CYLINDER PN (08) - HYDRAULICS

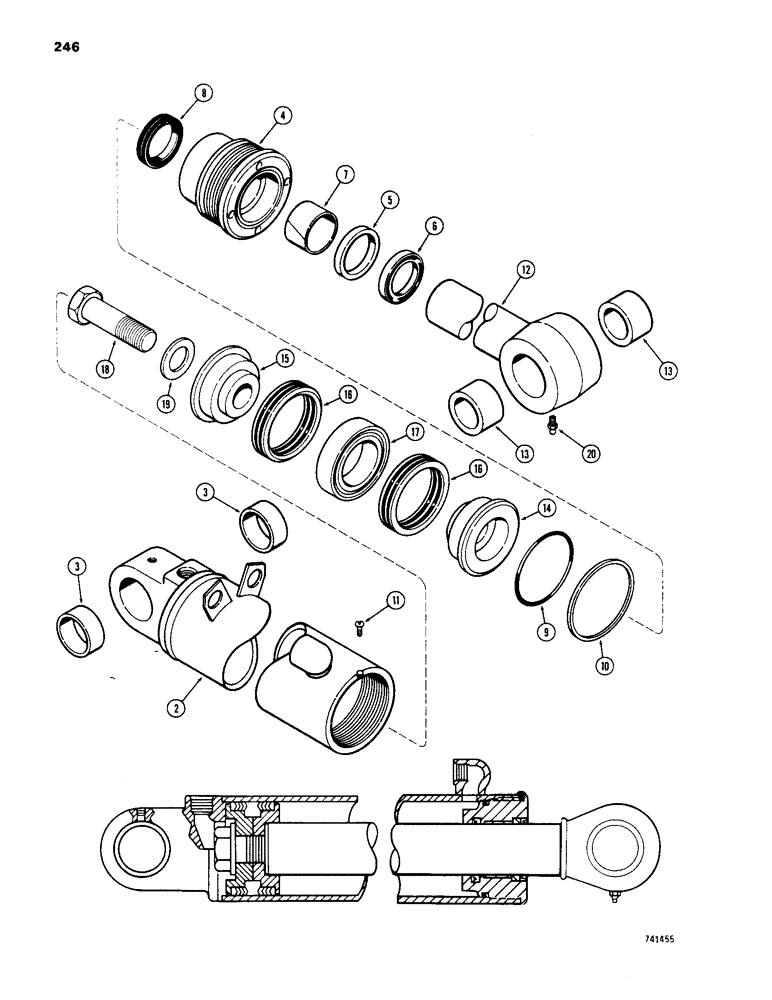

Схема запчастей Case 1450 - (246) - G34510 AND G34511 LOADER LIFT CYLINDERS, GLAND IS STAMPED W/ CYLINDER PN (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

G34510

CYLINDER

- RH lift, 5-1/2" dia x 30-5/8" (140 mm x 778 mm) stroke, Includes: Ref. 2 - 20

1шт.

G34511

CYLINDER

- LH lift, 5-1/2" dia x 30-5/8" (140 mm x 778 mm) stroke, Includes: Ref. 2 - 20

1шт.

2

G34508

TUBE,6.25" OD x 41.36" L

- G34510 cylinder, Includes: Ref. 3

1шт.

2

G34509

TUBE

- G34511 cylinder, Includes: Ref. 3

1шт.

3

G34516

BUSHING

- tube

2шт.

G34533

GLAND

ASSEMBLY, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

6

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G34536

1шт.

7

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

BEARING - center

1шт.

Part of seal kit P/N G34536

1шт.

8

D45571

ROD

SEAL - piston rod

1шт.

Part of seal kit P/N G34536

1шт.

Part of piston rod seal, service option, P/N G100780

1шт.

9

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G34536

1шт.

10

S92644

RING

- backup

1шт.

Part of seal kit P/N G34536

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

G34499

ROD

- piston, 2-1/2" (64 mm) dia, Includes: Ref. 13

1шт.

13

D46403

BUSHING,63.75mm ID x 76.2mm OD x 28.44mm L

- piston rod

2шт.

14

D49164

PISTON

- split, rod end

1шт.

15

D49165

PISTON

- split, bolt end

1шт.

16

D47207

GASKET KIT

PACKING - piston

2шт.

Part of seal kit P/N G34536

1шт.

17

D47212

BEARING WASHER,4.256" ID x 5.491" OD x 0.748"

RING - center bearing

1шт.

18

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

HHCS - 1-1/2" - NF x 3-1/2", grade 8

1шт.

19

NLS

NO LONGER SERVICED

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight, grease, 1/8" NPT

1шт.

G34536

SEAL

KIT - seal, Includes: Refs. 6 - 10 and 16

1шт.

G100780

SEAL

- piston rod, service option - extreme heat or cold, Includes: Ref. 8

1шт.

Выбрано товаров: 32
