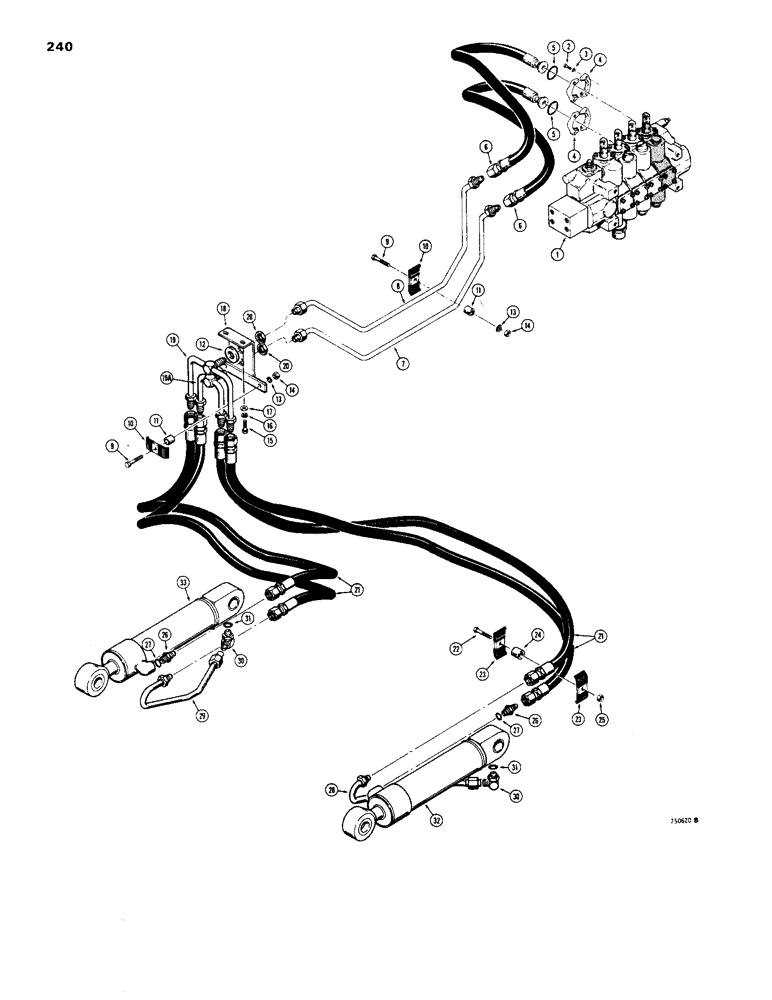

Запчасти Case 1450 (240) - RIPPER HYDRAULIC CIRCUIT, SEE REF 19 ON ILLUSTRATION FOR ID (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE - control, see Figures 278 and 282 for valves
1шт.
2
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
8шт.
3
92-6
LOCK WASHER,3/8"
8шт.
4
A12306
FLANGE
CLAMP - tube
4шт.
5
D31968
O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro
2шт.
6
R33799
HOSE
- at valve
2шт.
7
R29292
TUBE
- at valve, lower port
1шт.
8
R29290
TUBE
- at valve, upper port
1шт.
9
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
3шт.
10
D40236
CLAMP
- tube
3шт.
11
T25073
BUSHING
SPACER - clamp
3шт.
12
195-549
WASHER,7/8", SAE
- flat, 7/8", plated
2шт.
13
92-6
LOCK WASHER,3/8"
3шт.
14
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
3шт.
15
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
2шт.
16
92-6
LOCK WASHER,3/8"
2шт.
17
195-25
WASHER,3/8"
- flat, 3/8"
2шт.
18
R35545
BRACKET
- tube retaining
1шт.
19
R35549
TUBE,0.625" OD x 6.2, 3.75" L
- hydraulic, upper
1шт.
19a
R35551
TUBE
- hydraulic, lower
1шт.
20
218-1251
BHD LOCK NUT,Blkhd, 7/8"-14
NUT, LOCK, Blkhd, 7/8"-14
2шт.
21
F93300
HOSE
- to cylinder, 29" (737 mm) long
4шт.
22
13-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
2шт.
23
D33316
CLAMP
- hose
4шт.
24
T38864
BUSHING
SPACER - clamp
2шт.
25
131-4
LOCK NUT,5/16"-18, GB
NUT - hex, self lock, 5/16" - 18 NC
2шт.
26
D39885
BEARING
FITTING - straight, male, restrictor, Includes: Ref. 27
2шт.
27
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
28
R29282
TUBE,0.625" OD
- closed end, cylinder RH
1шт.
29
R29283
TUBE,0.625" OD
- closed end, cylinder LH
1шт.
30
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
FITTING - 90 degree, male, adjustable, Incl. Ref. 31
2шт.
31
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
32
REF
INSTRUCTION
CYLINDER - RH ripper, see Figures 264 thru 268
1шт.
33
REF
INSTRUCTION
CYLINDER - LH ripper, see Figures 264 thru 268
1шт.
Выбрано товаров: 34
