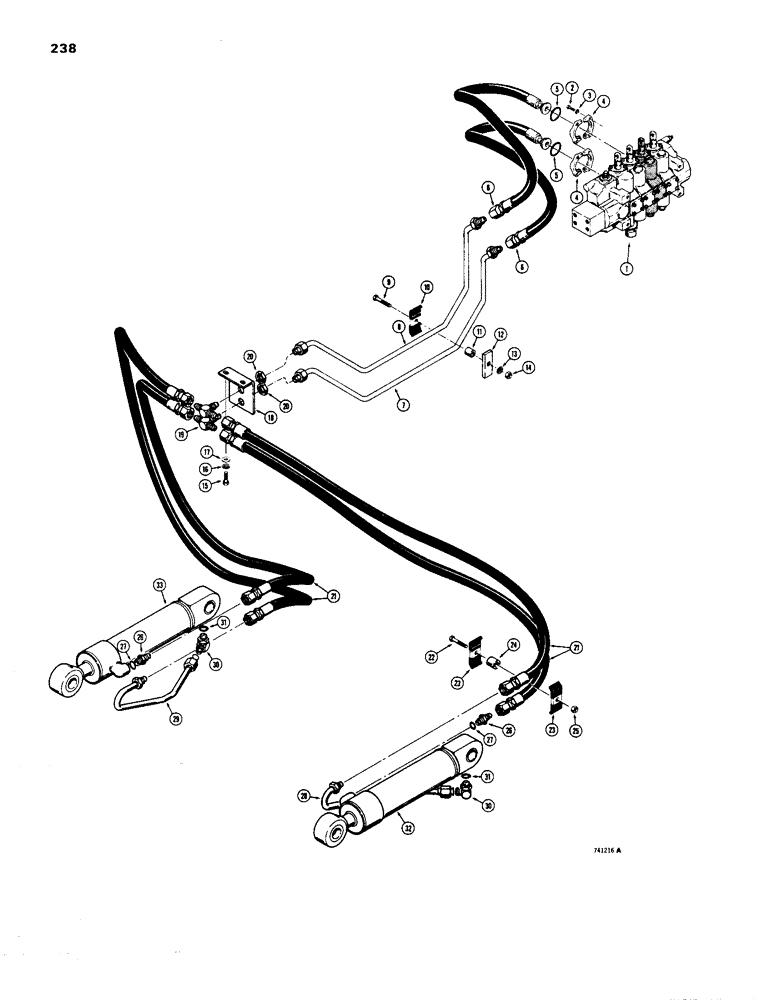

Запчасти Case 1450 (238) - RIPPER HYDRAULIC CIRCUIT, SEE REF 19 ON ILLUSTRATION FOR ID (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - control, see Figures 278 and 282 for valves

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

3

92-6

LOCK WASHER,3/8"

8шт.

4

A12306

FLANGE

CLAMP - tube

4шт.

5

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

6

R33799

HOSE

- at valve

2шт.

7

R29292

TUBE

- at valve, lower port

1шт.

8

R29290

TUBE

- at valve, upper port

1шт.

9

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

10

D40236

CLAMP

- tube

1шт.

11

T25073

BUSHING

SPACER - clamp

1шт.

12

D40083

BLOCK

- mounting

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

18

R35545

BRACKET

- tube retaining

1шт.

19

218-806

TEE,7/8"-14, 37 Degree, Blkhd

2шт.

20

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.

21

37405

HOSE

- to cylinders, 36" (914 mm) long

4шт.

22

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

23

D33316

CLAMP

- hose

4шт.

24

T38864

BUSHING

SPACER - clamp

2шт.

25

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

2шт.

26

NLS

NO LONGER SERVICED

FITTING - straight, male, restrictor, Includes: Ref. 27

2шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

28

R29282

TUBE,0.625" OD

- closed end, cylinder, RH

1шт.

29

R29283

TUBE,0.625" OD

- closed end, cylinder, LH

1шт.

30

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - 90 degree, male, adjustable, Incl. Ref. 31

2шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

32

REF

INSTRUCTION

CYLINDER - RH ripper, see Figures 264 thru 268

1шт.

33

REF

INSTRUCTION

CYLINDER - LH ripper, see Figures 264 thru 268

1шт.
