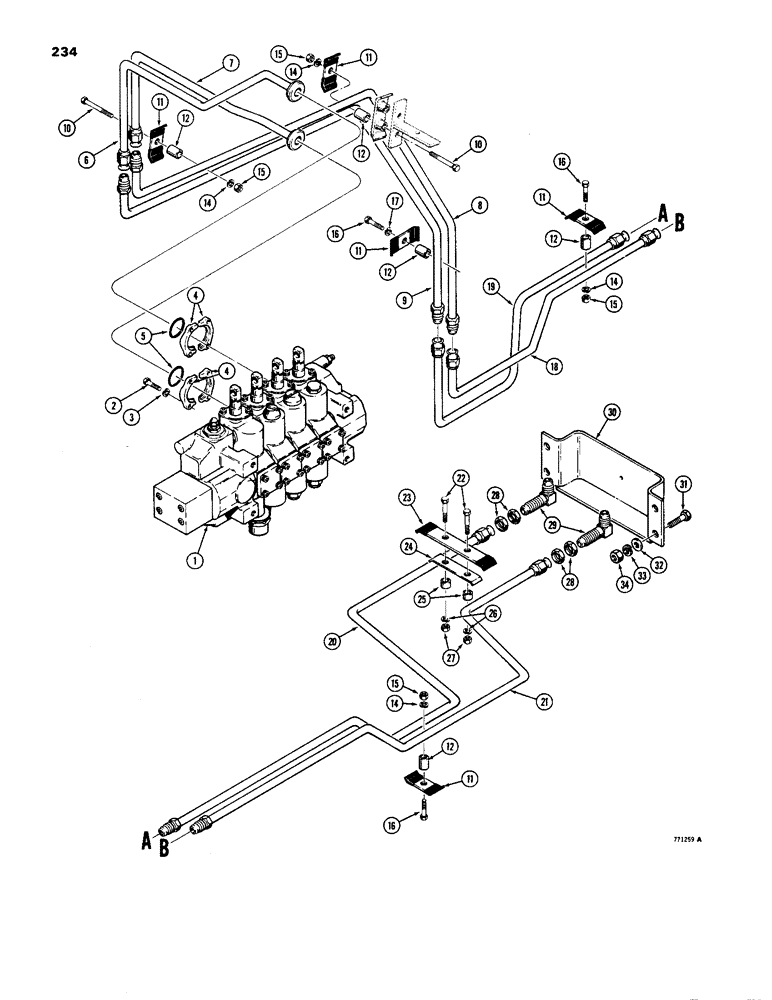

Запчасти Case 1450 (234) - DOZER ANGLE HYDRAULIC CIRCUIT (ATP DOZER), VALVE TO GRILLE (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - see Figure 282 for proper valve

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

3

92-6

LOCK WASHER,3/8"

8шт.

4

A12306

FLANGE

- split

4шт.

5

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

6

R37909

TUBE

1шт.

7

R37907

TUBE

1шт.

8

R42644

TUBE

1шт.

9

R42642

TUBE

1шт.

10

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

1шт.

11

R42655

BRACKET

CLAMP

4шт.

12

F41806

BUSHING

SPACER - long

4шт.

14

92-6

LOCK WASHER,3/8"

3шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

16

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

3шт.

17

92-6

LOCK WASHER,3/8"

1шт.

18

R38360

TUBE

1шт.

19

R38362

TUBE

1шт.

20

R38358

TUBE

- LH

1шт.

21

R38356

TUBE

- RH

1шт.

22

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

23

R35910

CLAMP

1шт.

24

R35908

SPACER

1шт.

25

R29842

SPACER,3/8" Pipe x .469"

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

28

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

4шт.

29

R33859

FITTING

- 90 degree, special

2шт.

30

R35823

COVER

GUARD - at grille

1шт.

31

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

32

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

33

92-8

LOCK WASHER,1/2"

4шт.

34

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.
