Запчасти Case 1450 (232) - DOZER TILT AND PITCH HYDRAULIC CIRCUIT (ATP DOZER), GRILLE TO CYLINDERS (08) - HYDRAULICS

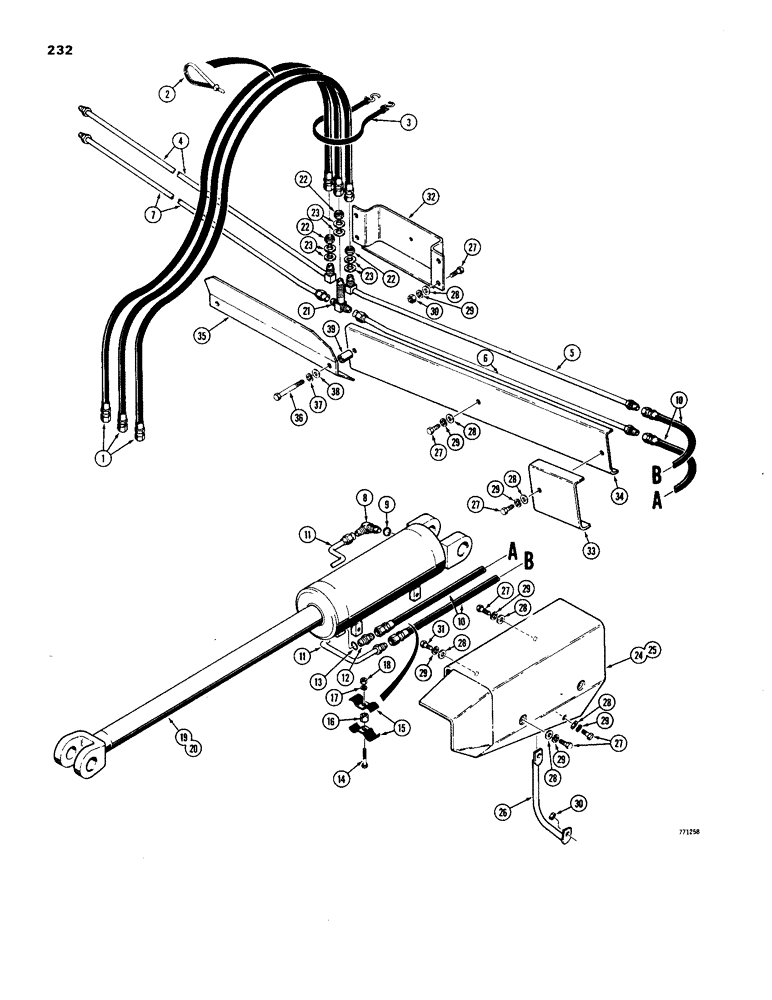

Схема запчастей Case 1450 - (232) - DOZER TILT AND PITCH HYDRAULIC CIRCUIT (ATP DOZER), GRILLE TO CYLINDERS (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

W10686

HOSE

- 56" (1322 mm) long

3шт.

2

L18331

CABLE TIE,375.9mm L, Nylon

STRAP - nylon

1шт.

3

R34737

STRAP

1шт.

4

R37241

TUBE

- upper, LH

1шт.

5

R37242

TUBE,1/2" OD x 45.54, 5.13" L

- upper, RH

1шт.

6

R37239

TUBE

- lower, RH

1шт.

7

R37237

PIPE,1/2" OD x 46.04, 4.75" L

TUBE - lower, LH

1шт.

8

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

FITTING - 90 degree, adjustable, Includes: Ref. 9

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

W11468

HOSE

4шт.

11

R38385

TUBE,0.5" OD x 14.75, 5.8" L

2шт.

12

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Fitting, straight, male, Incl. Ref 13 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

15

R15257

CLAMP

4шт.

16

D38524

SPACER

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

19

G101023

CYLINDER

- LH, parts list Figure 260

1шт.

20

G101022

CYLINDER

- RH, parts list Figure 260

1шт.

21

R28969

FITTING

- tee

1шт.

22

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex lock, 3/4" - 16 NC

3шт.

23

D35268

SHIM,1/32" Thk

Washer, Special 1/32" Thk

6шт.

24

R37288

GUARD

- LH

1шт.

25

R37289

GUARD

- RH

1шт.

26

R38301

ROD

2шт.

27

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

16шт.

28

195-33

WASHER,1/2"

- flat, 1/2"

18шт.

29

92-8

LOCK WASHER,1/2"

18шт.

30

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

6шт.

31

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

32

R35823

COVER

GUARD - at grille

1шт.

33

R38125

GUARD

- end

2шт.

34

R37250

GUARD ASSY.

GUARD - channel

2шт.

35

R37251

GUARD

- center

1шт.

36

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

HHCS - 1/2" - 13 NC x 3-3/4"

2шт.

37

92-8

LOCK WASHER,1/2"

2шт.

38

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

39

R37265

SPACER

2шт.

Выбрано товаров: 39
