Запчасти Case 1450 (230) - DIVERSION VALVE AND CONTROLS (ATP DOZER), R24819 DIVERSION VALVE (08) - HYDRAULICS

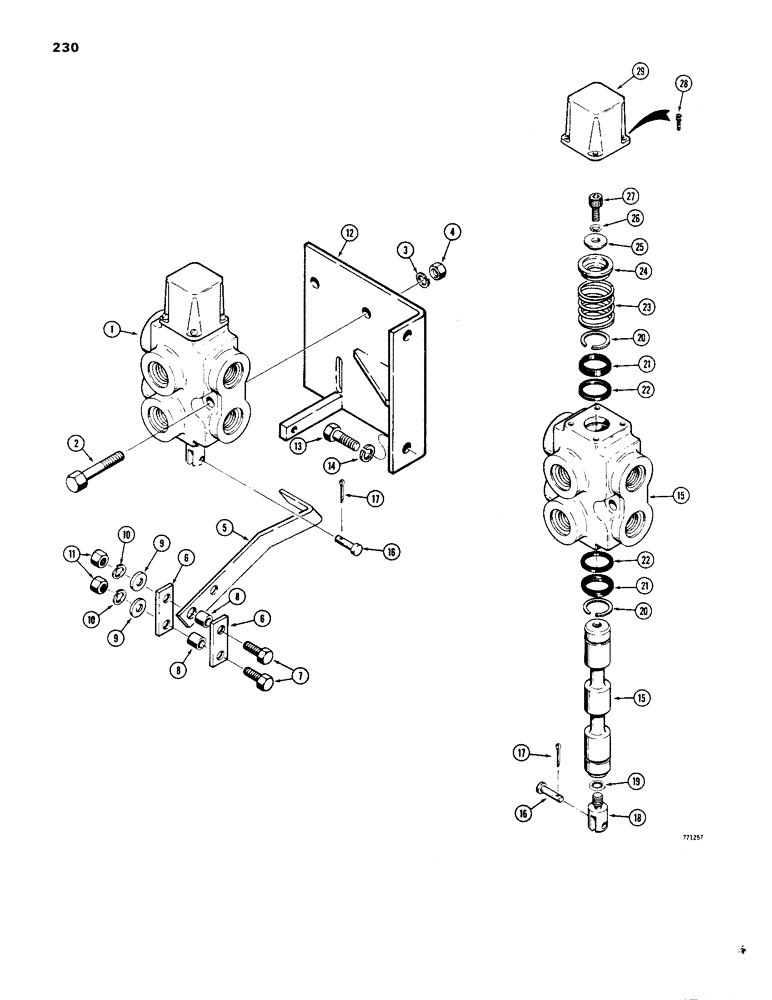

Схема запчастей Case 1450 - (230) - DIVERSION VALVE AND CONTROLS (ATP DOZER), R24819 DIVERSION VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

R24819

VALVE

- diversion, parts list below

1шт.

2

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

5

R28968

LEVER

HANDLE - valve

1шт.

6

R27514

LINK

- handle to heel plate

2шт.

7

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

8

R30545

BUSHING

SPACER - valve handle links

2шт.

9

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

25-104

NUT,1/4"-20, G5

2шт.

12

R28963

BRACKET

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

R24819

VALVE

- diversion, Includes: Ref. 15 - 29

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - valve

1шт.

16

R24869

AXLE PIN

PIN - clevis

1шт.

17

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

18

R24867

CLEVIS

- spool top

1шт.

19

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

20

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, #100, Ext, Crescent

2шт.

21

R24871

SEAL

- dust

2шт.

22

R24866

RING

SEAL - quad ring

2шт.

23

R30535

VALVE SPRING

SPRING

1шт.

24

R24872

SPRING SEAT

COLLAR - spool

1шт.

25

R33483

WASHER

- special

1шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

61-48

HEX SOC SCREW,1/4"-20 x 1/2"

SCREW - fillister head, 1/4" - 20 NC x 1/2"

1шт.

28

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

- fillister head, 1/4" - 20 NC x 3/4"

4шт.

29

D71490

CAP

- end

1шт.

Выбрано товаров: 30
