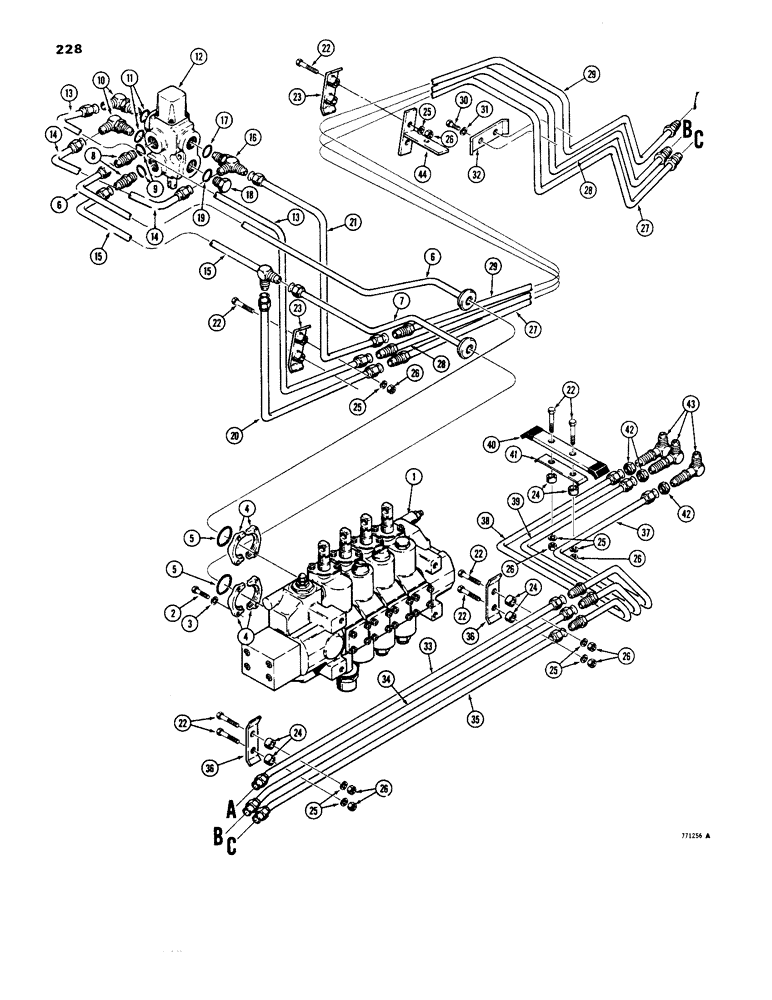

Запчасти Case 1450 (228) - DOZER TILT AND PITCH HYDRAULIC CIRCUIT (ATP DOZER), VALVE TO GRILLE (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - see Figure 282 for proper valve

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

3

92-6

LOCK WASHER,3/8"

8шт.

4

A12306

FLANGE

- split

4шт.

5

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

6

R37886

TUBE

1шт.

7

R37913

TUBE

- tee

1шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

FITTING - straight male, Incl. Ref 9

2шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

FITTING - 90 degree, adjustable, Includes: Ref. 11

2шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

O-RING

1шт.

12

R24819

VALVE

- diversion, parts list Figure 230

1шт.

13

R37884

TUBE

1шт.

14

R27405

TUBE

1шт.

15

R28951

TUBE

1шт.

16

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

FITTING - tee, adjustable, Includes: Ref. 17

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

214389

PLUG,3/4" - 16 ORB

Includes Ref. 19 Hex Hd, 3/4"-16 ORB

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

R37911

TUBE

1шт.

21

R37889

TUBE

1шт.

22

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

8шт.

23

R27400

CLAMP

1шт.

24

R29842

SPACER,3/8" Pipe x .469"

4шт.

25

92-6

LOCK WASHER,3/8"

8шт.

26

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

27

R42640

TUBE

1шт.

28

R42638

TUBE

1шт.

29

R42636

TUBE

1шт.

30

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

31

92-6

LOCK WASHER,3/8"

1шт.

32

R27400

CLAMP

1шт.

33

R35943

TUBE

1шт.

34

R35945

TUBE

1шт.

35

R37901

TUBE

1шт.

36

R27400

CLAMP

2шт.

37

R35939

TUBE,0.5" OD

- RH

1шт.

38

R37895

TUBE

- LH

1шт.

39

R35941

BUSHING

- center

1шт.

40

R35910

CLAMP

1шт.

41

R35908

SPACER

1шт.

42

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

3шт.

43

R29758

FITTING

- 90 degree, bulkhead

3шт.

44

R40277

BRACKET

1шт.
