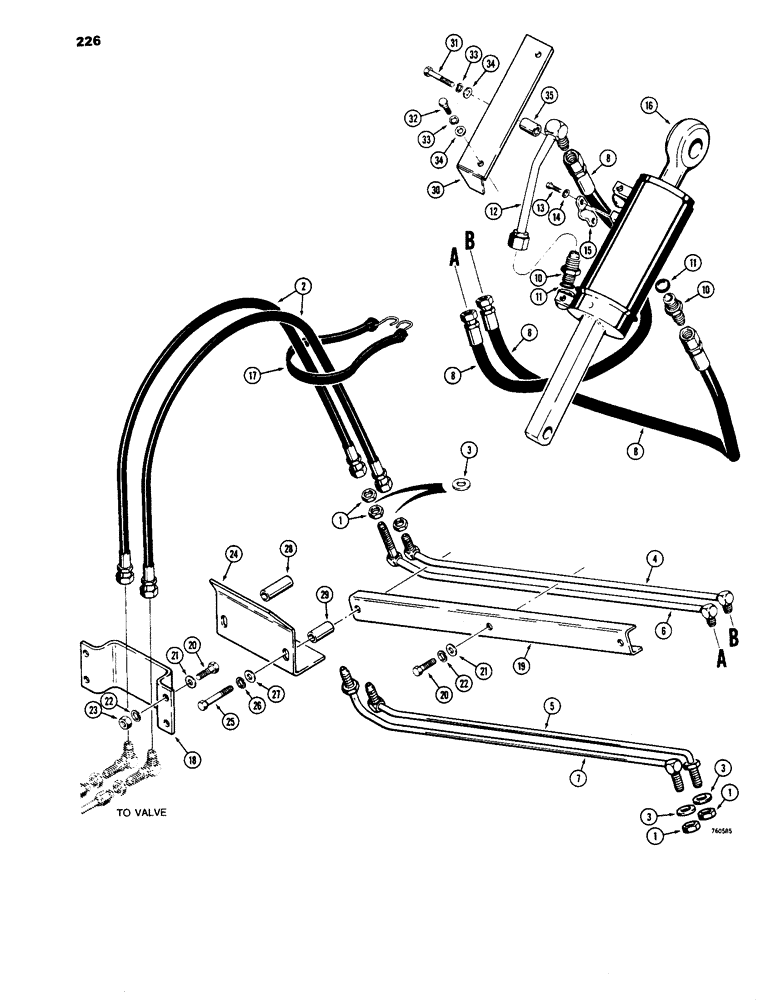

Запчасти Case 1450 (226) - DOZER TILT HYDRAULIC CIRCUIT (TILT DOZER), GRILLE TO CYLINDER, USE TRAC SN 8379095 & AFT, HYD GUARDS (08) - HYDRAULICS

1

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

4шт.

2

R28970

HOSE,12.70 mm ID x 1473.00 mm, SAE 100R2

- At blade 12.70 mm ID x 1473.00 mm, SAE 100R2

2шт.

3

D35268

SHIM,1/32" Thk

Washer, Special 1/32" Thk

4шт.

4

R32179

TUBE,0.5" OD x 48.36, 16.4" L

- upper, before tractor sn 8379206

1шт.

5

R35701

TUBE

- upper, tractor sn 8379206 and after

1шт.

6

R32177

TUBE,0.5" OD x 48.86, 15.8" L

- lower, before tractor sn 8379206

1шт.

7

R35703

TUBE

- lower, tractor sn 8379206 and after

1шт.

8

R10486

HOSE

- at cylinder, 30" (762 mm) long

2шт.

10

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Fitting, straight, male, Incl. Ref 11 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

R29008

TUBE,1/2" OD x 3.84, 6.68" L

- on cylinder, closed end

1шт.

13

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

HHCS - 3/8" - 16 NC x 1/2"

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

R26118

CLAMP

- tube

1шт.

16

G34550

CYLINDER

- tilt, parts list Figure 258

1шт.

17

R34737

STRAP

- hose

1шт.

18

R35823

COVER

GUARD - fitting, front of crawler, not on models with front counterweights, hydraulic guards

1шт.

19

R35700

CHANNEL

GUARD - channel, tubes on blade, hydraulic guards

1шт.

20

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Hydraulic guards Hex, 1/2"-13 x 1 1/2", G5, Full Thd

6шт.

21

195-33

WASHER,1/2"

- flat, , hydraulic guards 1/2"

6шт.

22

92-8

LOCK WASHER,1/2"

hydraulic guards 1/2"

6шт.

23

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, hydraulic guards

4шт.

24

R28698

PLATE ASSY.

GUARD - center of blade, hydraulic guards

1шт.

25

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

Hydraulic guards Hex, 1/2"-13 x 3 3/4", G5

2шт.

26

92-8

LOCK WASHER,1/2"

hydraulic guards 1/2"

2шт.

27

195-33

WASHER,1/2"

- flat, , hydraulic guards 1/2"

2шт.

28

R32602

BUSHING

SPACER - guard, long, hydraulic

1шт.

29

R28699

BUSHING

SPACER - guard, short, hydraulic

1шт.

30

R28337

GUARD

- cylinder, hydraulic

1шт.

31

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5, Hydraulic guards

31шт.

32

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Hydraulic guards Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

33

92-8

LOCK WASHER,1/2"

hydraulic guards 1/2"

2шт.

34

195-33

WASHER,1/2"

- flat, , hydraulic guards 1/2"

2шт.

35

R28472

SPACER

- guard, hydraulic

1шт.
