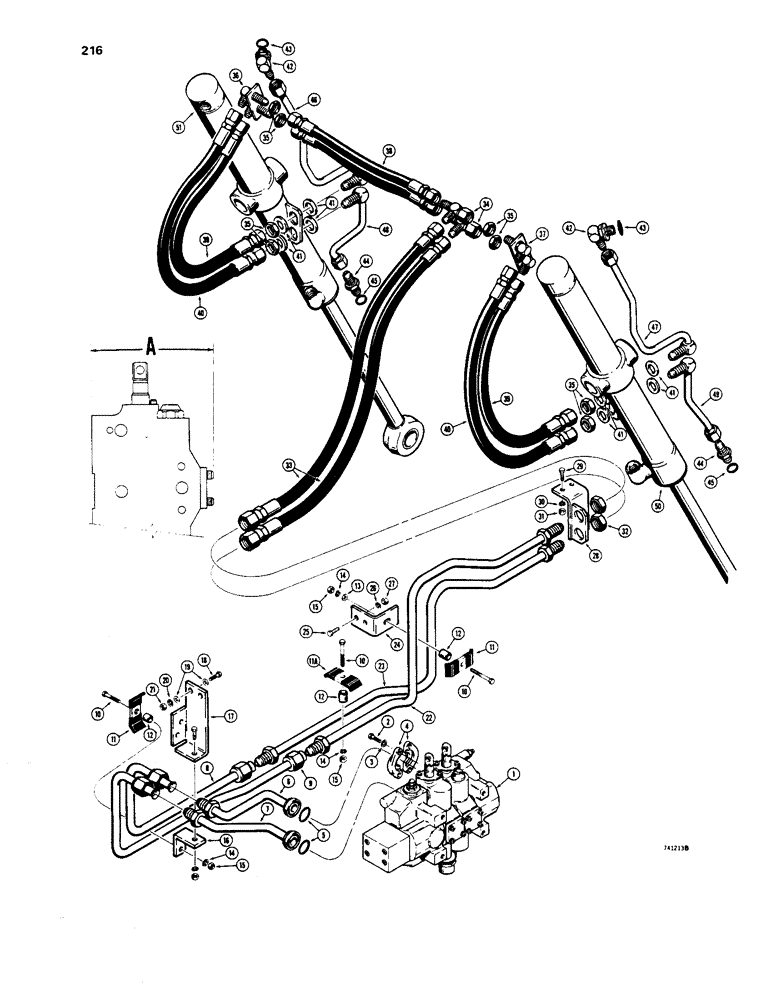

Запчасти Case 1450 (216) - DOZER LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - dozer, see Figures 274, 278 and 282 for valves

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

3

92-6

LOCK WASHER,3/8"

8шт.

4

A12306

FLANGE

CLAMP - split

4шт.

5

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

6

R28955

PIPE

TUBE - used with 6" (152 mm) section at A

1шт.

6

R40322

TUBE,1" OD x 13.18, 9.54" L

- used with 6-13/16" (173 mm) section at A

1шт.

Order when 6-13/16" (173 mm) replaces 6" (152 mm) valve section.

1шт.

7

R28957

TUBE - used with 6" (152 mm) section at A

1шт.

7

R40320

PIPE

TUBE - used with 6-13/16" (173 mm) section at A

1шт.

Order when 6-13/16" (173 mm) replaces 6" (152 mm) valve section.

1шт.

8

NLS

NO LONGER SERVICED

- intermediate, upper

1шт.

9

R33639

TUBE

- intermediate, lower

1шт.

10

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

3шт.

11

D40236

CLAMP

2шт.

11a

R36022

CLAMP

1шт.

12

R29848

BUSHING

SPACER - clamp

2шт.

13

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

14

92-6

LOCK WASHER,3/8"

3шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

16

R29260

BRACKET

- tube mounting

1шт.

17

R28967

BRACKET - tube retaining

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

19

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

20

92-6

LOCK WASHER,3/8"

3шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

22

R31193

TUBE - intermediate, lower front (replaced R31191 )

1шт.

23

R31191

TUBE - intermediate, uppe rear (replaced R31193 )

1шт.

24

R31190

BRACKET

- tube support

1шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

28

R31187

BRACKET - tube mount

1шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

32

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12

2шт.

33

D49224

HOSE

- front, 28" (711 mm) long

2шт.

34

218-5483

TEE,1-1/16" - 12 JIC x 1-5/16" - 12 JIC x 1-1/16" - 12 JIC

- male, female

2шт.

35

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, 1-1/16" - 12 NF

8шт.

36

R30963

MANIFOLD

- hydraulic, LH

1шт.

37

R30962

MANIFOLD

- hydraulic, RH

1шт.

38

D48432

HOSE

- crossover, 27-1/2" (699 mm) long

2шт.

39

L16415

HOSE,0.75" ID x 33.50", SAE 100R2A

ASSY, , Cylinder, Closed End 0.75" ID x 33.50", SAE 100R2A

2шт.

40

D39547

HOSE

- cylinder, rod end, 39" (991 mm) long

2шт.

41

195-2104

WASHER

- flat, 1-1/16"

8шт.

42

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, Incl. Ref. 43 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

43

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

44

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - straight, male, Incl. Ref. 45

2шт.

45

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

46

R28869

TUBE

- LH, tilt and mechanical angle dozer

1шт.

46

R37496

TUBE

- LH, angle tilt dozer

1шт.

47

R28870

TUBE

- RH, tilt and mechanical angle

1шт.

47

R37497

TUBE

- RH, angle tilt pitch dozer

1шт.

48

R28863

TUBE,0.75" OD

- RH, tilt and mechanical angle dozer

1шт.

48

R37509

TUBE

- RH, angle tilt pitch dozer

1шт.

49

R28864

TUBE

- LH, tilt and mechanical angle dozer

1шт.

49

R37508

TUBE,0.75" OD x 7.38, 1.70" L

- LH, angle tilt pitch dozer

1шт.

50

REF

INSTRUCTION

CYLINDER - tilt and mechanical angle dozer, see Figures 252 and 254

2шт.

50

REF

INSTRUCTION

CYLINDER - angle tilt pitch dozer, parts list Figure 256

2шт.
