Запчасти Case 1450 (212) - LOADER BUCKET TILT HYDRAULIC CIRCUIT, USED TRACTOR SN 8379804 & AFT (08) - HYDRAULICS

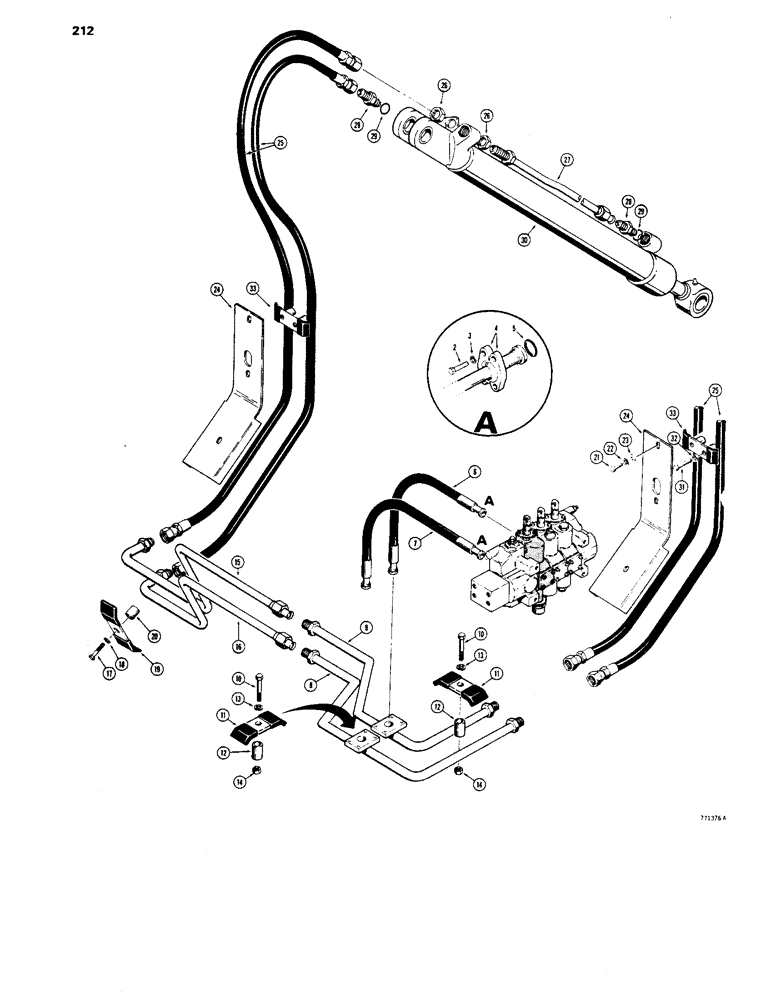

Схема запчастей Case 1450 - (212) - LOADER BUCKET TILT HYDRAULIC CIRCUIT, USED TRACTOR SN 8379804 & AFT (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - see Figures 274, 278 and 282 for proper valve

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

16шт.

3

92-6

LOCK WASHER,3/8"

16шт.

4

A12306

FLANGE

CLAMP - split

8шт.

5

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

6

R39128

HOSE

ASSEMBLY - port A

1шт.

7

R39127

HOSE

ASSEMBLY - port B

1шт.

8

R39137

TUBE

- RH, to port A

1шт.

9

R39133

TUBE,1" OD

- RH, to port B

1шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

11

R34049

CLAMP

2шт.

12

R29848

BUSHING

SPACER

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

15

R39131

TUBE

- LH, to port A

1шт.

16

R39129

TUBE

- RH, to port B

1шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

18

92-6

LOCK WASHER,3/8"

1шт.

19

R34049

CLAMP

- tube

1шт.

20

R29848

BUSHING

SPACER - clamp

1шт.

21

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

22

92-6

LOCK WASHER,3/8"

6шт.

23

195-25

WASHER,3/8"

- flat, 3/8"

6шт.

24

R28139

GUARD

- hydraulic hose

2шт.

25

R28746

HOSE

- 63" (1600 mm) long

4шт.

26

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12

4шт.

27

R32016

TUBE

- rod end of cylinder

2шт.

28

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - straight male, Incl. Ref. 29

4шт.

29

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

30

G34520

CYLINDER

- bucket tilt, parts list Figure 248

2шт.

31

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

32

92-6

LOCK WASHER,3/8"

4шт.

33

R31467

CLAMP

- hose

2шт.

Выбрано товаров: 33
