Запчасти Case 1450 (205A) - R42142 HYDRAULIC PUMP (08) - HYDRAULICS

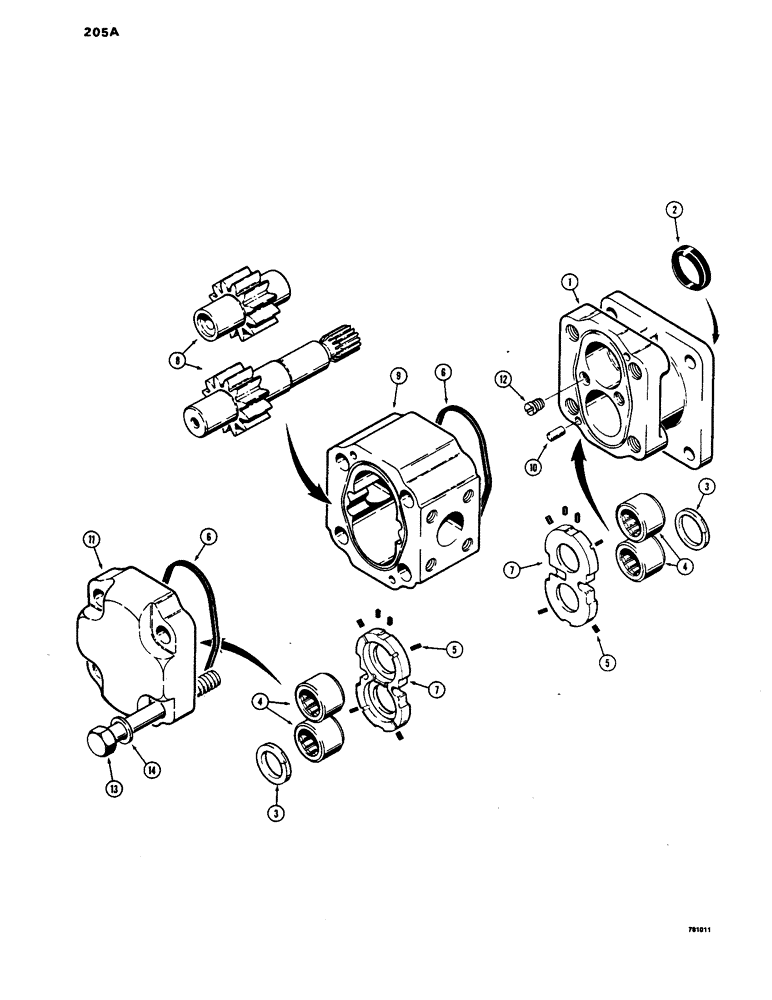

Схема запчастей Case 1450 - (205A) - R42142 HYDRAULIC PUMP (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

R42142

PUMP

- hydraulic, CS and S no. 3139611004, used on dozer and drawbar models, tractor sn 8380701 and after, Includes: Ref. 1 - 14

1шт.

1

D83213

COVER ASSY

COVER - shaft

1шт.

2

L32318

SEAL

- outer

1шт.

3

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

- inner

2шт.

4

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING - roller

4шт.

5

L32099

SEAL

- pocket

12шт.

6

D41391

O-RING

GASKET

2шт.

7

D70680

PLATE

- thrust

2шт.

8

D83211

GEAR-SET

GEAR SET

1шт.

9

D83212

HOUSING

- gear

1шт.

10

W16323

DOWEL

PIN - dowel

4шт.

11

D73613

COVER

- rear

1шт.

12

L32320

PLUG

1шт.

13

26-1092

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 8

HHCS - 5/8" - 11 NC x 5-3/4", grade 8

4шт.

14

D31957

WASHER

- hardened

4шт.

Выбрано товаров: 15
