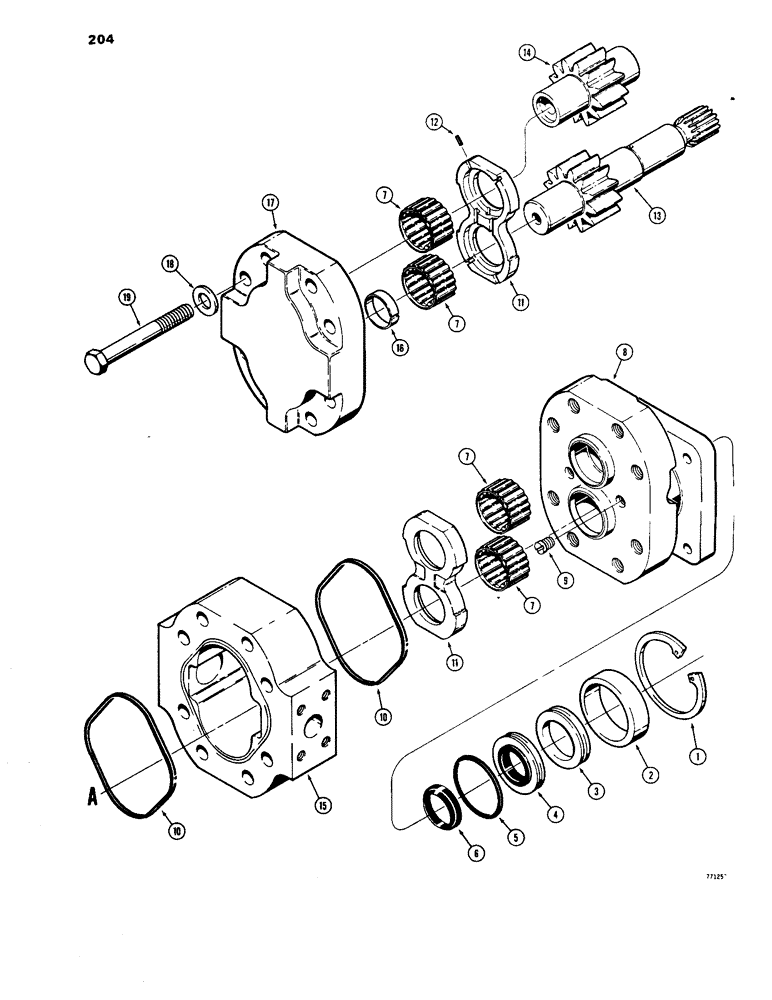

Запчасти Case 1450 (204) - R38214 HYDRAULIC PUMP (08) - HYDRAULICS

R38214

PUMP

- hydraulic, CS and S EXP900-311, used on all machines with sn 8379701 and after. For pump usage on dozers and drawbar models with tractor 8380701 and after, see Figure 205A, Includes: Ref. 1 - 19

1шт.

1

49477

RING, SNAP

3.156", Int, #315

1шт.

2

W14026

SPACER

1шт.

3

W14025

RETAINER

- seal

1шт.

4

A16796

SEAL

- oil

1шт.

5

A57116

O-RING,2.612 mm ID x 2.818 mm OD x -H288 mm

1шт.

6

S82765

SEALING RING

- oil

1шт.

7

A16793

NEEDLE BEARING

BEARING - roller

2шт.

8

D77512

VALVE

COVER - shaft

1шт.

9

L32320

PLUG

1шт.

10

S82795

GASKET

2шт.

11

S82770

PLATE

- thrust

2шт.

12

W14886

PLUG

SEAL - pocket

12шт.

S87297

GEAR-SET

GEAR SET, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

15

D77513

HOUSING

- gear

1шт.

16

S82765

SEALING RING

1шт.

17

W14027

COVER

- rear

1шт.

18

D31957

WASHER

- hardened

8шт.

19

26-1084

BOLT,Hex, 5/8" - 11 x 5-1/4", Gr 8

HHCS - 5/8" - 11 NC x 5-1/4", grade 8

8шт.
