Запчасти Case 1450 (202) - EQUIPMENT HYD CIRCUIT, HYD PUMP TO EQUIPMENT CONTROL VALVE SIDE PORTED PUMP, TRAC SN 8379701 & AFT (08) - HYDRAULICS

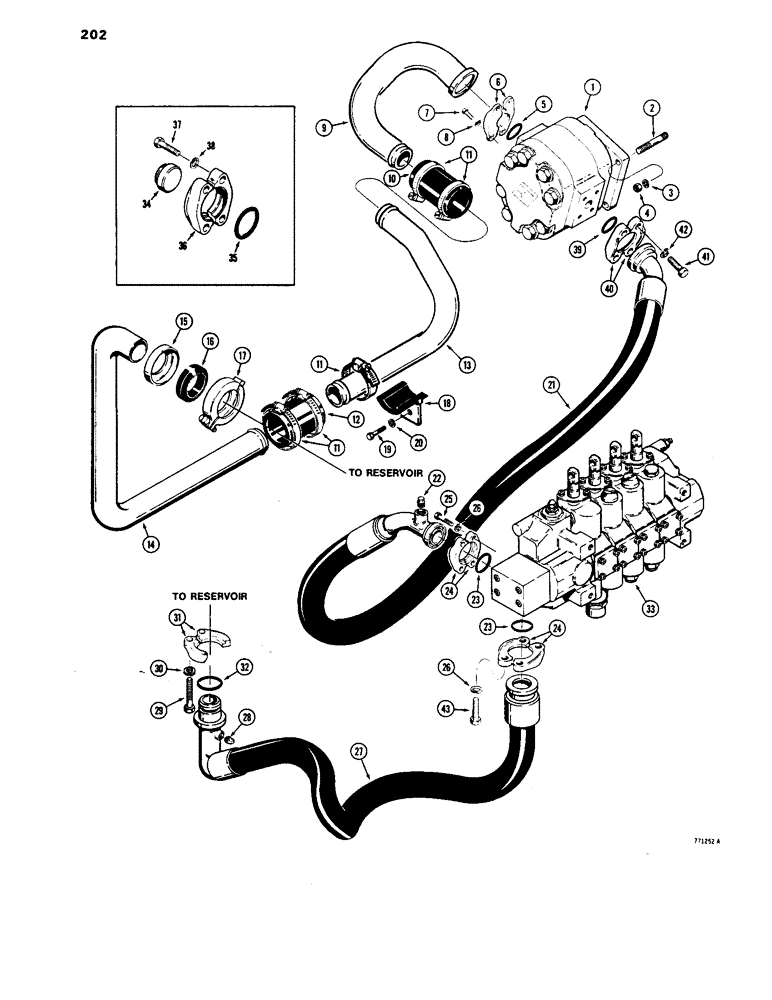

Схема запчастей Case 1450 - (202) - EQUIPMENT HYD CIRCUIT, HYD PUMP TO EQUIPMENT CONTROL VALVE SIDE PORTED PUMP, TRAC SN 8379701 & AFT (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

R38214

PUMP

- CS and S no. EXP900 - 311, parts list Figure 204

1шт.

1

R42142

PUMP

- CS and S no. 3139611004, parts list Figure 205A

1шт.

2

D45312

STUD

- 1/2" - 13 NC x 3-3/8"

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

5

L53821

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

- R38214 pump

1шт.

5

A35812

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

- R42142 pump

1шт.

6

A14157

FLANGE

CLAMP - R38214 pump

2шт.

6

A14141

FLANGE

CLAMP - R42142 pump

2шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

R38736

TUBE,1.998" ID x 2 - 2.38" OD

- R38214 pump

1шт.

9

R42138

TUBE

- R42142 pump

1шт.

10

R33682

HOSE

- 2" (51 mm) ID x 5-1/2" (140 mm) long

1шт.

11

214-176

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

5шт.

12

R25264

HOSE

- 2" (51 mm) ID x 4" (102 mm) long

1шт.

13

R38735

TUBE,2" OD

1шт.

14

R31565

TUBE

- at reservoir

1шт.

15

R30066

RETAINER

1шт.

16

R30065

GASKET

- tube

1шт.

17

R30064

CLAMP

- includes hardware

1шт.

18

R38740

BRACKET

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

R38397

HOSE

ASSEMBLY - R38214 pump

1шт.

21

R36280

HOSE

ASSEMBLY - R42142 pump

1шт.

22

221-665

PLUG,Hex Hd, 3/4"-14

- hex head, 3/4"

1шт.

23

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

24

A12301

CLAMP,Half

CLAMP - split flange

4шт.

25

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

26

92-7

LOCK WASHER,7/16"

WASHER - lock, 7/16"

8шт.

27

R34799

HOSE

ASSEMBLY

1шт.

28

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

1шт.

29

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

30

92-8

LOCK WASHER,1/2"

2шт.

31

R27612

CLAMP

- tube

2шт.

32

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

1шт.

33

REF

INSTRUCTION

VALVE - equipment, see Figures 274 thru 282

1шт.

34

R31813

PLUG

- valve, if used

2-4шт.

35

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

2-4шт.

36

A12306

FLANGE

CLAMP - seal

4-8шт.

37

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

16шт.

38

92-6

LOCK WASHER,3/8"

16шт.

39

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- R38214 pump

1шт.

39

L53821

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

- R42142 pump

1шт.

40

A12301

CLAMP,Half

CLAMP - R38214 pump

1шт.

40

A14157

FLANGE

CLAMP - R42142 pump

1шт.

41

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5, R38214 pump

4шт.

41

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

R42142 pump Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

42

92-7

LOCK WASHER,7/16"

WASHER - lock, 7/16"

4шт.

42

92-8

LOCK WASHER,1/2"

4шт.

43

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

4шт.

Выбрано товаров: 52
