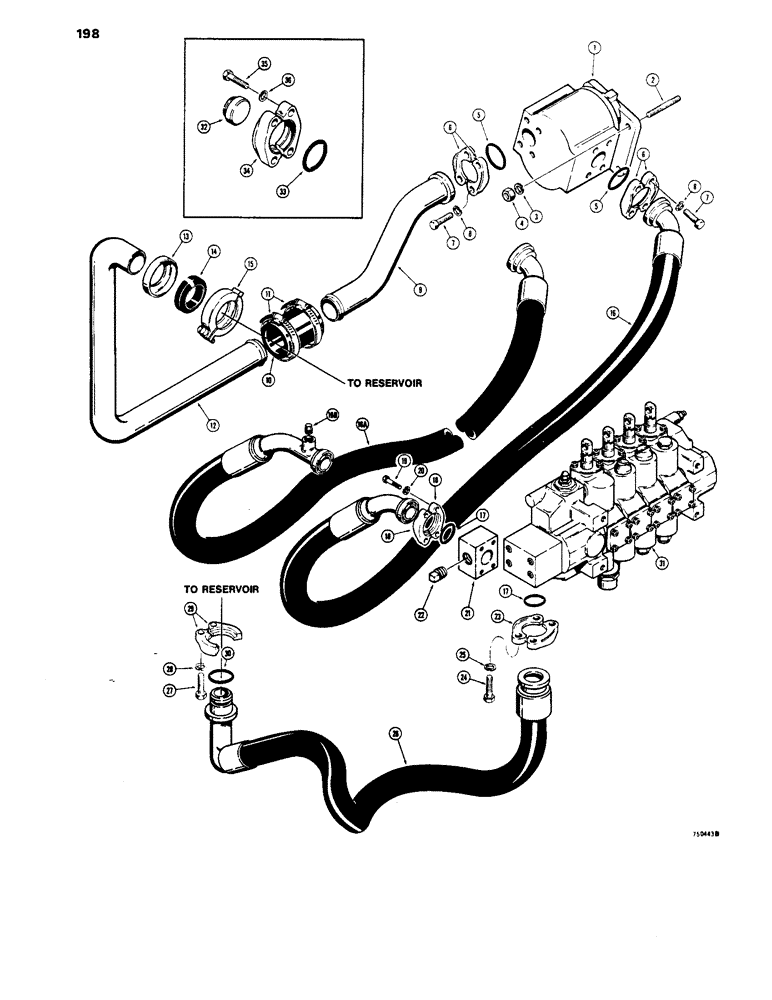

Запчасти Case 1450 (198) - EQUIPMENT HYDRAULIC CIRCUIT, HYDRAULIC PUMP TO EQUIPMENT CONTROL VALVE (08) - HYDRAULICS

1

R25852

PUMP

- hydraulic, parts list Figure 200

1шт.

2

D32386

STUD

- 1/2" - 13 NC x 3-1/8"

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

5

L53821

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

2шт.

6

A14157

FLANGE

CLAMP - split flange

4шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

8

92-8

LOCK WASHER,1/2"

8шт.

9

R28906

TUBE - hydraulic supply, at pump

1шт.

10

R25264

HOSE

- 2" ID x 4" (50.8 mm x 101.6 mm)

1шт.

11

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

12

R31565

TUBE

- hydraulic supply, at tank

1шт.

13

R30066

RETAINER

- gasket

1шт.

14

R30065

GASKET

- tube

1шт.

15

R30064

CLAMP

ASSEMBLY - tube

1шт.

16

R36820

HOSE ASSEMBLY - pump to valve, used with R34751 block

1шт.

16a

R36280

HOSE

ASSEMBLY -, Serial Range: pump-valve

1шт.

16b

221-665

PLUG,Hex Hd, 3/4"-14

- hex head, 3/4"

1шт.

17

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

18

A12301

CLAMP,Half

CLAMP - split flange

2шт.

19

13-752

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 5

R34750 hose Hex, 7/16"-14 x 3 1/4", G5

4шт.

19

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5, R36280 hose

4шт.

20

92-7

LOCK WASHER,7/16"

WASHER - lock, - 14 NC 7/16"

4шт.

21

R34751

FITTING

BLOCK - tee

1шт.

22

221-15

PLUG,Sq Hd, 3/4"-14

- square head, 3/4" NPT

1шт.

23

A12301

CLAMP,Half

CLAMP - split flange

2шт.

24

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

25

92-7

LOCK WASHER,7/16"

WASHER - lock, 7/16"

4шт.

26

R34799

HOSE

ASSEMBLY - hydraulic, return

1шт.

27

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

28

92-8

LOCK WASHER,1/2"

2шт.

29

R27612

CLAMP

- tube

2шт.

30

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

1шт.

31

REF

INSTRUCTION

VALVE - equipment, see Figures 274, 278 and 282 for proper valve

1шт.

32

R31813

PLUG

- valve, if used

2-4шт.

33

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

2-4шт.

34

A12306

FLANGE

CLAMP - seal

4-8шт.

35

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

16шт.

36

92-6

LOCK WASHER,3/8"

16шт.
