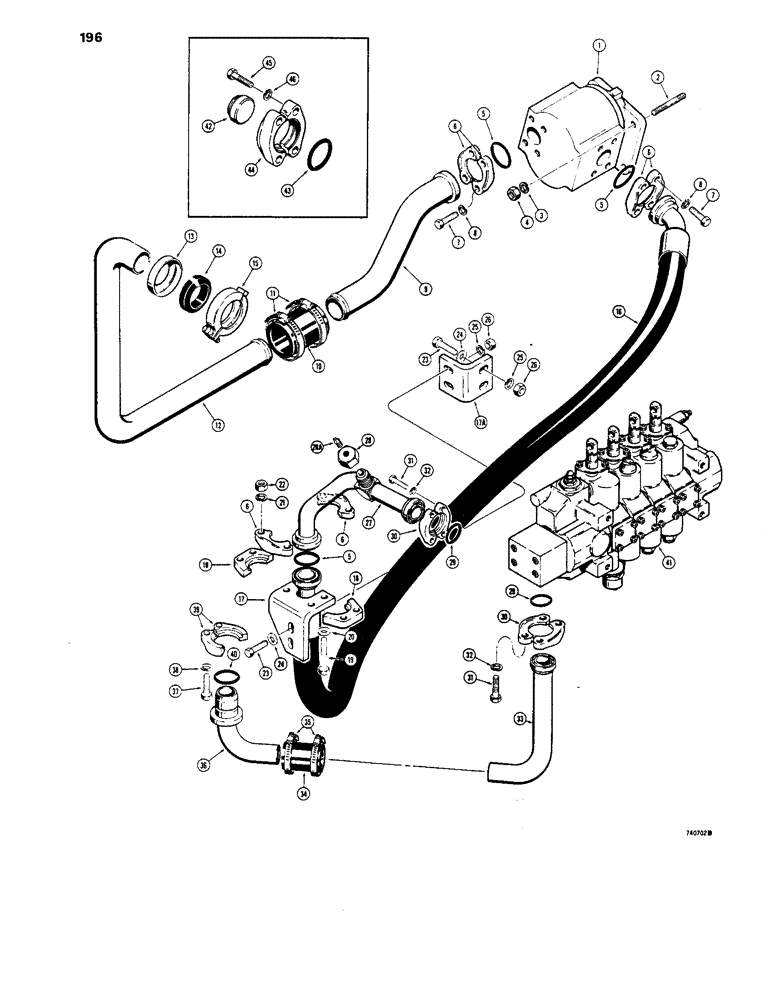

Запчасти Case 1450 (196) - EQUIPMENT HYD CIRCUIT, HYD PUMP TO EQUIPMENT CONTROL VALVE (08) - HYDRAULICS

1

R25852

PUMP

- hydraulic, parts list Figure 200

1шт.

2

D32386

STUD

- 1/2" - 13 NC x 3-1/8"

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

5

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

3шт.

6

A14157

FLANGE

CLAMP - split flange

6шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

8

92-8

LOCK WASHER,1/2"

8шт.

9

R28906

TUBE - hydraulic supply, at pump

1шт.

10

R25264

HOSE

- 2" ID x 4" (50.8 mm x 101.6 mm)

1шт.

11

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

12

R31565

TUBE

- hydraulic supply, at tank

1шт.

13

R30066

RETAINER

- gasket

1шт.

14

R30065

GASKET

- tube

1шт.

15

R30064

CLAMP

ASSEMBLY - tube

1шт.

16

R28910

HOSE

ASSEMBLY -, Serial Range: pump-valve

1шт.

17

R33616

BRACKET

- hose mounting

1шт.

17a

R33617

BRACKET - support

1шт.

18

R29211

CLAMP

- split flange, set of two

1шт.

19

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/4"

4шт.

20

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

21

92-8

LOCK WASHER,1/2"

4шт.

22

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

23

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

24

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

25

92-8

LOCK WASHER,1/2"

4шт.

26

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

27

R31080

TUBE

- hydraulic pressure, at valve

1шт.

28

R33548

CAP

- hydraulic

1шт.

28a

221-11

PLUG,Sq Hd, 1/8"-27

- square head, pipe

1шт.

29

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

2шт.

30

A12301

CLAMP,Half

CLAMP - split flange

4шт.

31

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

8шт.

32

92-7

LOCK WASHER,7/16"

WASHER - lock, 7/16"

8шт.

33

R33515

TUBE

- hydraulic, return

1шт.

34

R28920

HOSE

- 1/2" ID x 3-1/2" (12.7 mm x 88.9 mm)

1шт.

35

T50104

CLAMP

- hose

2шт.

36

R28901

TUBE

- hydraulic at tank

1шт.

37

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 2-3/4"

2шт.

38

92-8

LOCK WASHER,1/2"

2шт.

39

R27612

CLAMP

- tube

2шт.

40

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

1шт.

41

REF

INSTRUCTION

VALVE - equipment control, see Figures 274, 278 and 282 for proper valve

1шт.

42

R31813

PLUG

- valve, if used

2-4шт.

43

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

2-4шт.

44

A12306

FLANGE

CLAMP - seal

4-8шт.

45

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

16шт.

46

92-6

LOCK WASHER,3/8"

16шт.
