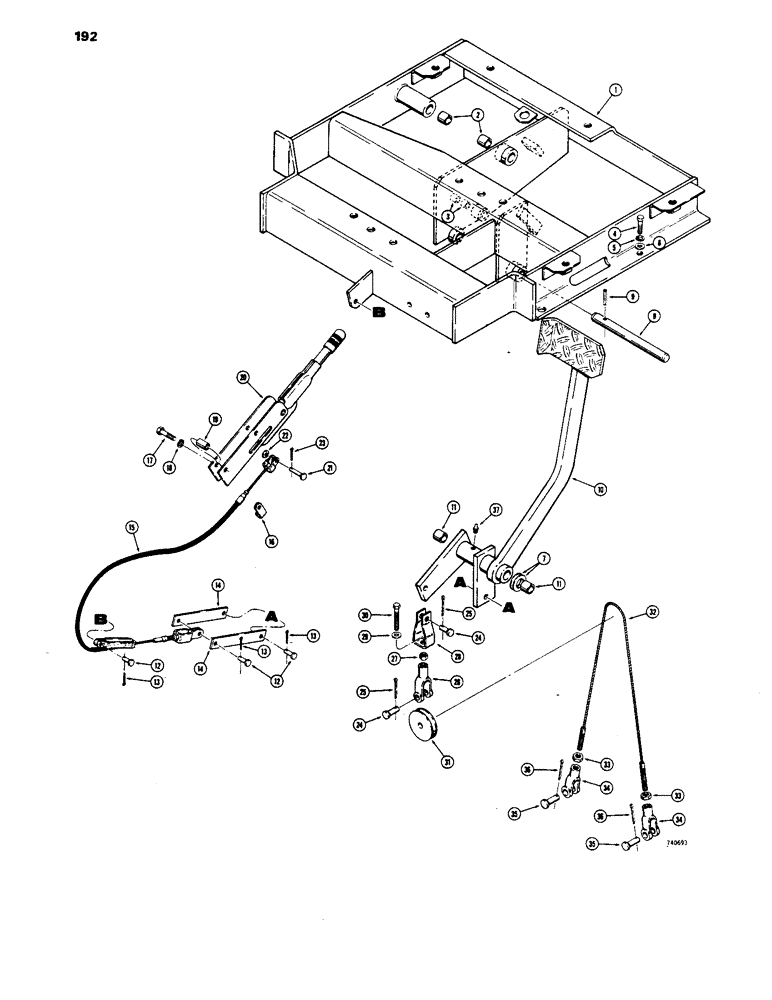

Запчасти Case 1450 (192) - MANUAL BRAKES (07) - BRAKES

1

REF

INSTRUCTION

FRAME - brake mount, see Figure 190 for service, Includes: Ref. 2 and 3

1шт.

2

R29752

BUSHING

- pedal shaft

2шт.

3

R27466

BUSHING

- follower cam shaft

2шт.

4

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

7

D35268

SHIM,1/32" Thk

(76 mm) 1/32" Thk

1шт.

8

R28661

SHAFT

- pedal

1шт.

9

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

10

R28649

PEDAL

- manual brake, Includes: Ref. 11

1шт.

11

R29752

BUSHING

- pedal

2шт.

12

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

3шт.

13

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

14

R28660

BAR

LINKS - brake

2шт.

15

D44006

CABLE

- brake, hand, models with RH brake

1шт.

15

R35061

CABLE

- brake, hand, models with LH brake

1шт.

16

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

- cable

1шт.

17

26-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

5/16"- 8 NC x 1-1/2", grade 8

2шт.

18

92-5

LOCK WASHER,5/16"

2шт.

19

D30863

TUBE

SPACER - lever, Includes: Ref. 20 - 23

1шт.

20

D40687

LEVER

- brake ( replaced NSS )

1шт.

21

D42458

PIN

- clevis

1шт.

22

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

23

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

24

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

25

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

26

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - rod end, adjustable

1шт.

27

25-116

NUT,Hex, 3/8"-24, G5

- hex, lock, 3/8" - 24 NF

1шт.

28

R29412

CLEVIS

- at brake levers

1шт.

29

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

30

114-205

HHCS - 3/8" - 24 NF x 2"

1шт.

31

D32543

SHEAVE

- cable pulley

1шт.

32

R28662

CABLE

- brakes, manual

1шт.

33

25-114

NUT,1/4"-28, G5

- hex, lock, 1/4" - 28 NF

2шт.

34

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - rod end, adjustable

2шт.

35

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis

2шт.

36

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

37

219-4

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight, grease, 1/8" NPT

1шт.
