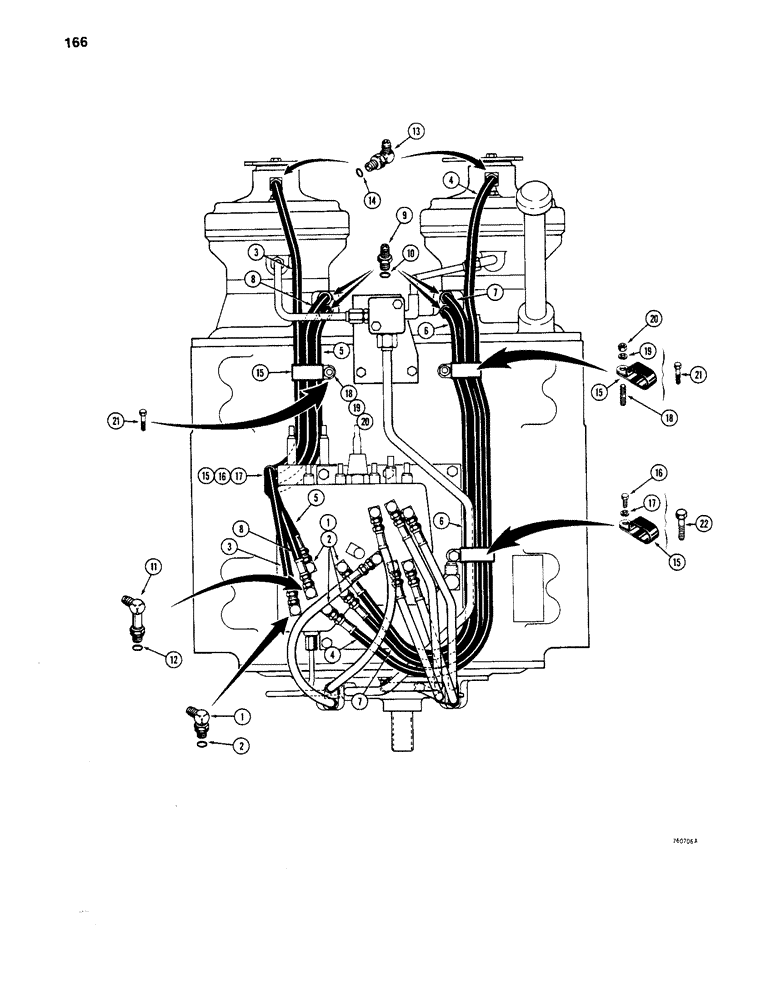

Запчасти Case 1450 (166) - TRANSMISSION HYDRAULIC CIRCUITS, VALVE TO BRAKES TRANS SN 2806301 & AFT (06) - POWER TRAIN

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

FITTING - 90 degree, male, Includes: Ref. 2

5шт.

2

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 6-1, 90 Duro, .468" ID x .078" Thk

1шт.

3

A50790

HYDRAULIC HOSE,0.25" ID x 44.00", SAE 100R1

- LH brake 0.25" ID x 44.00", SAE 100R1

1шт.

4

G100430

HYDRAULIC HOSE,6.35 mm ID x 1498.60 mm, SAE 100R1

- RH brake 6.35 mm ID x 1498.60 mm, SAE 100R1

1шт.

5

G100435

HYDRAULIC HOSE,6.35 mm ID x 787.40 mm, SAE 100R1

6.35 mm ID x 787.40 mm, SAE 100R1

2шт.

6

A51524

HYDRAULIC HOSE

HOSE - 46-1/2" (1181 mm) long

1шт.

7

G100431

HYDRAULIC HOSE,6.35 mm ID x 1168.40 mm, SAE 100R1

6.35 mm ID x 1168.40 mm, SAE 100R1

1шт.

8

A50789

HYDRAULIC HOSE,6.35 mm ID x 812.80 mm, SAE 100R1

6.35 mm ID x 812.80 mm, SAE 100R1

1шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FITTING - straight, male, Incl. Ref. 10

4шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 6-1, 90 Duro, .468" ID x .078" Thk

1шт.

11

R20739

FITTING

- 90 degree, adjustable, Includes: Ref. 12

1шт.

12

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 6-1, 90 Duro, .468" ID x .078" Thk

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

FITTING - 90 degree, adjustable, Includes: Ref. 14

2шт.

14

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 6-1, 90 Duro, .468" ID x .078" Thk

1шт.

15

G100534

CLAMP

- hose

4шт.

16

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1-2шт.

17

92-6

LOCK WASHER,3/8"

1-2шт.

18

G102128

BOLT

- 3/8" - 16 NC x 7/8", no longer used, order 13-616 bolts

2шт.

19

92-6

LOCK WASHER,3/8"

used with stud only 3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, used with stud only

2шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

22

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Mounts valve spacer to transmission housing Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.
