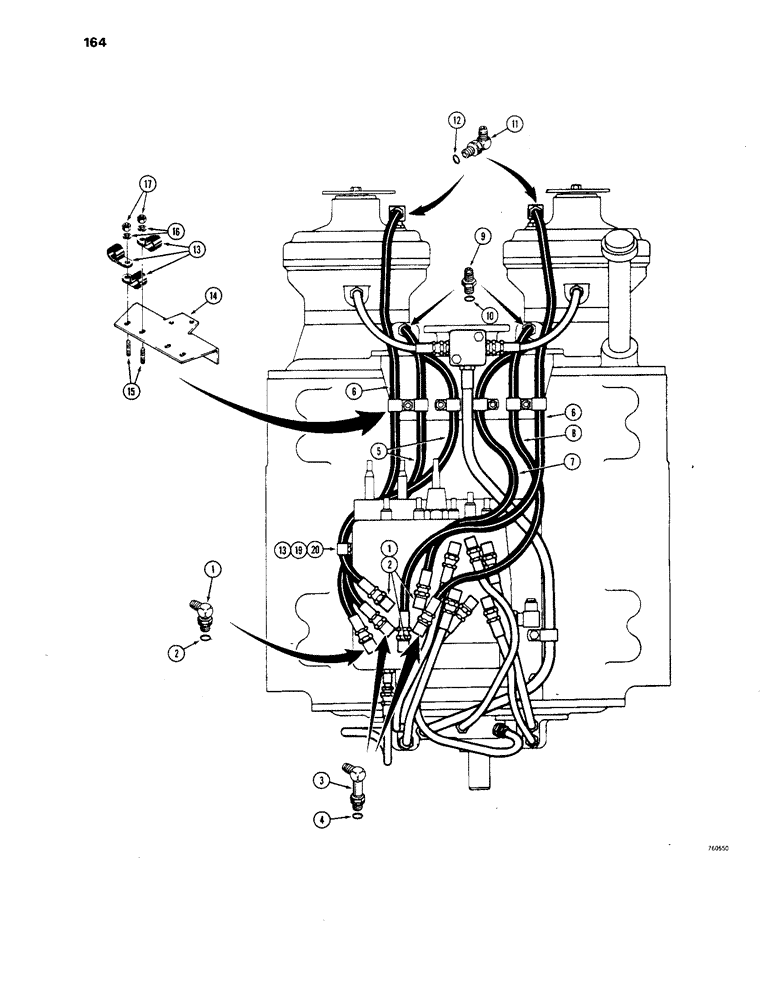

Запчасти Case 1450 (164) - TRANSMISSION HYDRAULIC CIRCUITS, VALVE TO BRAKES, BEFORE TRANS SN 2806301 (06) - POWER TRAIN

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

FITTING - 90 degree, adjustable, Includes: Ref. 2

4шт.

2

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 6-1, 90 Duro, .468" ID x .078" Thk

1шт.

3

R20739

FITTING

- 90 degree, male, Includes: Ref. 4

2шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 6-1, 90 Duro, .468" ID x .078" Thk

1шт.

5

A51523

HYDRAULIC HOSE

HOSE - 36" (914 mm) long

2шт.

6

A50790

HYDRAULIC HOSE,0.25" ID x 44.00", SAE 100R1

0.25" ID x 44.00", SAE 100R1

2шт.

7

A50789

HYDRAULIC HOSE,6.35 mm ID x 812.80 mm, SAE 100R1

6.35 mm ID x 812.80 mm, SAE 100R1

1шт.

8

A51458

HYDRAULIC HOSE

HOSE - 40" (1016 mm) long

1шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FITTING - straight, male, Incl. Ref. 10

4шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 6-1, 90 Duro, .468" ID x .078" Thk

1шт.

11

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

FITTING - 90 degree, adjustable, Includes: Ref. 12

2шт.

12

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 6-1, 90 Duro, .468" ID x .078" Thk

1шт.

13

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose

7шт.

14

A50787

BRACKET

PLATE - hose mount

1шт.

15

G102128

BOLT

- 3/8" - 16 NC x 1-1/2"

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

19

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.
