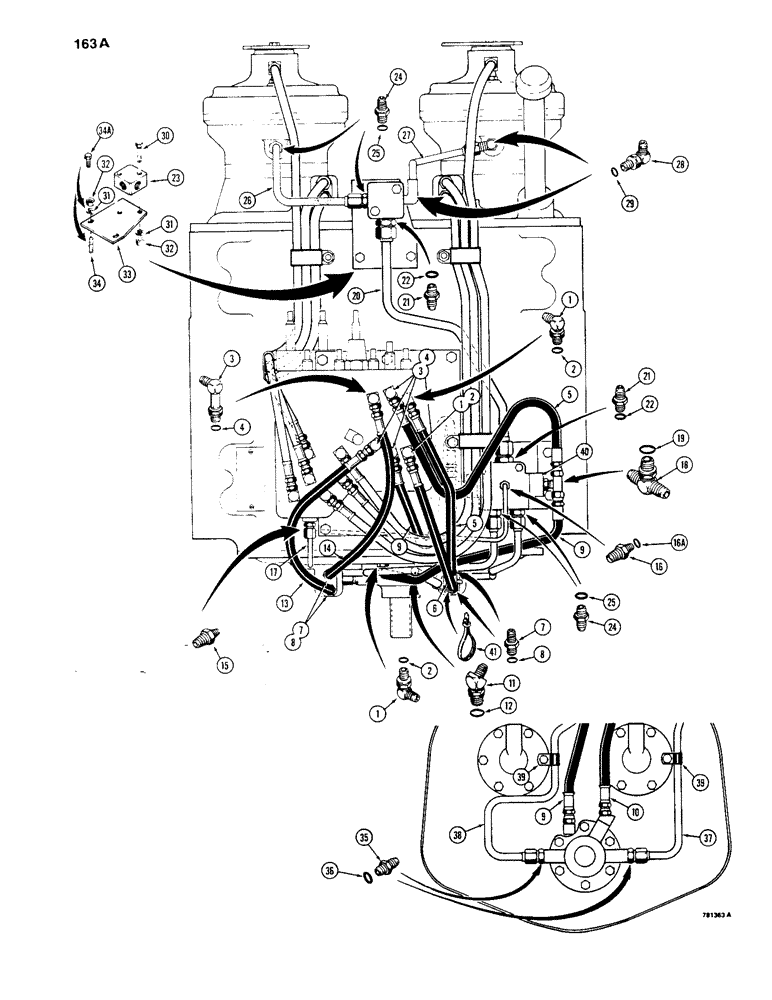

Запчасти Case 1450 (163A) - TRANSMISSION HYDRAULIC CIRCUITS, REAR OF TRANSMISSION TO VALVE & BRAKE, TRANS SN 2845401 & AFT (06) - POWER TRAIN

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

FITTING - 90 degree, adjustable, Includes: Ref. 2

3шт.

2

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

3

R20739

FITTING

- 90 degree, male, Includes: Ref. 4

4шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

5

G100432

HYDRAULIC HOSE,6.35 mm ID x 685.80 mm, SAE 100R1

6.35 mm ID x 685.80 mm, SAE 100R1

2шт.

6

G100425

HYDRAULIC HOSE,6.35 mm ID x 635.00 mm, SAE 100R1

6.35 mm ID x 635.00 mm, SAE 100R1

1шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FITTING - straight, male, Incl. Ref. 8

4шт.

8

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

9

A51522

HYDRAULIC HOSE

HOSE - 24" (610 mm) long

2шт.

10

G35437

HYDRAULIC HOSE,6.35 mm ID x 482.60 mm , SAE 100R1

6.35 mm ID x 482.60 mm, SAE 100R1

1шт.

11

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

FITTING - 45 degree, adjustable, Includes: Ref. 12

1шт.

12

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

13

G100424

HYDRAULIC HOSE,6.35 mm ID x 660.40 mm, SAE 100R1

6.35 mm ID x 660.40 mm, SAE 100R1

1шт.

14

G35440

HYDRAULIC HOSE,6.35 mm ID x 736.60 mm, SAE 100R1

6.35 mm ID x 736.60 mm, SAE 100R1

1шт.

15

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

FITTING - straight, male

1шт.

16

218-5056

HYD CONNECTOR,1/2"-20, 37 Degree x 1/2"-20, O-Ring

FITTING - straight, male, 1/2" - 20 NF threads

1шт.

16a

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

- 5-1, 90 Duro, .414" ID x .072" Thk, fitting, Includes: Ref. 16A

1шт.

17

G102721

TUBE

- hydraulic

1шт.

18

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

FITTING - adjustable tee, Includes: Ref. 19

1шт.

There is another 218-5182 Tee used on the other side of the diverter valve.

1шт.

19

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

20

G102722

TUBE - hydraulic

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - straight, male, Includes: Ref. 22

2шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

A136162

FITTING

BLOCK - hydraulic

1шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

FITTING - straight, male, Incl. Ref 25

4шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

G102306

TUBE,0.5" OD

- hydraulic, LH, brake lube

1шт.

27

G102109

TUBE,0.5" OD x 6.3, 5.79" L

- hydraulic, RH, brake lube

1шт.

28

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

FITTING - 90 degree, adjustable, Includes: Ref. 29

2шт.

29

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

30

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

31

92-6

LOCK WASHER,3/8"

2-4шт.

32

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2-4шт.

33

G100533

BRACKET

- block mounting

1шт.

34

G102128

BOLT

- 3/8" - 16 NC x 1-9/16", no longer used, order 13-616 bolts

2шт.

34a

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used w/o lock washer and nut Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

35

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

FITTING - straight, male, Includes: Ref. 36

2шт.

36

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

37

G102723

TUBE

- RH

1шт.

38

G102724

TUBE,0.5" OD x 10.34" L

- LH

1шт.

39

49838

CLAMP

2шт.

40

G102234

VALVE

- diverter, parts list Figure 163C

1шт.

41

L18331

CABLE TIE,375.9mm L, Nylon

TIE STRAP - right-hand, Serial Range: tube-cap

1шт.
