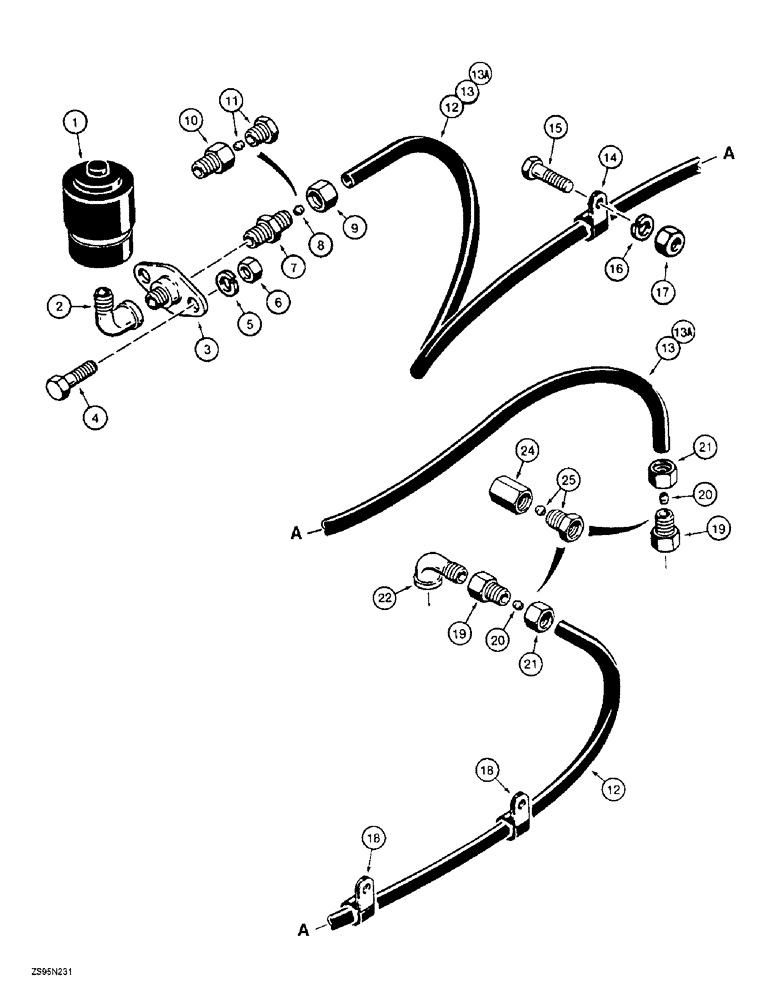

Запчасти Case 1155E (2-136) - AIR RESTRICTION INDICATOR (02) - ENGINE

1

A59569

INDICATOR

- restriction, air cleaner

1шт.

2

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street, brass 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

3

H357707

FLANGE

BRACKET - restriction indicator mounting

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER - compression, 1/8 tube OD x 1/8 inch PT, straight, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

8

D37176

SLEEVE

- compression

1шт.

9

D37362

TUBE NUT

- compression

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER - compression, 1/8 tube OD x 1/8 inch PT, straight, Includes: Ref. 10 & 11

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

11

222-500

TUBE NUT,5/16" - 24 NPT

NUT - hex, 1/8 tube OD x 5/16-24 inch, adapter, with sleeve

1шт.

12

R52017

LARGE HOSE

TUBE - nylon, 58 inch (1473 mm) long, all dozer models except 62 inch gauge long track, cut from S118583X, see below

1шт.

13

D36961

TUBE

- nylon, 42 inch (1067 mm) long, loader models, cut from S118583X bulk tube, see below

1шт.

13a

D36946

TUBE

- nylon, 29 inch (767 mm) long, 62 inch gauge long track, cut from S118583X bulk tube, see below

1шт.

14

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- tube, P-type, 3/16 inch ID, dozer models only, at rear of muffler

1шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

16

492-11038

LOCK WASHER,3/8"

1шт.

17

425-106

NUT,3/8"-16, Cl 5

1шт.

18

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- P-type, 3/16 inch ID, dozer models only, use air cleaner mounting bracket harware

2шт.

D35091

PIPE FITTING

ADAPTER ASSEMBLY - straight, compression, if used, see Ref. 24 and 25 below, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - compression fitting

1шт.

20

D37176

SLEEVE

- compression

1шт.

21

D37362

TUBE NUT

- compression, fitting

1шт.

22

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- street, 90 degree, 1/8 inch PT, if used, see Ref. 19-21

1шт.

222-1400

HYD CONNECTOR,Fem, 5/16"-24

ADAPTER - compression, 1/8 inch tube OD x 1/8 inch PT, Includes: Ref. 24 & 25

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

25

222-500

TUBE NUT,5/16" - 24 NPT

NUT - hex, 1/8 tube OD x 5/16-24 inch, adapter, with sleeve

1шт.

S118583X

PLASTIC-RUBBER TUBE

TUBE - nylon, bulk, 1/8 inch (3 mm) OD x 300 inch (7620 mm) long

1шт.
