Запчасти Case 1155E (2-134) - AIR CLEANER AND PRECLEANER ASSEMBLIES AND, AIR INTAKE PARTS- USED ON ALL MODELS (02) - ENGINE

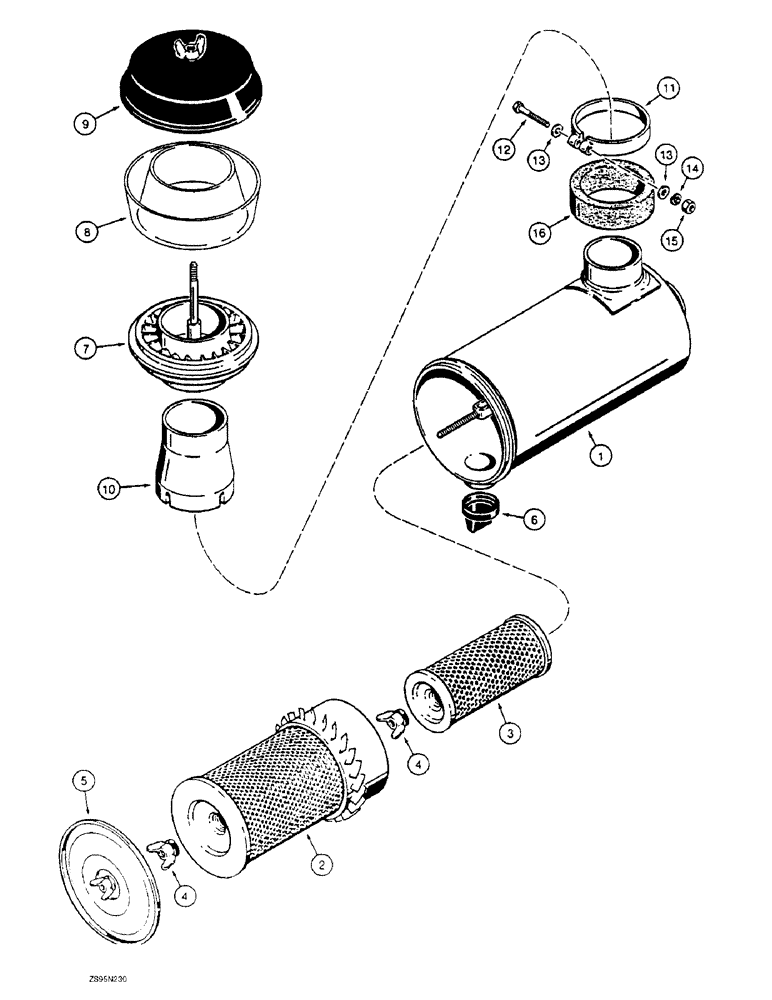

Схема запчастей Case 1155E - (2-134) - AIR CLEANER AND PRECLEANER ASSEMBLIES AND, AIR INTAKE PARTS- USED ON ALL MODELS (02) - ENGINE
5
11
10
3
14
9
1
4
13
12
2
13
7
8
16
4
6
15

Артикул

Название

Примечание

Количество

A170613

AIR CLEANER

CLEANER ASSEMBLY - air, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

R29295

FILTER, ELEMENT

ELEMENT - primary

1шт.

3

R36361

FILTER, ELEMENT

ELEMENT - secondary

1шт.

4

L35499

NUT

- wing

2шт.

5

A184522

COVER

- air cleaner, with locking tab for wing nut

1шт.

6

S113982

CAP

VALVE - dust, rubber, 3 inch (76 mm)

1шт.

R48592

PRECLEANER

ASSEMBLY - air cleaner, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - precleaner

1шт.

8

L30671

HOUSING

BOWL - precleaner

1шт.

9

L30669

COVER

- precleaner

1шт.

10

R48590

ORIFICE RING

STACK - air cleaner inlet

1шт.

11

R48589

CLAMP

- air cleaner stack

1шт.

12

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

14

492-11038

LOCK WASHER,3/8"

1шт.

15

129-770

NUT,3/8"-16, G5

- hex, 3/8 inch NC

1шт.

16

R52871

FOAM

PAD - seal, air cleaner stack

1шт.

Выбрано товаров: 18
