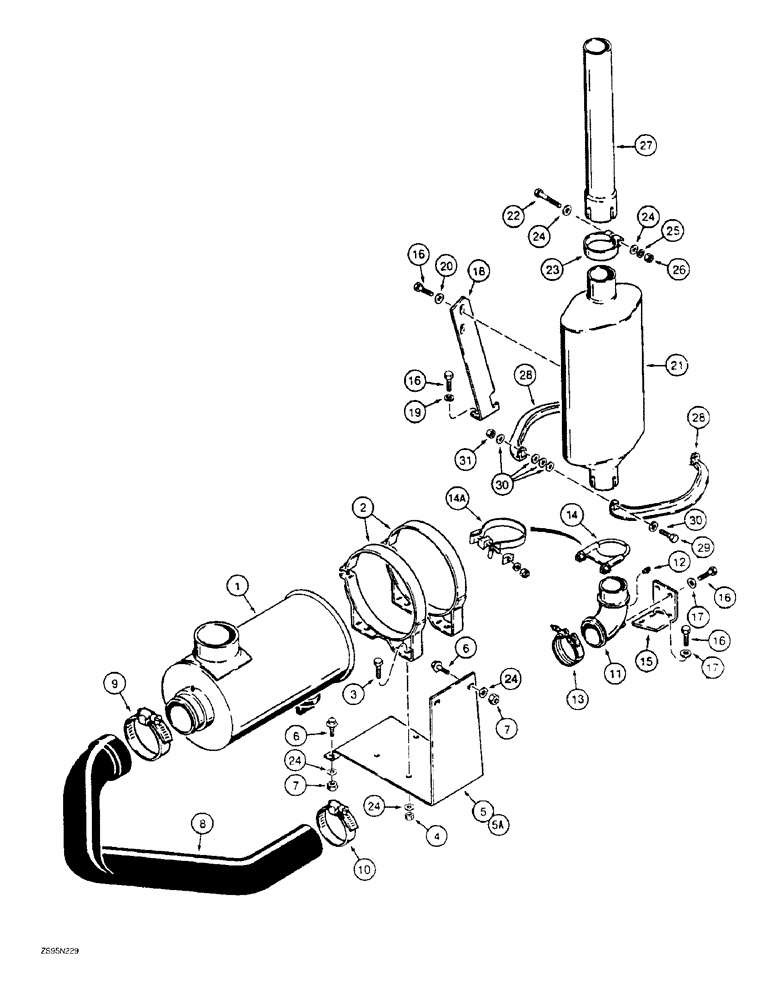

Запчасти Case 1155E (2-132) - AIR CLEANER AND MUFFLER, 6T-590 ENGINE, 62 INCH GAUGE LONG TRACK DOZERS & LOADER MODELS (02) - ENGINE

1

A170613

AIR CLEANER

CLEANER ASSEMBLY - air, parts list Figure 2-134

1шт.

2

A16574

BAND

CLAMP - air cleaner, includes hardware

2шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

4

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

4шт.

5

R53968

SUPPORT

BRACKET - mounting, loader models only

1шт.

5

R54953

SUPPORT

BRACKET - mounting, 62 inch gauge long track dozer models only

1шт.

6

121-231

SERRATED BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

7

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

4шт.

8

R48635

INTAKE AIR HOSE,76.00 mm ID, 102 mm ID x 486.00 mm, SAE J200

- Air cleaner to turbocharger 76.00 mm ID, 102 mm ID x 486.00 mm, SAE J200

1шт.

9

214-3172

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

CLAMP - adj, 3-3/4 - 4-5/8 inch dia, hose, at cleaner

1шт.

10

214-3256

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm, W/ Liner

CLAMP - adj, 2-3/4 - 3-5/8 inch dia, hose, at turbocharger

1шт.

11

A173623

ELBOW

- turbocharger exhaust

1шт.

12

221-841

PLUG

- hex socket, 1/4 inch PT, turbo elbow

1шт.

13

A170467

CLAMP,72mm ID

- elbow, at turbocharger, includes hardware

1шт.

14

S65056

CLAMP

- elbow, at muffler, no longer used, order 122594A1 clamp below

1шт.

14a

122594A1

CLAMP,86.46mm

- elbow, at muffler

1шт.

15

A171823

BRACKET

- elbow mounting

1шт.

16

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

8шт.

17

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

4шт.

18

R58674

SUPPORT

BRACKET - muffler support, was R48841, if used

1шт.

19

892-11010

LOCK WASHER,M10

2шт.

20

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, special, hardened

2шт.

21

A171650

MUFFLER

- turbocharger exhaust, with side mounting bracket, no longer available, order 1547970C1

1шт.

21

1547970C1

MUFFLER

- turbocharger exhaust without side mounting bracket

1шт.

22

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

23

R48710

CLAMP,85.7mm

- exhaust, Serial Range: pipe-muffler

1шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), hardened 3/8", SAE

2-6шт.

25

492-11038

LOCK WASHER,3/8"

1шт.

26

129-770

NUT,3/8"-16, G5

- hex, 3/8 inch NC

1шт.

27

R51642

PIPE

- exhaust, muffler

1шт.

28

R52400

FIXING BRACKET

FLANGE - muffler, above hood

2шт.

29

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

30

H426775

WASHER

- flat, special, hardened

10шт.

31

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.
