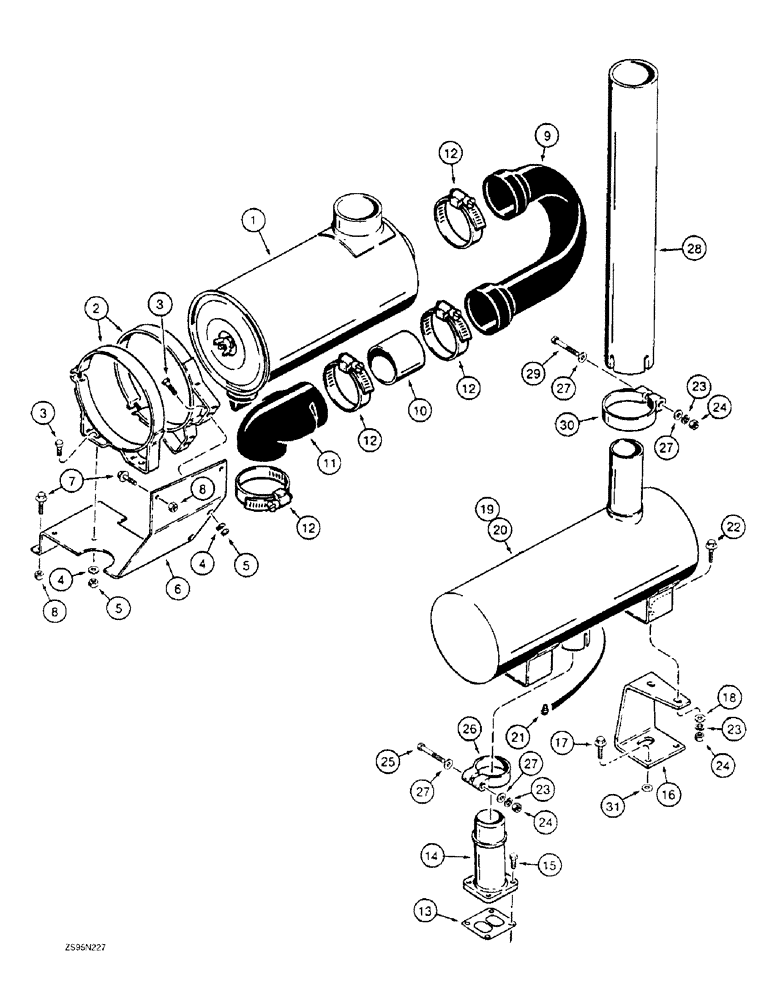

Запчасти Case 1155E (2-128) - AIR CLEANER & MUFF., 6-830 ENG (02) - ENGINE

1

A170613

AIR CLEANER

CLEANER ASSEMBLY - air, parts list Figure 2-134

1шт.

2

A16574

BAND

CLAMP - air cleaner, includes hardware

2шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

4

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

4шт.

5

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

4шт.

6

R53967

SUPPORT

BRACKET - mounting, air cleaner

1шт.

7

121-231

SERRATED BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

8

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

4шт.

9

R54397

INTAKE AIR HOSE,70.00 mm ID, 101.60 mm ID x 268.00 mm, SAE J200

- Formed, From air cleaner 70.00 mm ID, 101.60 mm ID x 268.00 mm, SAE J200

1шт.

10

S119354

TUBE,4" OD x 5" L

- straight, connector

1шт.

11

R54396

HOSE

Elbow, Formed Rubber, to Engine Manifold

1шт.

12

214-3172

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

CLAMP - adj, 3-3/4 - 4-5/8 inch dia, air cleaner hoses

4шт.

13

A170679

GASKET

- muffler adapter

1шт.

14

A173606

ADAPTER

- muffler

1шт.

15

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

16

R54659

SUPPORT

BRACKET - muffler mounting

2шт.

17

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9, Replaces regular hex head bolt and flat washer used on some models

4шт.

18

D41740

WASHER

- flat, special, 3/8 inch, hardened

4шт.

19

A173600

MUFFLER

- standard, if used

1шт.

20

A173603

MUFFLER

- spark arrester, if used, Includes: Ref. 21

1шт.

21

217-77

PLUG

- square, 3/8 inch PT, brass

1шт.

22

121-231

SERRATED BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

23

492-11038

LOCK WASHER,3/8"

6шт.

24

129-770

NUT,3/8"-16, G5

- hex, 3/8 inch NC

6шт.

25

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch

1шт.

26

R27691

CLAMP

-, Serial Range: muffler-adapter

1шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

28

R51641

PIPE

- exhaust, Serial Range: clamps-hood

1шт.

29

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

30

R27699

CLAMP,114.3mm

- exhaust, Serial Range: pipe-hood

1шт.

31

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Used under item 16 bracket in production on some models, if used 3/8"

4шт.
