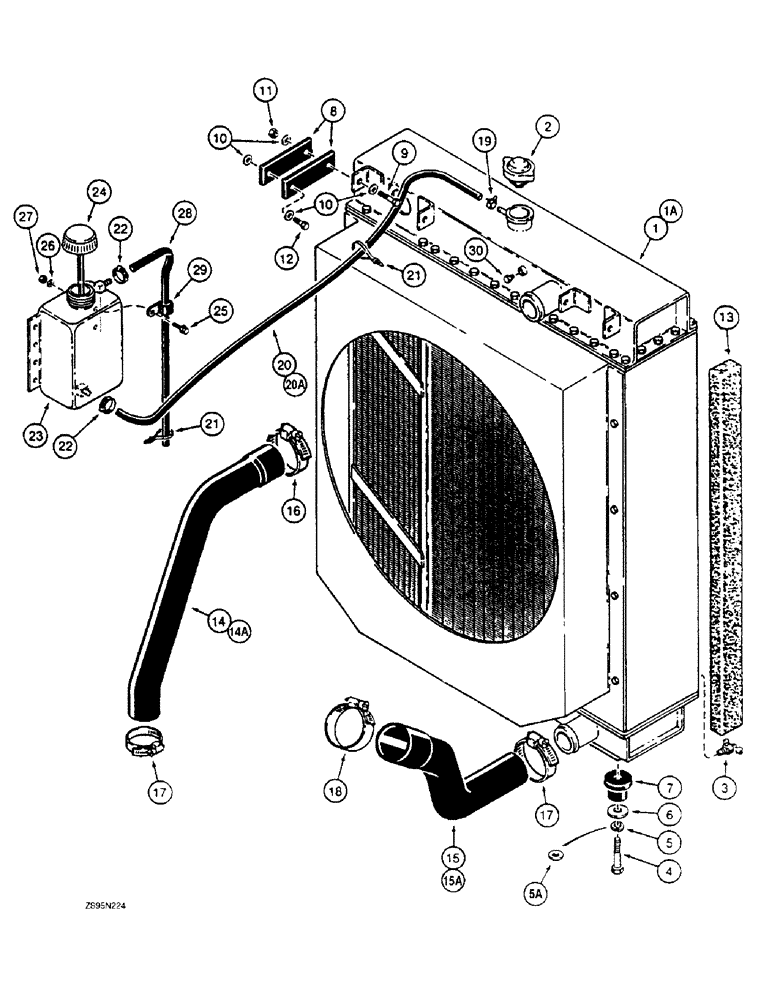

Запчасти Case 1155E (2-122) - RADIATOR MOUNTING AND COOLANT RECOVERY SYSTEM, 6T-590 ENG 62" GUAGE LONG TRACK DOZERS & LOADER MODEL (02) - ENGINE

1

R52599

RADIATOR

ASSEMBLY - for correct assembly and components, see Figures 2-124 and 2-126, loader models only

1шт.

1a

143135A1

RADIATOR

ASSEMBLY - for correct assembly and components, see Figure 2-126, 62 inch gauge long track dozer models only

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

217-92

COCK

VALVE - 1/4 inch PT, radiator drain

1шт.

4

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

2шт.

5

R24718

WASHER

- flat, hardened, special

2шт.

5a

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

6

D25022

WASHER

- flat, special, hardened

2шт.

7

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

INSULATOR - vibration

2шт.

8

D73500

STRAP

- radiator mounting

4шт.

9

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

10

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- flat, special

8шт.

11

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, use with Loctite

2шт.

13

REF

INSTRUCTION

PAD - non-recirculation, 2 (51 mm) x 31-5/16 inch (795 mm), cut from R30870, see below

2шт.

14

R54515

RADIATOR HOSE,45.00 mm ID, 51.00 mm ID x 397.00 mm, SAE 20R4 Class SC or SAE 20R4 Class D1

HOSE - radiator, upper, loader models only

1шт.

14a

R54837

RADIATOR HOSE,45.00 mm ID, 51.00 mm ID x 465.00 mm, SAE 20R4 Class C or SAE 20R4 Class D1

HOSE - radiator, upper, 62 inch gauge long track dozer models only

1шт.

15

R54511

RADIATOR HOSE,51.00 mm ID, 58.00 mm ID x 284.00 mm, SAE 20R4 Class C or SAE 20R4 Class D1

HOSE - radiator, lower, loader models only

1шт.

15a

R54838

RADIATOR HOSE,51.00 mm ID, 58.00 mm ID x 423.00 mm, SAE 20R4

Lower, 62.00" Gauge Long Track Dozer Models Only 51.00 mm ID, 58.00 mm ID x 423.00 mm, SAE 20R4

1шт.

16

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

CLAMP - adj, 2-1/4 - 3-1/8 inch dia, adjustable, heavy duty, upper radiator hose

1шт.

17

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

CLAMP, HOSE, , Adj., Radiator hoses 1.75/2.625 HD Worm, W/liner

3шт.

18

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP, HOSE, , Adjustable, Heavy duty, Lower radiator hose at radiator #44, 2.31/3.25 Type F Worm

1шт.

19

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - spring type, coolant bottle hose at radiator

1шт.

20

R53522

HOSE

- 27-9/16 inch (700 mm) long, radiator to coolant bottle, cut from L126767 bulk hose, see below, loader models only

1шт.

20a

A171872

HOSE,8.30 mm ID x 1000.00 mm, SAE J30, SAE 20R4 PER SAE j20e

7.50 mm ID, 8.30 mm ID x 1000.00 mm, SAE J30 - Radiator to Coolant Bottle, Cut from L126767 Bulk Hose, See below, 62" Gauge Long Track Dozer Models Only

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

22

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj, 1/4 - 5/8 inch dia, hoses at coolant bottle

2шт.

23

A184374

RESERVOIR

- coolant recovery

1шт.

24

1547924C1

CAP

- coolant recovery bottle

1шт.

25

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

26

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

27

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

4шт.

28

A171872

HOSE,8.30 mm ID x 1000.00 mm, SAE J30, SAE 20R4 PER SAE j20e

7.50 mm ID, 8.30 mm ID x 1000.00 mm, SAE J30 - Coolant Bottle drain, Cut from L126767 Bulk Hose, See below

1шт.

29

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Drain hose, use bottle mounting hardware 1/2", Insul, 3/8" Bolt

1шт.

30

217-86

PLUG,Hex Hd, 1/4"-18, Brass

- hex, 1/4 inch PT, brass

1шт.

R30870

PAD

- bulk, 54 (1372) x 72 (1829) x 1 inch (25 mm) thick

1шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.

345-44

ADHESIVE

- spray can, 3M No. 74, 23 ounce

1шт.
