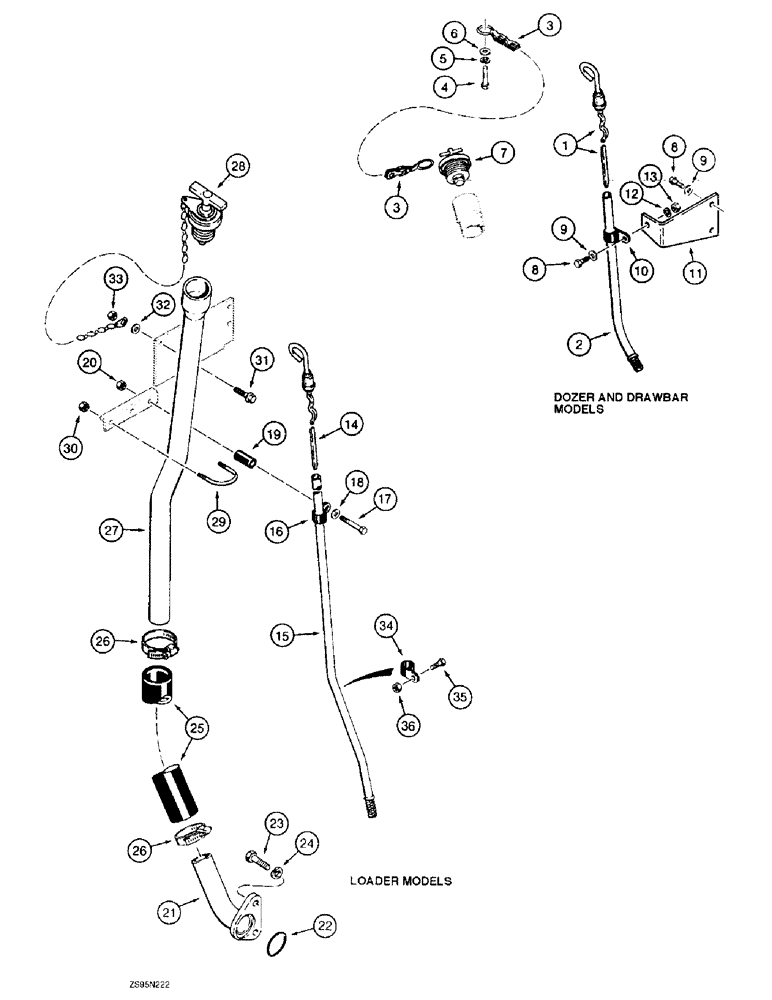

Запчасти Case 1155E (2-114) - ENG DIPSTICK & FILLER TUBE, 6-830 & 6T-830 ENG, ALL DZRS EXCEPT 62" GUAGE LONG TRACK & DRAWBAR MODEL (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
R50020
DIPSTICK
engine oil
1шт.
2
R53773
TUBE,9.52 mm OD x 307, 120 mm L
- dipstick
1шт.
3
R50297
CHAIN (CE)
CHAIN, filler cap, attach to intake manifold, if used
1шт.
4
614-8020
BOLT,Hex, M8 x 1.25 x 20mm
- hex, full threads, 8 - 1.25 x 20 mm
1шт.
5
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
1шт.
6
495-21038
WASHER,5/16"
(flat, 3/8 x 7/8 x 3/32") 5/16"
1шт.
7
L115504
CAP
oil fill tube (part of 6-830 or 6T-830 dozer engine assembly)
1шт.
8
614-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
3шт.
9
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
- flat, 11 x 21 x 2 mm
3шт.
10
515-2395
CLAMP,3/8", Insul, 3/8" Bolt
Dipstick tube retaining 3/8", Insul, 3/8" Bolt
1шт.
11
R57987
BRACKET
dipstck mounting
1шт.
12
892-11010
LOCK WASHER,M10
3шт.
13
825-1410
NUT,M10, Cl 8
1шт.
14
R47937
DIPSTICK
6t-590, engine oil, 62" guage long track dzr & loader models
1шт.
15
R47910
TUBE,0.375" OD
- dipstick, 6t-590 eng, 62" guage long track dzr & loader models
1шт.
16
515-2395
CLAMP,3/8", Insul, 3/8" Bolt
Dipstick tube retaining, 6t-590 eng , 62" gauge long track dzr & loader models 3/8", Insul, 3/8" Bolt
1шт.
17
413-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
hex, 5/16 NC x 2-1/4 inch, 6y-590 eng, 62" guage long track dzr & loader models
1шт.
18
495-21038
WASHER,5/16"
(flat, 3/8 x 7/8 x 3/32"), 6t-590 eng, 62" gauge long track dzr & loader models 5/16"
1шт.
19
R53307
HOSE
SLEEVE - rubber bolt mounting, 6t-590 eng, 62" guage long track dzr & loader models
1шт.
20
230-4215
NUT,5/16"-18, GA
NUT - hex, self-locking, 5/16 inch NC, 6t-590 eng, 62" gauge long track dzr & loader models
1шт.
21
R53750
TUBE,24 mm L
- engine oil filler, lower, 6t-590 eng, 62" guage long track dzr & loader models
1шт.
22
J906704
O-RING
sealing, oil filler tube, 6t-590 eng, 62" guage long track dzr & loader models
1шт.
23
614-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd
- hex, full threads, 12 - 1.75 x 25 mm, 6t-590 eng, 62" guage long track dzr & loader models
2шт.
24
892-11012
LOCK WASHER,M12
WASHER, LOCK, , 6t-590 Eng, 62" Gauge long Track Dzr & Loader Models M12
2шт.
25
R53715
HOSE,38.10 mm ID x 170.00 mm, SAE 20R1 Class B
Cut from 183616C1 Bulk Hose, See Below, 6t-590 Eng, 62" Guage Long Track Dozer & Loader Models 38.10 mm ID x 170.00 mm, SAE 20R1 Class B
1шт.
26
214-3132
HOSE CLAMP,1-1/4" - 2-1/8", HD Worm
CLAMP, adj, 1-1/4 - 2-1/8 inch dia,hose, 6t-590 eng, 62" guage long track dzr & loader models
2шт.
27
R52750
TUBE,1.5" OD
- engine oil filler, upper, 6t-590 eng, 62" guage long track dzr & loader models
1шт.
28
L115504
CAP
oil fill tube, includes chain, 6t-590 eng, 62" guage long track dzr & loader models
1шт.
29
L73167
U-BOLT
upper engine oil filler tube, 6t-590 eng, 62" guage long track dzr & loader models
1шт.
30
231-1444
NUT,1/4"-20, GB
NUT, LOCK, , 6t-590 eng, 62" gauge long track dzr & loader models 1/4"-20, GB
2шт.
31
121-107
SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5
6t-590 eng, 62" gauge long track dzr & loader models Hex Flg, 5/16"-18 x 1", Serr
1шт.
32
495-21038
WASHER,5/16"
(flat, 3/8 x 7/8 x 3/32"), 6t-590 eng, 62" gauge long track dzr & loader models 5/16"
1шт.
33
230-4215
NUT,5/16"-18, GA
NUT - hex, self-locking, 5/16 inch NC, 6t-590 eng, 62" gauge long track dzr & loader models
1шт.
34
515-2395
CLAMP,3/8", Insul, 3/8" Bolt
Dipstick tube, Attach to bracket on injection pump, 6t-590 eng, 62" gauge long track dzr & loader models 3/8", Insul, 3/8" Bolt
1шт.
35
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
6t-590 eng, 62" gauge long track dzr & loader models Hex, 3/8"-16 x 3/4", G5, Full Thd
1шт.
36
231-4116
NUT,3/8"-16, GB
NUT, hex, self-locking, 3/8 inch NC, 6t-590 eng, 62" guage long track dzr & loader models
1шт.
183616C1
HOSE,38.1 mm ID x 1168.40 mm, SAE 20R1
bulk, 1-1/2 (38) x 1-11/16 (43) x 46 inch (1168 mm) long, 6t-590 eng, 62" guage long track dzr & loader models
1шт.
Выбрано товаров: 37
