Запчасти Case 1155E (2-112) - ENGINE, STARTER, AND ALTERNATOR MOUNTING, FAN AND FAN BELT, 6T-590 ENG (02) - ENGINE

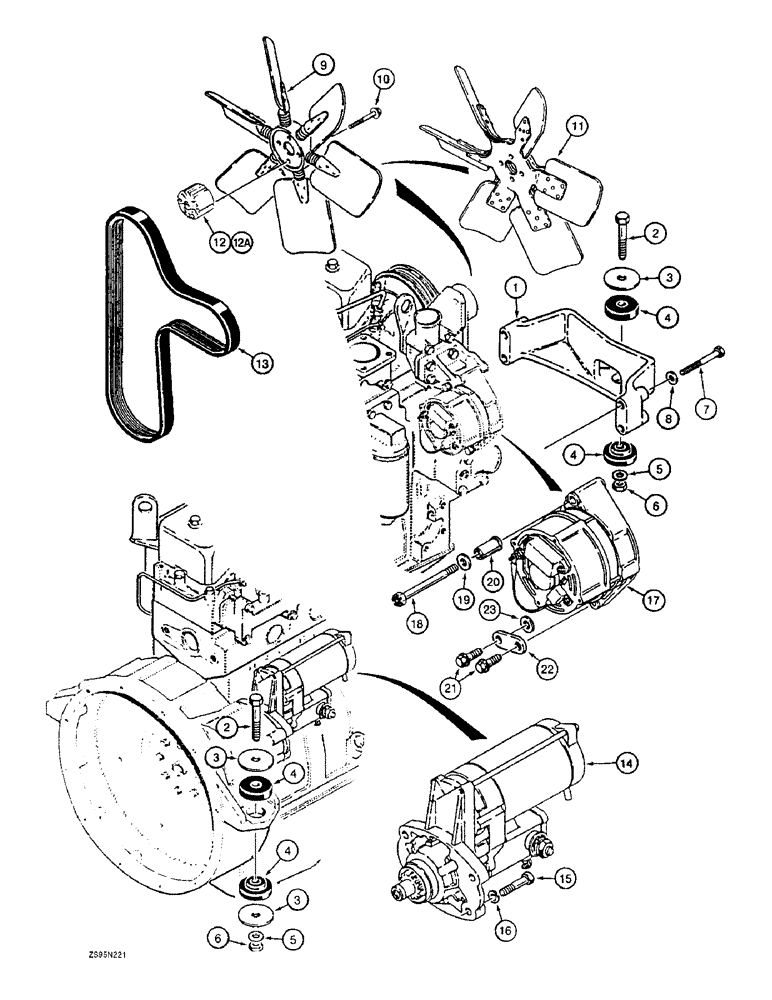

Схема запчастей Case 1155E - (2-112) - ENGINE, STARTER, AND ALTERNATOR MOUNTING, FAN AND FAN BELT, 6T-590 ENG (02) - ENGINE
20
3
2
4
12
21
7
4
13
4
1
22
23
3
9
16
19
11
12a
18
5
10
14
5
6
17
8
15
3
6
2
4

Артикул

Название

Примечание

Количество

1

A170985

BRACKET

- engine mounting, front

1шт.

2

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

3шт.

3

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

- flat, special, 5/8 inch

5шт.

4

R49921

RUBBER MOUNTING

INSULATOR - rubber, engine mounting

6шт.

5

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

3шт.

6

231-41110

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

3шт.

7

A171690

BOLT

BOLT - hex, special, 12 mm - 1.75 x 85 mm, class 10.9

4шт.

8

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

9

A173571

FAN

- reversible

1шт.

10

193426A1

BOLT

- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9, replaces regular hex head bolt and flat washer used on some models

4шт.

11

A173569

FAN

- suction, if used

1шт.

11

A173567

FAN

- pusher, if used, not shown

1шт.

12

A189318

SPACER

- fan mounting, 85 long, with 4 mounting holes, service part for A173329 spacer with 8 mounting holes used in production

1шт.

12a

A184545

SPACER

fan mounting, 43 long, loader models only

1шт.

13

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

Fan 3.56 mm W x 1574.80 mm L, 8 Ribs

1шт.

14

REF

INSTRUCTION

STARTER ASSEMBLY - 24 volt, for correct assembly and components, see Figure 4-2

1шт.

15

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

3шт.

16

892-11010

LOCK WASHER,M10

3шт.

17

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - 24 volt, 45 amperes, for correct assembly and components, see Figures 4-14 and 4-16

1шт.

18

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- hex, 10 - 1.5 x 100 mm

1шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

20

J902469

SPACER

- bolt, alternator mounting

1шт.

21

855-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 10.9

- heavy hex flange, 8 - 1.25 x 20 mm, class 10.9

2шт.

22

J903089

SUPPORT

BRACE - lower, alternator mounting

1шт.

23

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- flat, special, between alternator mounting brace and engine

1шт.
