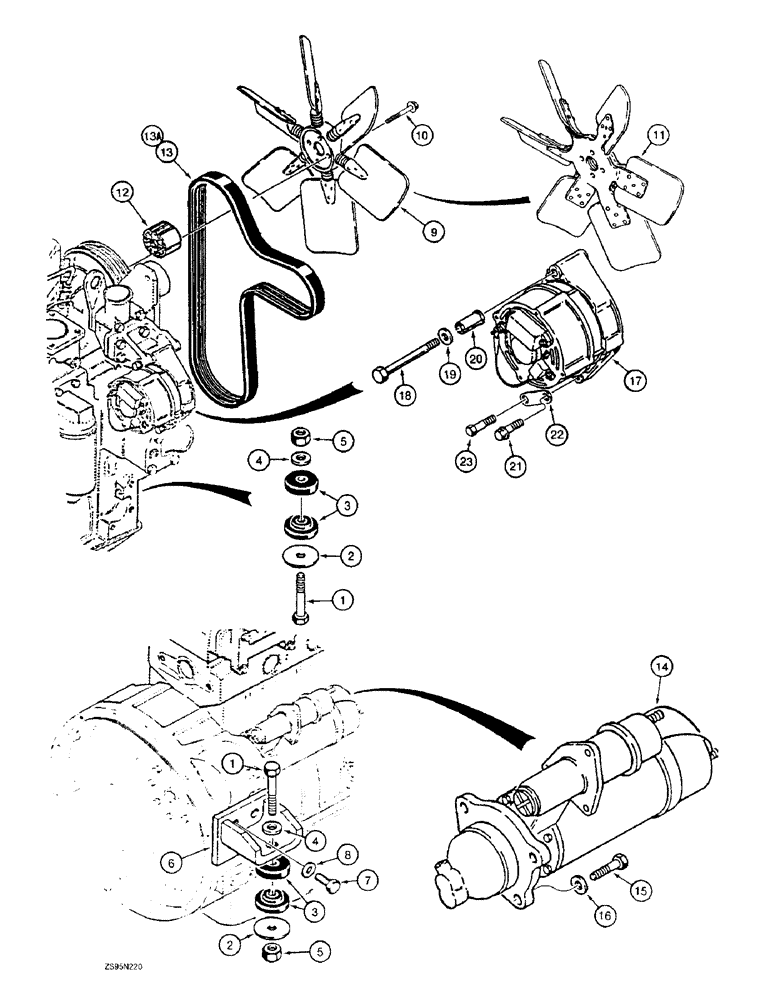

Запчасти Case 1155E (2-110) - ENG, STARTER, & ALTERNATOR MOUNTING, FAN & FAN BELT 6-830 & 6T-830 ENG ALL DOZERS EXCEPT 62" GUAGE (02) - ENGINE

1

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

3шт.

2

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

- flat, special, 5/8 inch

3шт.

3

R49921

RUBBER MOUNTING

INSULATOR - rubber, engine mounting

6шт.

4

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

3шт.

5

231-41110

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

3шт.

6

R48339

SUPPORT

BRACKET - engine mounting, rear

2шт.

7

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 40 mm

8шт.

8

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

8шт.

9

A173571

FAN

- reversible

1шт.

10

193427A1

FLANGE BOLT,M10 x 1.5 x 110mm

BOLT - heavy hex flange, 10 - 1.5 x 110 mm, class 10.9

4шт.

11

A173569

FAN

- suction, if used

1шт.

11a

A173567

FAN

- pusher, if used, not shown

1шт.

12

A189318

SPACER

- fan mounting, replaces A173333 fan spacer

1шт.

13

J911561

BELT,27.92mm W x 1663.7mm L, 8 Ribs

Fan, no Longer Used, Order Ref. 13A for Service 3.56 mm W x 1663.70 mm L, 8 Ribs

1шт.

13a

J911567

BELT,27.92mm W x 1701.8mm L, 8 Ribs

Fan, Must be Used with J913585 Bracket, Ref. 13 on Figure 2-4 3.56 mm W x 1701.80 mm L, 8 Ribs

1шт.

14

REF

INSTRUCTION

STARTER ASSEMBLY - 24 volt, for service assembly part number and parts list see Figures 4-4 - 4-12

1шт.

15

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

3шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

3шт.

17

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine, 24 volt, 45 amperes, for correct assembly and components, see Figures 4-14 and 4-16

1шт.

18

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- hex, 10 - 1.5 x 100 mm

1шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

20

J902469

SPACER

- alternator mounting

1шт.

21

855-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 10.9

- heavy hex flange, 8 - 1.25 x 20 mm, class 10.9

1шт.

22

J907673

SUPPORT

BRACE - lower, alternator mounting

1шт.

23

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

1шт.
