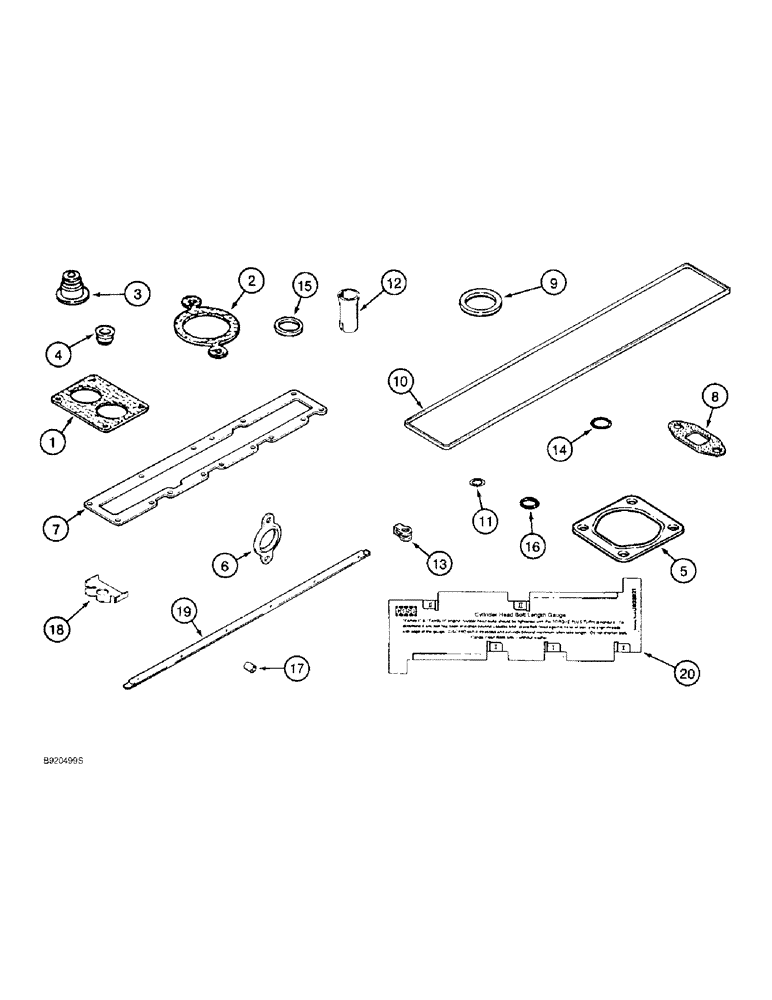

Запчасти Case 1155E (2-106) - GASKET KITS, 6-830 ENGINE, 6T-830 ENGINE, VALVE GRIND (02) - ENGINE

A77678

GASKET KIT

KIT - gasket, valve grind, prior to Engine SN 44487830, replaces A77630 and A77592 kit, no longer available, for service order A77794 kit

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Figure 2-34.

1шт.

A77794

GASKET KIT

KIT - gasket, valve grind, Engine SN 44487830 and after, Includes: Ref. 1 - 20

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Figure 2-34.

1шт.

1

J914310

GASKET,0.8mm Thk

- thermostat housing, replaces J910505

1шт.

2

J918779

GASKET,1.19mm Thk

- outlet tube, water, replaces JJ909919, J914309 and A77705

1шт.

3

J915707

SEAL

- intake and exhaust valve stem and guide, A77794 kit only

12шт.

4

J912550

SEAL

- stem, intake valve, repalces J904579, A77678 kit only

6шт.

4

J912549

SEAL

- stem, exhaust valve, replaces J904578, A77678 kit only

6шт.

5

J911941

GASKET

- mounting, turbocharger, replaces J907973

1шт.

6

J929012

GASKET,0.5mm Thk

- exhaust manifold, 0.54 mm thick, replaces J906719 and J921787

6шт.

7

J914311

MANIFOLD GASKET

- intake manifold cover, replaces J910779

1шт.

8

J914388

GASKET

- turbo oil drain tube, replaces J901805

1шт.

9

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - cap sealing, oil fill cap to valve cover

1шт.

10

J905449

SEAL,7.179mm W x 2090mm L

SEAL - valve cover

1шт.

11

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt, replaces J901837 and J282133

6шт.

12

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector

6шт.

13

J903380

SEAL

- connector, fuel injection nozzle

7шт.

14

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Connector to valve cover (Replaces J909397) -115, 70 Duro, .674" ID x .103" Thk

1шт.

15

J906659

SEAL

- injector nozzle, 7 mm injector tip

6шт.

16

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Water shutoff valve (Replaces A29197) -111, 70 Duro, .424" ID x .103" Thk

1шт.

17

J918610

HOSE,19.05 mm ID x 51.00 mm

Breather Tube to Connector, A77794 Kit Only 19.05 mm ID x 51.00 mm

1шт.

18

J914708

LOCKING PLATE

PLATE - locking, A77794 kit only

12шт.

19

J919677

TUBE

- oil, rocker arm, A77794 kit only

1шт.

20

J823921

GAUGE

- cylinder head, bolt length, A77794 kit only

1шт.
