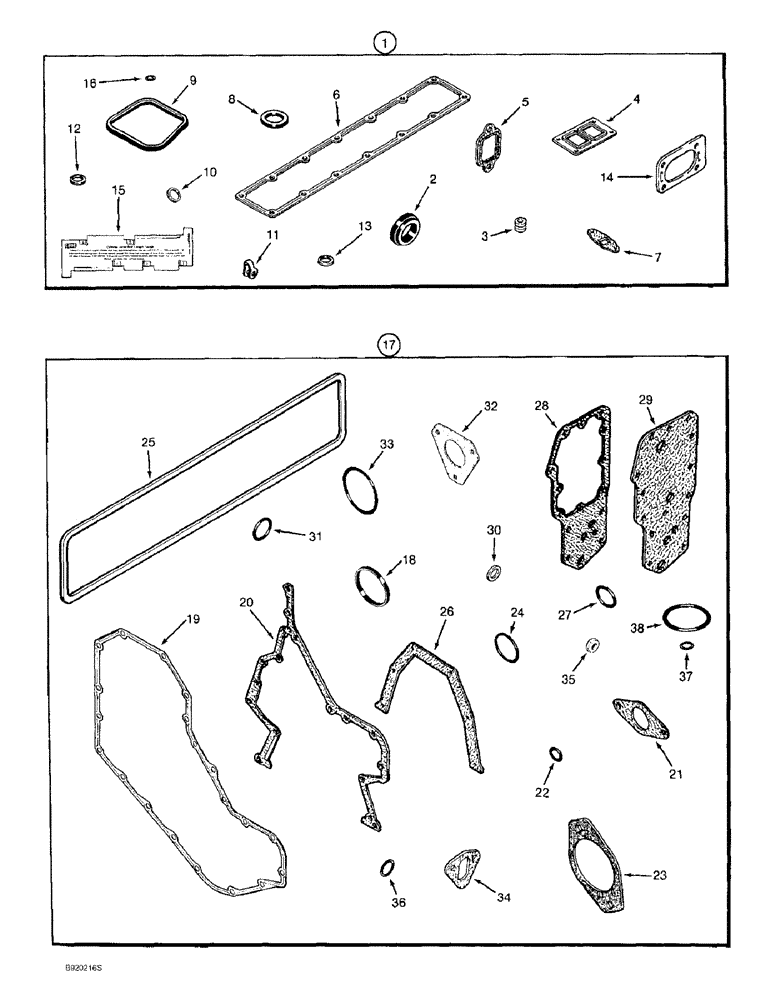

Запчасти Case 1155E (2-102) - VALVE GRIND GASKET KITS, 6T-590 ENGINE (02) - ENGINE

1

A77675

GASKET KIT

KIT - gasket, valve grind, used on 9 mm fuel injector engine, prior to Engine SN 44511034, Includes: Ref. 2 - 16

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Figure 2-32.

1шт.

1

A77793

GASKET KIT

KIT - gasket, valve grind, used on 7 mm fuel injector engine, Engine SN 44511035 and after, Includes: Ref. 2 - 16

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Figure 2-32.

1шт.

2

J923331

GASKET

- thermostat housing, replaces J903301 and J920020

1шт.

3

J901097

SEAL

- intake and exhaust valve

12шт.

4

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

6

J914029

GASKET

- mounting, replaces J907036

1шт.

7

J914388

GASKET

- turbo oil drain tube

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

1шт.

9

J902666

GASKET

SEAL - rocker arm cover

6шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt, replaces J910837 and J282133

6шт.

11

J900808

SEAL

- injector nozzle, 9 mm injector tip

6шт.

12

J903380

SEAL

- connector, fuel drain manifold tube

6шт.

13

J906659

SEAL

- injector nozzle, 7 mm injector tip, replaces J920174, A77793 kit only

6шт.

14

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING - sealing, body to nut, A77793 kit only

6шт.

15

J914856

GASKET,1.02mm Thk

- air crossover connection, A77793 kit only

1шт.

16

J823921

GAUGE

- cylinder head, bolt length, A77793 kit only

1шт.

17

A77674

GASKET KIT

KIT - gasket, cylinder block, Includes: Ref. 18 - 38

1шт.

For complete engine overhaul, order (1) each of valve grind kit, Figure 2-102, cylinder block kit, above, oil pan kit, Figure 2-28, front and rear crankshaft seal kit, Figure 2-84 and required cylinder head gasket, Figure 2-32.

1шт.

18

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover

1шт.

19

J914385

GASKET,1.02mm Thk

- front cover, front gear cover to housing, replaces J910500

1шт.

20

J916131

GASKET

- gear housing, replaces J907836 and J914384

1шт.

21

J905595

GASKET

- timing pin housing

1шт.

22

J913994

O-RING

- sealing, replaces J903927

1шт.

23

J919601

GASKET

- access cover plate, replaces A77441 and J913192

1шт.

24

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water pump -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

25

J928832

GASKET

- tappet cover, replaces J904776 and J907617

1шт.

26

J928493

GASKET

- rear cover retainer, crankshaft, replaces J901019 and J914386

1шт.

27

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID, water inlet connection, replaces J901467

1шт.

28

J926760

GASKET

- oil cooler core, replaces J904427, J914387 and J918256

1шт.

29

J929792

GASKET,1.2mm Thk

- filter head, replaces J912638 and J912532

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug, oil pan

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - 1-1/2 inch (38 mm) ID, replaces J906704

1шт.

32

J914389

GASKET

- pump mounting, replaces J905685

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel housing to block, replaces A157927

1шт.

34

J923054

GASKET

- mounting, fuel transfer pump, replaces J904044 and J914304

1шт.

35

J900267

SEAL

- cover bolt

6шт.

36

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

37

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID, fuel filter stud, replaces J903846

1шт.

38

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID, fuel filter stud, replaces J903546

1шт.
