Запчасти Case 1155E (2-092) - FLYWHEEL AND HOUSING, 6-830 ENGINE, 6T-830 ENGINE (02) - ENGINE

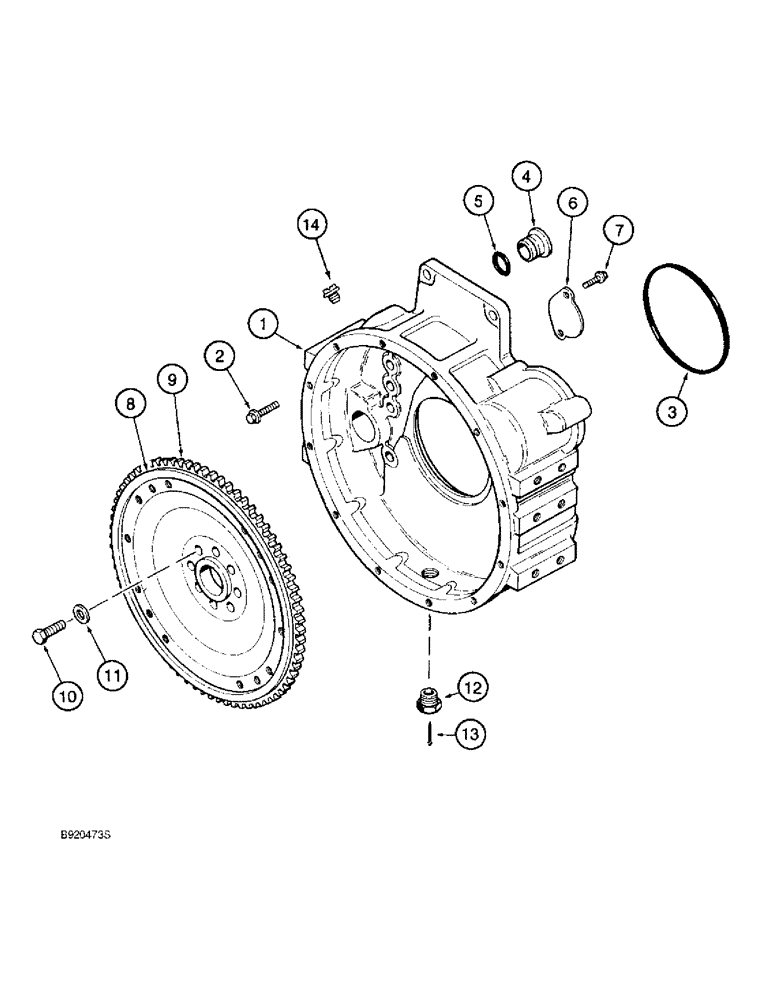

Схема запчастей Case 1155E - (2-092) - FLYWHEEL AND HOUSING, 6-830 ENGINE, 6T-830 ENGINE (02) - ENGINE
10
2
12
9
13
3
6
7
1
4
14
5
11
8

Артикул

Название

Примечание

Количество

1

J908799

HOUSING

- flywheel

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 40 mm, class 10.9, Replaces J920540 and 854-12030 bolt

12шт.

3

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel housing to block, replaces A157927 O-ring

1шт.

4

J910248

PLUG

- flywheel housing

1шт.

5

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

(Replaces A27352 and 253070R1 O-ring) -212, 70 Duro, .859" ID x .139" Thk

1шт.

6

J908095

PLATE

- cover, access

1шт.

7

J902735

BOLT,M8 - 1.25 x 21 mm

- hex flange, self tapping, 8 - 1.25 x 21 mm, plate retaining

2шт.

8

J908832

FLYWHEEL WITH GEAR

FLYWHEEL ASSEMBLY - engine, Includes: Ref. 9

1шт.

9

J905427

GEAR

- ring, flywheel

1шт.

10

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.

11

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, special

8шт.

12

L113178

PLUG

BUSHING - reducer, 3/4 inch PT, flywheel housing

1шт.

13

32-1416

COTTER PIN,7/32" x 1"

PIN, SPLIT (COTTER), 7/32" x 1"

1шт.

14

353-225

PLUG,Sltd Hd, 3/4"-16

- slotted hex, 3/4 inch NF

1шт.

Выбрано товаров: 14
